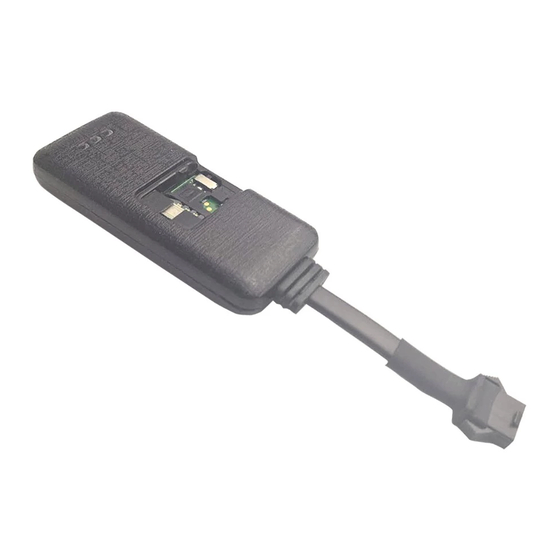

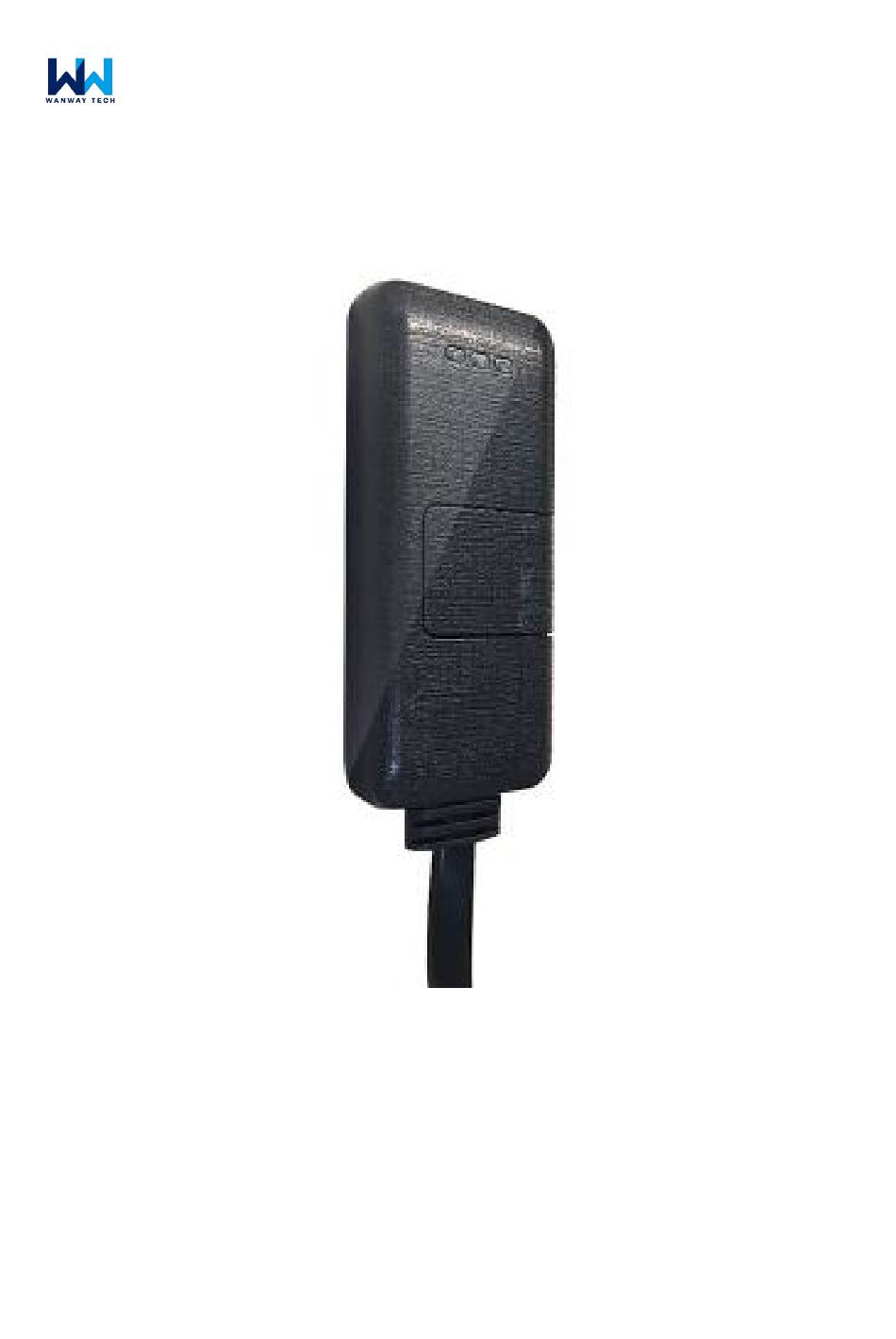

- Page 1 GPS Tracker Instruction EV02 Please view this manual carefully to make sure correct installation and use.
- Page 2 01/ Product Features 02/ Terminal Description 2.1 Wiring instruction Color Wiring Positive (9-90V) Black Negative Orange ACC line Yellow Relay 2.2 Red LED light (Power Supply Status) Status Meaning Slow Blink Normal (Internal Battery Supply) Light Normal(External Power Supply) Broken or Sleeping...
- Page 3 2.3Yellow LED light (GSM Status) Status Meaning Quick Blink Searching GSM Signal Slow Blink Normal Working GSM Searching Failed or Sleeping 2.4 Blue LED light (GPS Status) Status Meaning Quick Blink Searching GPS Signal Slow Blink Normal Working GPS Searching Failed or Sleeping 03/ Installation 3.1 Red line connect battery positive pole(+),black line connect battery negative pole(-).
- Page 4 (4)Connect “Speed control lines” with relay’s two green line. Note: 1).Please use appropriate relay, normally electric bike suit 5V relay, car suit 12V relay. 2).Open SIM card cover, insert SIM card and turn on battery supply. 3).SIM card must have GPRS data and SMS service. 4).Please Turn on battery supply.
- Page 5 5.3 Yellow LED(GSM) and blue LED(GPS) will blink quickly when searching signal. 5.4 When device is working normally, Yellow LED(GSM) and blue LED(GPS) will blink slowly. 06/ Battery use safety 6.1 Please don’t make battery short circuit. 6.2 Please bend or open battery. 6.3 Please don’t put battery into water or fire.
