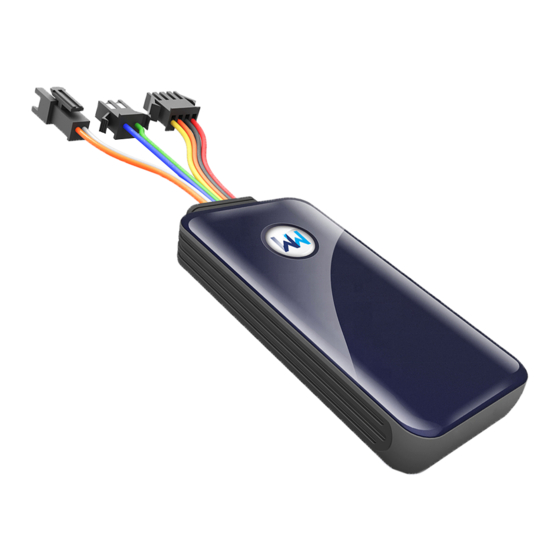

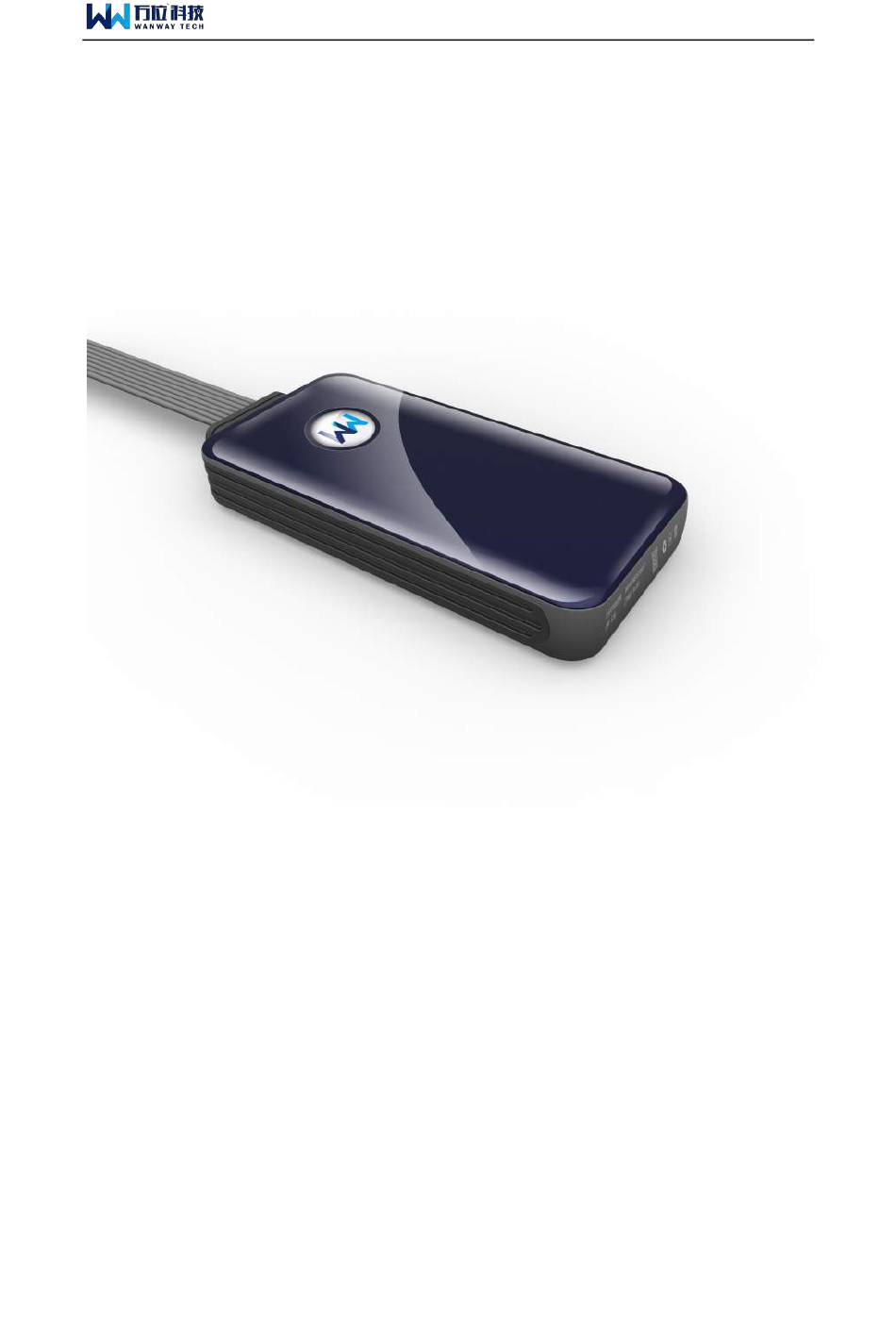

- Page 1 Wired GPS Tracker G19S G19S User Manual...
-
Page 2: Table Of Contents
Wired GPS Tracker G19S Content 1．Product Overview and Appearance ..................3 1.2 Product Overview......................3 2 Product Parameters & Functions ................... 4 2.1 Product Parameters ....................4 2.2 Product Functions .......................5 3 Product Installation ......................... 6 3.1 Installation Procedure ....................6 （1） check device ....................6 （2）... -
Page 3: 1．Product Overview And Appearance
Wired GPS Tracker G19S 1. Product Overview and Appearance 1.1 Product Overview Product Name: G19S Product Type: wired Product Size: 80.7mm*40mm*13mm 1.2 Product Appearance 1.2 Product Appearance G19S... -
Page 4: Product Parameters & Functions
Wired GPS Tracker G19S 2 Product Parameters & Functions 2.1 Product Parameters Item Name Specification Size 80mm（L）*40mm（W）*13mm（H） Weight Main Features Battery 240mAh MT2503D Hot<2sec (Open Sky) GPS Fixed Time Warm<15sec Cold<38sec(Open Sky) Positioning Accuracy 5~10m GPS Frequency 850/1900/900/1800MHz... -
Page 5: Product Functions
Wired GPS Tracker G19S 2.2 Product Functions ACC Detection Geo-fence Low Battery Alarm Geo-defense Movement Alarm Remotely Stop Engine SOS Emergency Cut-wire Alarm Voice Monitoring Vibration Alarm... -
Page 6: Product Installation
Wired GPS Tracker G19S 3 Product Installation 3.1 Installation Procedure (1)Check device Check the device if it's completed. (2) Insert into sim card This device should be inserted into a sim card wich support 2g gsm network.(3) Connect Wires and Switch on. -
Page 7: 4） Stop Engine
Wired GPS Tracker G19S Line Connections to positive power(9-90V) Black to Negative Power Orange to ACC line Yellow to relay a. Red wire to the positive power(+) of vehicle battery, black wire to the negative power(-) of the battery. b. Device ACC line connect to the acc line of car. -
Page 8: 5） Led Indicators
Wired GPS Tracker G19S (5) LED Indicators Red LED Light(Power/work condition) State Meaning normal work(battery supply power) Slow blinking normal work(Vehicle supply power) light on ligh off device problem or in sleeping Yellow LED Light(GSM Signal Light) State Meaning GSM initialize... -
Page 9: Access To Platform
Wired GPS Tracker G19S 3.2 Access to Platform (1) Platform(www.wanwaygps.com) (2) Android and IOS APP(Scan the qr code to download app) There are two methods to login in the platform or app. a. Login by imei number(the 15 digitals in the back of device), password: the last 6 digtals of imei number. -
Page 10: Precautions
Wired GPS Tracker G19S 5 Precautions 5.1 installation precautions GPS Tracker should be hidden to install, please contact the supplier for professional instalation. Precautions: 1) Hidden installation, avoid water. 2) Ensure the led side on the front and no metal shield.
