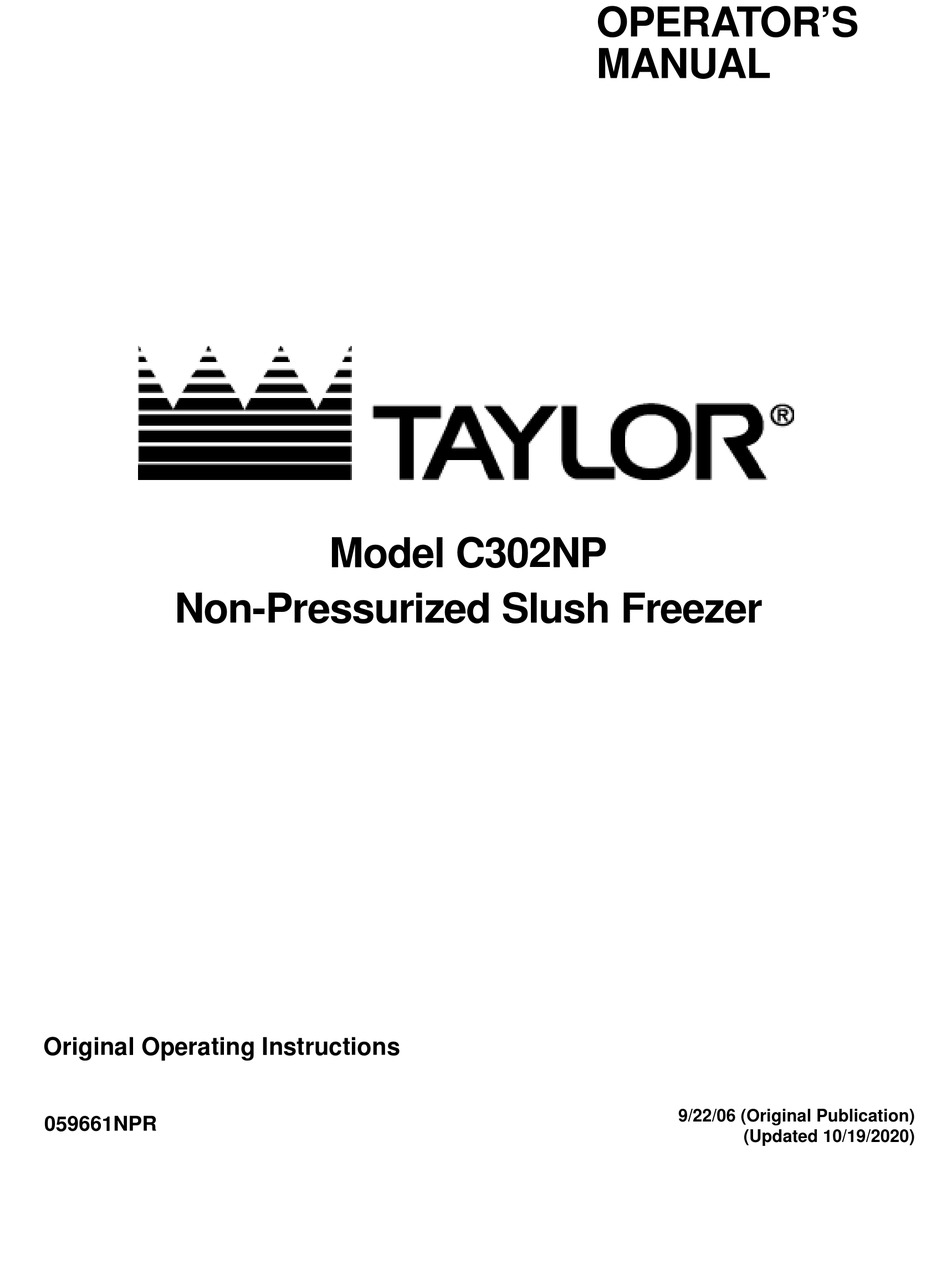

Non-Pressurized Slush Freezer
Original Operating Instructions
059661NPR
Model C302NP
OPERATOR'S 
MANUAL
9/22/06 (Original Publication)
(Updated 10/19/2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C302NP and is the answer not in the manual?

Questions and answers

Related Manuals for Taylor C302NP

Summary of Contents for Taylor C302NP

  • Page 1 OPERATOR’S  MANUAL Model C302NP Non-Pressurized Slush Freezer Original Operating Instructions 9/22/06 (Original Publication) 059661NPR (Updated 10/19/2020)
  • Page 2 Only instructions originating from the factory or its authorized translation representative(s) are considered to be the original set of instructions. © 2006 Taylor Company 059661NPR Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be...

  • Page 3: Table Of Contents

    C302NP.........
  • Page 4 Table of Contents Section 6: Operating Procedures Assembly ............6-1 Sanitizing .

  • Page 5: Section 1: To The Installer

    104°F (40°C) at reduced capacities. ® of Taylor machines. • Only Taylor service personnel should perform installation, maintenance, and repairs on Taylor WARNING! This machine must NOT be machines. installed in an area where a water jet or hose can be •...

  • Page 6: Air-Cooled Units

    TO THE INSTALLER Air-Cooled Units having the unit cut out the low water pressure switch. A booster pump must be provided if this pressure is not Do not obstruct air intake and discharge openings. available. Air-cooled units require a minimum of 3 in. (76 mm) of air Note: Water lines beyond 200 ft.
  • Page 7 TO THE INSTALLER the existing local codes. Please contact your local authorities. To the Installer Model C302 NPR...

  • Page 8: Beater Rotation

    • If the supply cord is damaged, it must be Compliance therewith and proper maintenance will result replaced by a Taylor service technician to avoid in an installation essentially free from hazard. The NEC is a hazard. a United States regulatory agency. International users •...

  • Page 9: Refrigerant

    If burns are severe, apply ice packs and contact a physician immediately. NOTICE! Taylor reminds technicians to be aware of government laws regarding refrigerant recovery, recycling, and reclaiming systems. If you have any questions regarding these laws, please contact the factory service department.
  • Page 10 TO THE INSTALLER To the Installer Model C302 NPR...

  • Page 11: Section 2: To The Operator

    It should also be noted that Taylor does not warrant the incorrect refrigerant were installed in the unit, system refrigerant used in its equipment. For example, if the...
  • Page 12 To find out the current status of an alternate refrigerant as alternates. Should a new refrigerant alternate prove it relates to your compressor warranty, call Taylor or your through Taylor's testing that it would be accepted as a local authorized Taylor distributor. Be prepared to provide drop-in replacement for this unit, the disclaimer in this the model/serial number of the unit in question.

  • Page 13: Section 3: Safety

    Safety Section 3 We at Taylor are concerned about the safety of the operator when he or she comes in contact with the freezer and its parts. Taylor has gone to extreme efforts to design and manufacture built-in safety features to WARNING! Avoid injury.
  • Page 14 The scraper blades are very sharp. Failure to follow these instructions may result in electrocution. Contact your local authorized Taylor Failure to follow these instructions can result in personal distributor for service. injury or damage to the machine.
  • Page 15 SAFETY instruction can result in damage to the unit. Do not obstruct air intake and discharge openings: Air- cooled units require a minimum of 3 in. (76 mm) of air space on both sides, 3 in. (76 mm) at the rear and 12 in.
  • Page 16 SAFETY Notes: Safety Model C302 NPR...

  • Page 17: C302Np

    Operator Parts Identification Section 4 C302NP 30005_A Figure 4-1 Item Description Part No. Item Description Part No. Panel-Side Left 059721 ANEL-Front-Lower 059652 Panel-Rear 059657 Shelf-Drip Tray 059653 Panel-Side Right 059722 Tray-Drip 059654 Display-LED 15.4"Tall 068575 Shield-Splash 059659 Panel-Front-Upper 068909 Switch-Rocker SPST OFF-ON...

  • Page 18: Beater Door Assembly

    OPERATOR PARTS IDENTIFICATION Beater Door Assembly Figure 4-2 Item Description Part No. Item Description Part No. Door A.-Slush-SLFCLOSE- 1a-1i Gasket-Door 5.109ID X 5.63 014030 Ice Buster Bearing-Front 013116 Buster-Ice 047735 Beater A.-7QT-1 Pin X46233 Spring-Comp 030344 Blade-Scraper 084950 Pin A.-Valve Handle X83812 Shaft-Beater 036412...

  • Page 19: Accessories

    OPERATOR PARTS IDENTIFICATION Accessories Apply the appropriate Taylor approved food safe lubricant. Figure 4-3 Item Description Part No. Item Description Part No. Pail-10 qt 013163 Brush-Draw Valve 1-1/2”OD 014753 Brush A.-Package X64275 Kit A.-Tune Up X56829 Brush-Mix Pump Body-3”X7” 023316...
  • Page 20 OPERATOR PARTS IDENTIFICATION Notes: Operator Parts Identification Model C302 NPR...

  • Page 21: Section 5: User Interface

    To better communicate in the international arena, Control Switch - Left Side symbols have replaced words on many of our operator switches, function, and fault indicators. Your Taylor Control Switch - Right Side equipment is designed with these international symbols.

  • Page 22: Control Switches

    USER INTERFACE Control Switches MODE There are two control switches located at the top left SYRUP corner of the upper front panel, behind the illuminated display. The left switch controls the two freezing cylinders on the left side of the unit. The right switch controls the two freezing cylinders on the right side of the unit.

  • Page 23: Operator Menu Display

    USER INTERFACE Operator Menu Display Table 5-1 The operator menu is used to enter into the operating Fault Messages screens. To access the operator menu, simply press the Beater Overload Beater is out on overload. menu (SEL) key. The cursor will flash under the letter A, Chk Refrig Sys Psi Compressor is out on high head indicating that this is screen A.
  • Page 24 USER INTERFACE FAULT DESCRIPTION FAULT DESCRIPTION L: CO2 PRESSURE LOW L: CHK REFRIG SYS PSI R: CO2 PRESSURE LOW R: CHK REFRIG SYS PSI + + + + + + O PRESSURE LOW—When the water out THERMISTOR SHORT—One or both of the barrel indicator displays a lack of water, a 60 second (freezing cylinder) thermistor probes are faulty.
  • Page 25 USER INTERFACE Not Cooling. This fault requires the operator to press the OFF (<- -) key (when in the Fault Description MANUAL DEFROST screen) in order for the fault to discontinue. To see if there is more than one fault in either <...
  • Page 26 USER INTERFACE SYSTEM INFORMATION DEFROST TIME RIGHT LANGUAGE CYCLE 1 10:00 VERSION 1.09 ENGLISH 446 + + + - - - The fourth feature will display the power saver mode, OFF, REST, or STANDBY status. DEFROST TIME RIGHT CYCLE 1 10:00 If the power saver mode is OFF, the following screen will be displayed.

  • Page 27: Syrup Out Indicator

    USER INTERFACE OPERATOR MENU 10/25/06 A B C D E F G H I SERVICE MENU <- - - -> + + + - - - < > - Press the AUTO (- ->) key to move to the next Syrup Out Indicator screen.

  • Page 28: Co2 Out Indicator

    USER INTERFACE Out Indicator Product Light When the light is continuously lit (not flashing), it indicates that there is an OUT condition for syrup, water, AUTO MODE AUTO SYRUP or CO When the light is flashing, it indicates that the product is not at serving viscosity.

  • Page 29: Section 6: Operating Procedures

    Note: When lubricating parts, use an approved food grade lubricant (example: Taylor Lube HP). 1. Slide the O-ring into the first groove on the drive shaft. Lubricate the groove, the O-ring, the area where the boot seal snaps onto the drive shaft, and...
  • Page 30 5. If the blades are in good condition, place the rear scraper blade over the rear holding pin (knife edge to Apply the appropriate Taylor approved food safe lubricant. the outside). Holding the blade on the beater, turn it over and install the front blade the same way.
  • Page 31 101604 Apply the appropriate Taylor approved food safe lubricant. Figure 6-7 11. Turn the door upside down. Insert the draw valve spring.
  • Page 32 OPERATING PROCEDURES 14. Move the draw handle to the forward position to allow 16. Move the draw handle to the back position to lock the installation of the ice buster. ice buster in place. 101606 101608 Figure 6-11 Figure 6-13 15.
  • Page 33 21. Place the large rubber gasket into the groove on the back side of the freezer door. Figure 6-15 101601 19. Place the O-ring onto the prime plug and lubricate. 11145 Apply the appropriate Taylor approved food safe lubricant. Figure 6-18 Figure 6-16 Operating Procedures Model C302 NPR...

  • Page 34: Sanitizing

    OPERATING PROCEDURES 22. Slide the white, plastic front bearing onto the bearing 24. Position the baffle arm by inserting it down into the hub, making sure that the flanged end of the bearing hole on the baffle assembly which protrudes from the is resting against the freezer door.
  • Page 35 OPERATING PROCEDURES 1. Open the lighted display door. Place the control 4. Connect the syrup line to the syrup line connector switch in the ON position. that was cut from the syrup bag. 13092 17041 Figure 6-22 Figure 6-24 2. Prepare a pail of approved 100 PPM sanitizing 5.
  • Page 36 OPERATING PROCEDURES 7. Press the menu (SEL) key. Move the cursor under 12. Press the BEATER (- - -) key. Agitate the solution in the word SANITIZE by pressing the OFF (<- -) key. the freezing cylinders for five minutes. 13039b RINSE / SANITIZE RINSE...

  • Page 37: Priming/Brixing

    OPERATING PROCEDURES Priming/Brixing 6. Slowly move the syrup sampling valve to the fully open position by turning the handle down toward the 1. Connect the syrup line to the Bag-in-Box (BIB) syrup. sampling line. Allow the liquid to run into a pail until 2.
  • Page 38 OPERATING PROCEDURES 8. Stir the finished product. Pour a small amount of 11. Once the proper brix has been achieved, turn the product over the refractometer. The brix reading handle up to allow product to flow to the mix tank. should register 13 to 14.

  • Page 39: 120 Day Closing Procedure

    OPERATING PROCEDURES 16. Close the illuminated display when complete. 2. When all the product has been drained from the Replace the panels and the hood, and attach with freezing cylinder, close the draw valve and press the screws. Install the front drip tray and the splash OFF (<- -) key.

  • Page 40: Cleaning

    OPERATING PROCEDURES 3. Pressing the menu (SEL) key will give you the option 3. To place the left freezing cylinder in the Sanitize for rinsing the left freezing cylinder. Move the cursor mode, press the menu (SEL) key. Move the cursor by under the word YES.

  • Page 41: Disassembly

    OPERATING PROCEDURES 7. Press the BEATER (- - -) key to agitate the solution in available for brush cleaning. each freezing cylinder for five minutes. 2. Return to the freezer with a small amount of cleaning solution. With a single-service towel, wipe clean the 13039b rear shell bearing surface.
  • Page 42 OPERATING PROCEDURES 6. Remove the ice buster and prepare to remove the draw handle. Important! The draw valve is under pressure from the spring. Apply downward pressure on the draw valve while removing the draw handle. After the draw handle is removed, slowly release the pressure on the draw valve.

  • Page 43: Section 7: Operator Checklist

    Disconnect the freezer from the main power source to prevent possible electrical damage. rear shell bearing and the female hex drive socket clean and free of lubricant and product Your local Taylor distributor can perform this service for deposits. you. ...
  • Page 44 OPERATOR CHECKLIST Notes: Operator Checklist Model C302 NPR...

  • Page 45: Section 8: Troubleshooting Guide

    Troubleshooting Guide Section 8 Table 8-1 Page Problem Probable Cause Remedy Ref. 1. Product is too stiff. a. Too much water to syrup ratio. a. Adjust the brix accordingly. 6-10 Improper brix adjustment. b. Consistency control needs b. Contact a service technician. - - - adjustment.
  • Page 46 Lubricate properly. from door spout. valve O-rings. b. Wrong type lubricant on draw valve b. Use food grade lubricant (example: O-rings. Taylor Lube HP). c. Worn or missing draw valve c. Replace or install O-rings on draw 6-3/9-1 O-rings. valve.
  • Page 47 Parts Replacement Schedule Section 9 Table 9-1 Part Description Every 3 Months Every 6 Months Annually Scraper Blade Drive Shaft Seal Drive Shaft O-Ring Freezer Door Gasket Draw Valve O-Ring Front Bearing Prime Plug O-Ring Black Bristle Brush, 1 in. x 2 in. Inspect and replace if Minimum necessary.
  • Page 48 PARTS REPLACEMENT SCHEDULE Notes: Parts Replacement Schedule Model C302 NPR...
  • Page 49 LIMITED WARRANTY Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured part, at Taylor’s option, to replace the failed defective part at no charge for the part.
  • Page 50 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
  • Page 51 Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no charge for the Part.
  • Page 52 Taylor. 5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any release sheets and clips for the Product’s upper platen assembly.
  • Page 53 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
  • Page 54 LIMITED WARRANTY ON PARTS Notes: 11-4 Limited Warranty on Parts Model C302 NPR...
