King Pigeon S270 User Manual
Hide thumbs Also See for S270:

Advertisement

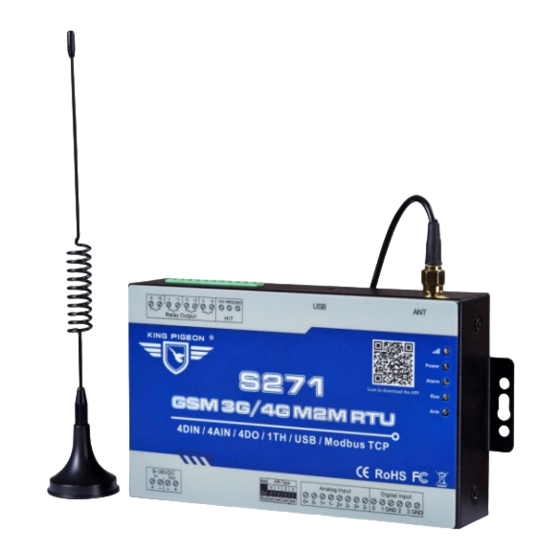

4G Cellular
IoT M2M RTU
S270/S271
User Manual
Ver 3.4.1
Date Issued: 2020-08-18
King Pigeon Hi-Tech. Co., Ltd.
www.iot-solution.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S270 and is the answer not in the manual?

Questions and answers

Summary of Contents for King Pigeon S270

  • Page 1 4G Cellular IoT M2M RTU S270/S271 User Manual Ver 3.4.1 Date Issued: 2020-08-18 King Pigeon Hi-Tech. Co., Ltd. www.iot-solution.com...
  • Page 2 8. Device SMS Command and SMS APP........................38 9. Device GPRS/3G/4G Communication Protocol....................42 9.1 Device Networks Topology.......................... 42 9.2 Communication Networks...........................42 S270/S271 RTU I/O Register List and Function Code................43 Page 2 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 3: Working Principle

    12. Cellular Module Upgrade ............................ 53 13. Warranty................................53 This handbook has been designed as a guide to the installation and operation of S270~S271 GSM/SMS/GPRS/3G/4G Cellular IoT M2M RTU Statements contained in the handbook are general guidelines only and in no way are designed to supersede the instructions contained with other products.
  • Page 4 Set parameters according to the manual, IO input and output wiring specifications, logic judgment and control, RS485 serial port expansion and application, equipment and configuration software and cloud platform server communication parameter settings, etc. Page 4 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 5 1. Add IO internal schematic block diagram and wiring 2020.8.03 V3.4 V3.4 2. Modify mqtt parameter settings 1.Modify preparation step error before 2020.8.18 V3.4.1 V3.4.1 configuration Model List Model Relay SD Card Extend I/O tags/Mapping registers Port Page 5 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 6: Brief Introduction

    4/2 digital inputs, 4/2 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4/2 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity. It can monitoring and operates the I/O Page 6 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 7: Safety Directions

    RTU X1; AC/DC Adaptor X1; GSM/3G/4G Antenna X1;User Manual X1; PC Configurator X1 . Note: The package does not include any SIM card. Optional: 35mm Standard DIN rail fixed Bracket Page 7 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 8: Mainly Features

     Support SMS, dial, GPRS, 3G , 4G network for alert, USB port for configuration and upgrade firmware;  Inbuilt large capacity rechargeable backup battery, alert when external power failure,standby time is 5 hours;  Support TCP/UDP,MQTT, Modbus TCP, Modbus RTU over TCP, King Pigeon IoT RTU protocol and data transparent transmission function;...
  • Page 9 External antenna SMA Antenna interface, 50 Ohm, Gain: 3dB Serial Interfaces 1 USB Port SMS, GPRS UDP,TCP, MQTT,Modbus RTU over TCP and King Pigeon RTU Protocols protocol. 2/4 Digital input, NC/NO type, All can be used as Pulse Counters; DI0 as a high-speed pulse counter, sampling frequency: 1MHz;...
  • Page 10: Led Indicator Definition

    RTU status indicator, LED ON when switched RTU on.. Cellular network indicator. When 2G register network, off 2 seconds, on 0.5s and so on; When 3G 4G register network, on 2s, off 0.5s...Flicks quickly means data Page 10 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 11: Interface Definition

    If not use this channel then no matter is 0/V/mA upside or downside. Switch it to upside stands for the 1 analog input should connect to 0~5V voltage output Page 11 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 12 The 1st Channel Solid Relay Output. + stands for positive electrode, - stands for negative 0+/0- electrode. The 2 Channel Solid Relay Output. + stands for positive electrode, - stands for 1+/1- ~ 3+/3- negative electrode. Page 12 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 13 Cellular IoT M2M RTU S27X wiring diagram AI internal interface principle block diagram DI internal interface Principle block diagram : DO internal interface Principle block diagram : S27X Wiring: Page 13 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 14: Settings & Operation

    PC Configuration through USB cable, and upgrade firmware by USB port. The GSM SMS GPRS 3G 4G Cellular IoT M2M RTU also can be configured some basically parameters by SMS Commands, please refer to SMS Page 14 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 15: Start To Configure

    XP or Windows 7 or Win8/Win10, please see the below photo. Also, the driver for different OS can be downloaded from Silicon Laboratories, Inc. http://www.silabs.com , the model is CP210x. Page 15 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 16 USB Driver installation failure; USB Cable connection is disconnected; The DIP Switch in RUN mode, not in SET mode; The Upgrade Firmware Switch at Load side, not at Work side. Page 16 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 17 Power light on, panel Power switch to ON; can't work 2. SD card fall out from the slot. Solution: Shake panel to listen if there is voice or Page 17 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 18 Load Configuration file: Click it to load additional configuration file to the Configurator; Export Configuration file: Click it to save the present configuration parameters as a profile for next RTU Page 18 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 19: Basic Settings

    1. After setting or revising parameter, need to click the "Save" button of this page, then click "Save Settings" in menu for saving parameters in device 2. Before S270/S271 export configuration, need to read Slaves configuration details first, to avoid Slaves information missing. 3.Easy way to revise parameter: Open parameter setting page---->Click "Read" button to get device current value ---->Revise and click "Save"...
  • Page 20 Synchronous device time: This is to setup the RTU’s time for daily report or other timers. After click Write the RTU Time, the RTU will be synchronous the same time as the PC. If connect to King Pigeon Cloud Server, no need this step.
  • Page 21: Output Settings

    Output Settings This page is to setup the Output parameters and definite the output usages. The outputs will be used in the Interlock Page for programmable logic events. Page 21 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 22 Close Time: Stands for the relay close and last time, default 0 second, means always close. Repeat Times: Stands for how many times does this relay should to repeat. Interval Time: Stands for interval how many seconds then the relay repeat the action again. Page 22 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 23 Settings(If access the cloud platform, no need to set) Note:When accessing the cloud platform, no need to set [Alarm SMS Content], [Restore SMS Content], Displacement SMS Content], [Interval Pulse Alarm Content] and [Total Pulse Count Alarm] Page 23 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 24 "Initial Value". Under Arm or 24hr status, will call and SMS to authorize number. Interval Alarm SMS: When interval alarm, will send this SMS to authorize number. Total Alarm SMS: When arrive total max value, will send this SMS to authorize number. Page 24 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 25 This page is to setup the analog input alarm conditions and analog input parameter. AIN can be used for monitoring temperature, current, voltage, power factor, water level, pressure, environment, wind speed... And also one channel temperature and humidity transducer can be connected as below: Page 25 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 26 Maximum: The transducer’s maximum measure range. E.g.:100 Celsius degree. Usually it can be found out at the transducer’s specification. Minimum: The transducer’s minimum measure range. E.g : -50 Celsius degree. Usually it can be found out at the transducer’s specification. Page 26 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 27: Timer Settings

    Tick it stands for enable this timer event: Reminder: When GPRS/3G/4G data transmission protocol is King Pigeon IoT RTU Protocol, the periodically auto upload default enable and upload every 5 minutes. Tick stands for enable this timer function, otherwise is disable.
  • Page 28: Network Settings

    2) Modbus TCP Protocol, commucation with upper computer system. For example, connect to www.my-m2m.com cloud server. Domain: modbus.dtuip.com, Port: 6655. 3 ) MQTT Protocol,connect to www.my-m2m.com cloud server. Domain: modbus.dtuip.com, Port: 6655. Page 28 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 29 GSM/SMS/GPRS/3G/4G Cellular IoT M2M RTU Note:If connect to KPIIOT or my-m2m cloud,only need ask King Pigeon sales for log in message,other part no need fill,keep as default. Communication Protocol: "Disable", "Modbus RTU protocol", "IoT RTU protocol" or "Modbus TCP protocol"...
  • Page 30 "Periodically Timer" page. For historical record, once it full, will automatically remove the earlier records for new records. And can save as CS format for other purpose usage. Page 30 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 31: Example Of Applications

    "Read the computer time"---->Then click "Write the RTU time" for device time setting. At the same time, tick "√" for "Arm automatically when power on", then click "Save" button as below: Page 31 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 32 1~2 min after SIM card register network, power on SMS should be received---->The cut the external power, the power lost SMS should be received---->Connect the power support to device again, then power recovery SMS should be received. Thus, the device communication self-checking finished. Page 32 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 33 SMS"---->"Maximum": 100, "Minimum": -40, "Threshold High": 35, "Threshold Low": 20, "Verify Time": 2. If still need recovery alarm SMS, then need to tick "Recovery Alarm", and write content in "Recovery Page 33 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 34 SMS to authorize number "0" , remember to click "Save" as below: (6) Switch device off; (7) Switch DIP mode to "Run", working mode as below: Page 34 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 35 0, 0 means always close. Click "Save" button as below: (4) In "AIN Trigger Setting" page, set temperature type "Enable"---->Humidity and AIN0~7 choose "Disable" if not use---->Set corresponding alarm SMS content---->Threshold high: 38 and Threshold low: 25---->Recovery Page 35 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 36 25 ℃ , device will open DO0 to close the fan automatically---->Click "Save" button as below: (6) Switch device off; Page 36 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 37 When Communication Data as "Modbus TCP Protocol", then server IP/DNS should be: modbus.dtuip.com, port is 6655, pls contact King Pigeon Sales for "Login Message Writing"; When Communication Data as "King Pigeon RTU/Definition Protocol", then server IP/DNS should be: rtu-m2m.com , port is 8001, pls provide device IMEI to King Pigeon Sales.
  • Page 38 The IOS APP search "M2M RTU" or click to download link (IOS 7.0 version or above support): https://itunes.apple.com/us/app/gsm-3g-m2m-rtu/id1095288504?l=zh&ls=1&mt=8 Or can scan QR code below: SMS APP interface as below: Page 38 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 39 2015-05-22 15:20:30W01, the W01 stands for Monday, W07 stands for Sunday. SMS Command Return SMS Content password+Dxxxx-xx-xxTxx: xx: xxWxx xxxx(Y)XX(M)XX(D)xx(H)X(M)xx(W) 6) Inquiry Current Status SMS Command SMS Command Return SMS Content password+EE Armed/Disarmed Model: Version: Page 39 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 40 AINy: Low:xxx, High:xxx. Delete Threshold password+AINR+ channel number+DEL Set AIN measurement password+AINM+ channel number+Lxxx+Hxxx AINx: Min:xxx,Max:xxx range Inquiry measurement password+AINM+ channel number<nnnnnnnn> AINx: Min:xxx, Max:xxx. range AINy: Min:xxx, Max:xxx. Page 40 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 41 15)GPRS Online SMS Command Return SMS Content password+GPRSonline GPRS always online 16)Delete Historical Data SMS Command Return SMS Content password+HISDEL Delete all historical records 17)Clear/Inquiry Pulse Counter Value Page 41 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 42: Communication Networks

    9. Device GPRS/3G/4G Communication Protocol Device can connect to Cloud and SCADA via GPRS/3G/4G network, support Transparent Transmission, Modbus RTU over TCP, Modbus TCP and King Pigeon RTU protocol. User also can connect device to third party cloud or server.
  • Page 43 GSM/SMS/GPRS/3G/4G Cellular IoT M2M RTU S270/S271 RTU I/O Register List and Function Code Read Input Coil (Function Code 02: Read Coil) Register Address Definition Description (Decimal) DIN0 value, when dry contact, NC=1, NO=0; When wet RTU DIN0 contract, 0~0.5V=1, 3~24V=0 DIN1 value, when dry contact, NC=1, NO=0;...
  • Page 44 Write 1 to clear DI1 count 260(bit2) DI2 Count clear bit Bool Write 1 to clear DI2 count Bool Write 1 to clear DI3 count 260(bit3) DI3 Count clear bit Page 44 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 45 If users need device send alarm data, or timely send data to server, can choose this communication protocol. Set "Communication Data" in "Cellular network setting" page, need to choose "King Pigeon RTU/Definition protocol", "Protocol" choose TCP, set the Domain/IP/Port of connecting server, other parameter setting according to server.
  • Page 46: Modbus Tcp Protocol

    (2) In "Cellular network setting" page, "Communication Data" choose "Modbus RTU Protocol", means communication with Modbus RTU over TCP. After setting server IP/DNS and other parameter, click "Save" button as below: Page 46 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 47 Device Address 01H Device, Range: 1-247, according to setting address Function Code Read holding coil type, function code 01 DO Origin Range: 0000-0003, address refer to "S270/S271 RTU I/O 00 00H Register Address Register List and function code" Read DO Register...
  • Page 48 This value: FF 00H or 00 00H, FF 00H= Close relay, 00 Active FF 00H 00H= Open relay 16CRC Verify 8C 3AH CRC0 CRC1 low byte in front, high behind Receiver Return Data Format: Page 48 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 49 Active close Active close Active close 1= Active close , 0= Active open 16CRC Verify 7E 92H CRC0 CRC1 low byte in front, high behind Receiver Return Data Format: Page 49 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 50 Description (H: HEX) Device 01H Device, Range: 1-247, according to setting address Address Function 02 read input coil DIN status Code Return Range: 0000-0003, stands for DIN0-DIN3 Bytes Qty Page 50 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 51 CRC0 CRC1 low byte in front, high behind Receiver Return Data Format: Data Content Bytes Description (H: HEX) Device 01H Device, Range: 1-247, according to setting address Address Function 04 read input register Page 51 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 52 00 01 00 01 00 01 00 01 00 01H invalid value, 0B 36H temperature value, 1B 36H humidity value, 00 00 00 0BH DIN0 count value, A9 3C CRC verify. Page 52 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 53: Mqtt Protocol

    MQTT Client ID: The unique identity of the device, which can be a serial number, device ID, or IMEI(King Pigeon Cloud 2.0 default is serial number) MQTT user name: Device's account on the broker server (King Pigeon Cloud 2.0 default is MQTT) MQTT password: Password of device's account on the broker server(King Pigeon Cloud 2.0 default is...
  • Page 54 //Timestamp: the character is "time", followed by "specific timestamp " //Alarm and recovery identification: the characters are "state", followed by "alarm" or "recovery" (alarm is alarm data, recovery is recovery data) Page 54 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 55 (Need to enable MQTT data retransmission function in the configuration software) Payload data format in device subscription message (The topic of the King Pigeon 2.0 platform downstream publish message is called "device serial number/sensor ID", so the device subscribe topic needs to add the wildcard "/+" in order to...
  • Page 56: Upgrade Firmware

    Gsm to 3G, or 3G to 4G network. 13. Warranty 1) This system is warranted to be free of defects in material and workmanship for one year. Page 56 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
  • Page 57 Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by purchasers The End! Any questions please help to contact us feel free. Http://www.iot-solution.com Page 57 of 57 King Pigeon Hi-Tech. Co., Ltd. Ver 3.0...
