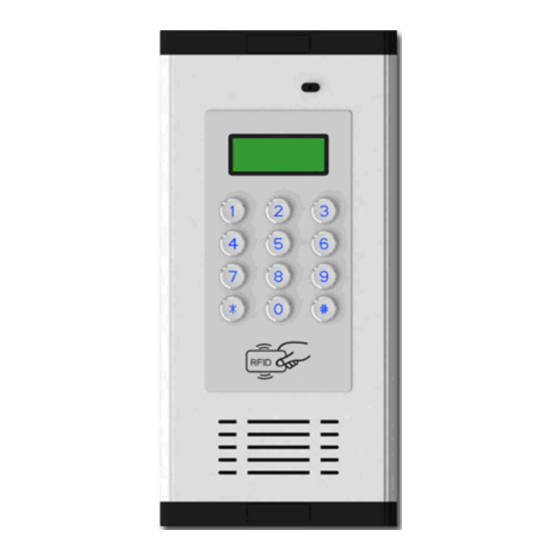

Wireless Apartment Intercom System

The daily use:

 Owner:
1) Directly press password on the host to open the gate, Screen display
2) Use IC card to open the gate, Screen display
3) Use an authorized phone to call the host, and the host automatically refuses to answer and open the gate,
Screen display
 Visitor:
1) In standby mode, Screen display
2) Input "room number#", e.g. "0101#", Alternate display
Revise Date: Oct. 25th 2017

Advantages:

Open the gate with a FREE call from authorized
phones;
Each room has an opening door password and 5
authorized phone numbers and 10 IC card;
Inbuilt Quad-band 850/900/1800/1900Mhz GSM
module, 3G is optional;
User Friendly Design, LED Screen, Alloy Shell and
keypad, Easy for installation;
Authorized 200 households open the gate, designed
for large apartment;
High quality two-way communication, or carries out
the open door action on the first 'ring' (Be
switchable);
Nice price, Functional and practical, No indoor
extension, No cabling cost, lower maintenance costs
later;
2 Relay Outputs (NC/NO),
Electronic Locks and CCTV Camera;
12V DC Power supply, Relay working time is
programmable (1~300 seconds), when it is 0 second,
indicating no action.
.
, Wait for a call or open the door.
Version:3.0
compatible with

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K6 and is the answer not in the manual?

Questions and answers

Summary of Contents for King Pigeon K6

  • Page 1 Wireless Apartment Intercom System Version:3.0 Revise Date: Oct. 25th 2017 Advantages:  Open the gate with a FREE call from authorized phones;  Each room has an opening door password and 5 authorized phone numbers and 10 IC card;  Inbuilt Quad-band 850/900/1800/1900Mhz GSM module, 3G is optional;...
  • Page 2  System configuration: Open the unit’s back cover and insert the SIM card (B1, B2). Wiring connect refer to the figure (D1). Then switch on the device, LED screen displays When the host receives the signal, the buzzer keep a long sound (No signal, the buzzer keep a short sound twice).
  • Page 3 display . When display , indicate to enter setting mode.  Basic settings: √ Set administrator password Password New password 1. Use the host to set: In the standby mode, press passwor Verify password standby mode press # display press # display again input current password # →...
  • Page 4 (Specific numbers according to the limit to the number of characters in a message) √ Authorize to IC card to open the door room number Use the host to set: In the setting mode, press , IC card can be authorized to open the door when close to the reading area.
  • Page 5 1 (or 2) 1、Use the host to set: In the setting mode, press setting mode press 3#1 (or 2)# automatically return to setting mode → → Note: When authorize number call the host,"1" mean call to open the door (Host will refuse the calling and open the door, default), "2"...
  • Page 6 not open the door, and not call next authorize number. 2. Use SMS to set: #2#1 #2#2 √ Set relay working mode (Only be set by SMS) # 6 # 1 # NO # 2 # NC Use SMS to set: (In this command “NO/NC”...
  • Page 7 room number # 2 # phone number # 3 # phone number # 4 # phone number # 5 # phone number # 6 # password Note: If the administrator phone number is set as the owner phone number at the same time, it can not send SMS to authorize the family opening door password and family members’...
