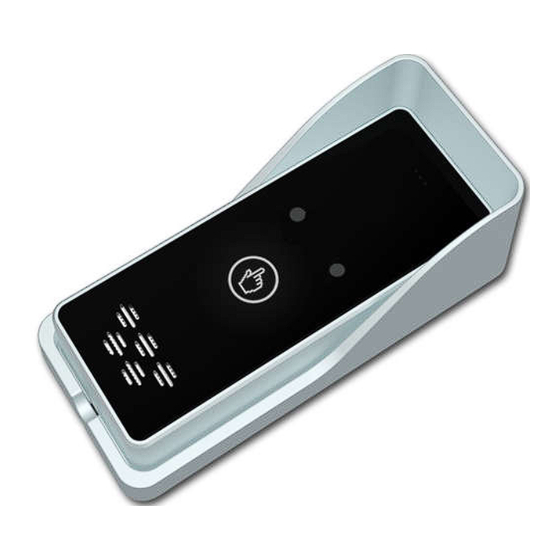

The K6s is a new type fashion
designed access control system, it
supports dial to open the door with
free call charge, can remote open
the door for visitors, very suitable
for different office, villas and
public occasion.
Apartment Intercom
User's Manual
Ver 3.1
Date: 2018-04-10
Download APP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K6S and is the answer not in the manual?

Questions and answers

Summary of Contents for King Pigeon K6S

  • Page 1 The K6s is a new type fashion designed access control system, it supports dial to open the door with free call charge, can remote open the door for visitors, very suitable for different office, villas and public occasion. Apartment Intercom User’s Manual...
  • Page 2: Product Features

    1. Product Features ◆ Support 200 sets of numbers, each number can be set in the time period to control the relay to open the door. ◆ A relay output is used to control the door open, relay close/open when there is calling of incoming users, And it will automatically recovery after set time.
  • Page 3 3. Internal Wiring Instructions OUTX (white): The output of the relay is connected with the electromagnetic switch, used to control the door. PJ1 (red and black): External power supply, the use of 9~24VDC, pay attention to distinguish between positive(red) and negative(black). RST: Reset, jumper wire connection, and then boot, after 10 seconds, disconnect, Restore factory settings (reset does not clear user’s number information).
  • Page 4 Start time,End time:In this period of time, it can be called in to control the relay, The Format :1701020304 (indicate: January 2, 2017 3 hours 4 minutes). Do not set the time to indicate permanent authorization. ◆ Delete user number Password + A + serial number## ◆...
  • Page 5 2) Set to return SMS to the first number, not to the incoming number after the relay close. Password + GON10# + Content of SMS# 3) Set to return SMS to the incoming number, not to the first number after the relay close. Password + GON01# + Content of SMS# 4) Set not to return SMS after the relay close.
  • Page 6 ◆ Query interval reporting time Password + T# ◆ Query module IMEI code and firmware version number Password + IMEI# ◆ Set not to dial next authorize umber after someone answering.(Default) Password +COFF# Press device button will call first 5 user numbers one by one, if anyone answered, then device will not call next authorize number, and user can press "#"...
  • Page 7 5. Schedule: SMS Instruction Set Function SMS command Remarks Password + TEL + The first time or replace the phone Equipment time calibration equipment number# card. That needs it. Current password +P Modify password Default password: 1234 +new password Password + A + serial Serial number is 001~200;...
