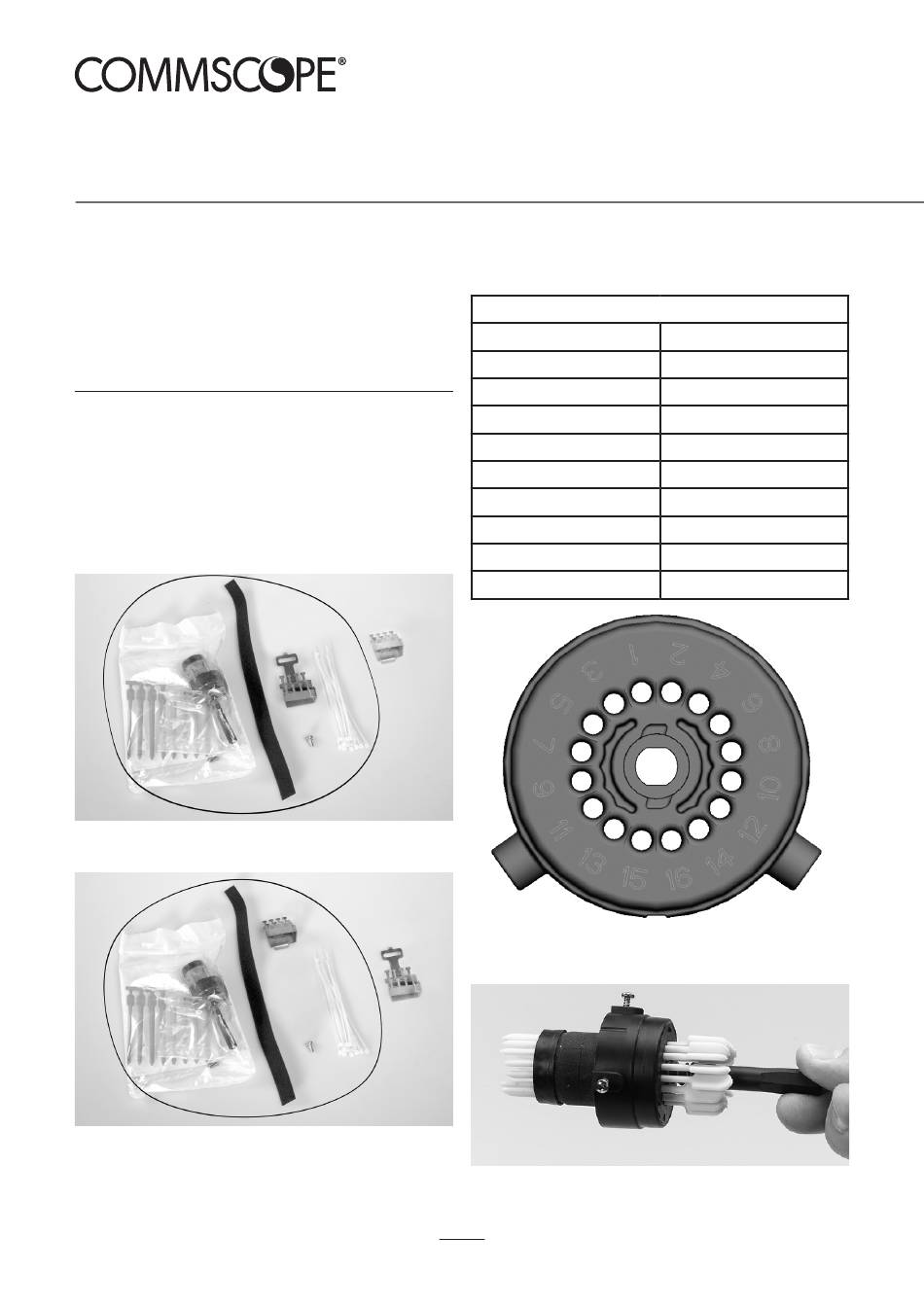

TC 1345/IP/1 12/16
Issue 2, Dec 2016
www.commscope.com
Content
1 General
2 Kit contents
3 Installation
3.1 General
3.2 FIST-GCO2-BX
3.3 FIST-GCO2-FX
1
General
This kit is used to install up to 16 drop cables without strength member
but with or without aramid yarn of max. 3 mm in one new unused round
port of a FIST-GCO2-BX and -FX.
Comment: depending on outside conditions some oil bleed-out may
occur. This will not affect in any way the sealing performance.
2
Kit contents
Kit content FIST-GCO2-BX6
Kit content FIST-GCO2-FX/BX8
Note: The lubrication oil in the kit makes it easier to
-
install gel-seal in the closure ports
-
guide cables through ports in the gel-seal.
FIST-RSKG-16/8
I N S T A L L A T I O N

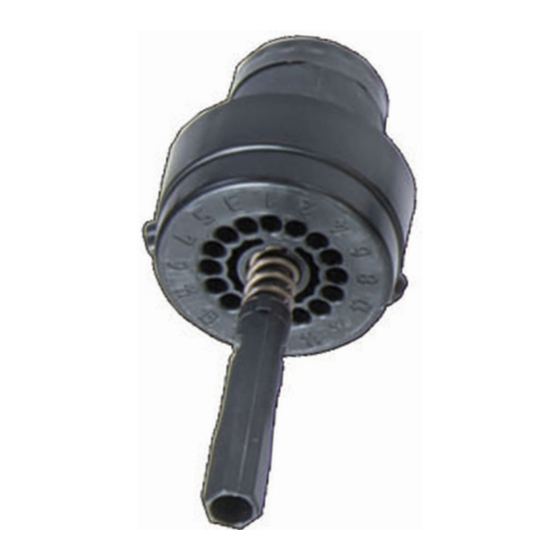

Gel seal for the round cable ports of FIST-GCO2-BX and FX
splice closure
3
Installation
3.1
General
Number of ports
FOSC-OSKG
FIST-OSKG
FIST-OSKG20
3.1.1
Always install at bottom first working upwards. This means that
sometimes first cable will enter in no. 1, sometimes in no. 16.
3.1.2
Before installing the gel seal in the port, install the 2 fixation
screws and all blind plugs.
1
I N S T R U C T I O N
Thermoplastic gel seals
Cable range (mm)
1
2
3
4
8
16
11-14
8-11
6,5-8
4-7
3-5
0-3
6-15
5-18
16-20
Advertisement
Table of Contents
Related Manuals for CommScope FIST-RSKG-16
Summary of Contents for CommScope FIST-RSKG-16
- Page 1 FIST-RSKG-16/8 I N S T A L L A T I O N I N S T R U C T I O N TC 1345/IP/1 12/16 Gel seal for the round cable ports of FIST-GCO2-BX and FX Issue 2, Dec 2016 splice closure www.commscope.com...
- Page 2 Cable guiding: Top view 15 16 3.1.3 Open the port. The cutting wire can be used. Make sure edges are free of burrs. Install the seal in the port, marking line always facing forward. The mark line on the gel seal should match with the mark line on the FIST-GCO2-Fx drop port (mark at the FIST-GCO2-Fx should be invisible when seal is installed).
- Page 3 Optional: FIST-GCO2-BX6-EXT/CF GCO2-BX cable securing frame A cable securing frame can be mounted onto the MOBRA (bolt and nut). This allows cables to be secured outside the closure. 3.2.5 Pull back and secure the cable with 1 tie-wrap to the bracket. Cable jacket should end between the 2 markers in the tube holder, as Apply some foam to the cable(s) and fix with tie-wrap(s) to the shown in the picture.
- Page 4 FIST and all trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to Commscope.com/SupportCenter/TechnicalSupport.aspx...
