  • Page 1 XR150 12V X-RAY GENERATOR OPERATOR’S MANUAL DECEMBER 2020 Golden Engineering Portable X-ray Technology...
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION 3 WARNINGS  4 PHYSICAL DESCRIPTION  5 CONTROL MODULE  7 REAR VIEW  8 REMOTE CABLE CONNECTOR  9 DESCRIPTION OF OPERATION  10 OPERATING INSTRUCTIONS  11 NAVIGATING THE MENU  13 BOOT SCREEN  13 SET NUMBER OF COUNTS/PULSES  14 SET DELAY TIME  14 MANUALLY ENTERING PULSE TRAINS  14...
  • Page 4: Introduction

    The devices are a pulsed X-ray device that produces X-ray pulses of very short duration (10-50 nanoseconds). The energy produced by the X-ray generator varies from model to model, and in the XR150 12V is approximately 150 kVp, which makes it possible to radiograph up to one (1/2) inch (1.27 cm) of steel.
  • Page 5: Warnings

    WARNINGS The X-ray generators from Golden Engineering are pulsed X-ray generators that emit hazardous ionizing radiation when pulsing. The unit should only be operated by authorized personnel who are properly trained to safely operate the X-ray generator. The X-ray generator must be registered with proper authorities prior to use and should not be used to intentionally expose humans.
  • Page 6: Physical Description

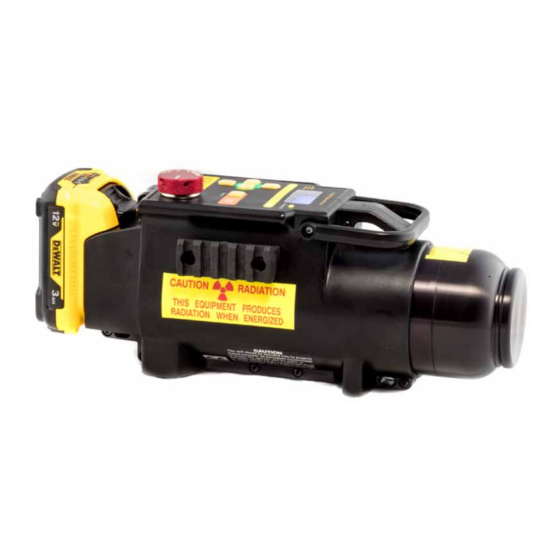

    PICATINNY RAIL The X-ray generator is equipped a 21 mm picatinny rail located on each side of the housing. XR150 12V BATTERY BATTERY PACK. The standard battery pack is a DeWalt® 12V 3 amp-hour Li Ion battery. RADIATION WARNING LABEL...
  • Page 7 HANDLE The handle of the XR150 is attached to the front sides of the Control Module. Loops are BEAM ANGLE TRIPOD MOUNT LABEL COLLIMATOR The standard collimator located on the front of the head limits the X-ray beam to 40 degrees.
  • Page 8: Control Module

    CONTROL MODULE BEAM ANGLE LABEL LIQUID CRYSTAL DISPLAY (LCD) The 80 character LCD is the main X-RAY PULSING LIGHTS interface with the unit. See the Operating Instructions for more details Blinks once per second after time on the various control screens. delay button or remote cable button is pressed to warn that the X-ray Generator is going to pulse.
  • Page 9: Rear View

    REAR VIEW TEMPERATURE SENSOR NEGATIVE - POSITIVE + REMOTE CABLE BATTERY CONNECTOR TERMINAL BLOCK Rear View BATTERY PACK The standard battery pack is a DeWalt® 12V 3 amp- hour Li Ion battery. In the USA the battery is rated at 12V, but outside the USA it may be rated as 10.7 or 12V.
  • Page 10: Remote Cable Connector

    REMOTE CABLE CONNECTOR The X-ray Generator is equipped with Lemo “K” series connector located on the lower left corner of the back of the control module. This is where the remote cable or imaging system cable is attached. Depending on the options of the unit, this may either be 5 pin or 7 pin connector.
  • Page 11: Description Of Operation

    DESCRIPTION OF OPERATION The block diagram below illustrates how the X-ray generator functions. The following sequence of events takes place each time the unit is fired: 1. User initiates operation of the machine. 2. The controller sends a signal to the converter to begin oscillating. 3.
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Determine Pulse Initiation Method Remote Cable Time Delay Attach Battery Attach Battery Attach Battery Connect System Attach Remote Cable Position X-ray Generator* Position X-ray Generator* Position X-ray Generator* Turn on X-ray Generator using key and turning clockwise 1/4 turn Turn on X-ray Generator Turn on X-ray Generator using key and turning...
  • Page 13 The operator should always stand outside of the exclusion zone. The exclusion zone (below) should be a controlled area free of all personnel while X-ray pulses. EXCLUSION ZONE All models100’ (30m) X-ray Beam XR150 12V 10’ (3 m) 20’ (6 m) 100’ (30 m)
  • Page 14: Navigating The Menu

    NAVIGATING THE MENU Home screen displays Counts (C) or Pulses (P) & Delay Time (D) Settings Header (Title Screen) for the main menu Set CT Set Counts (pulses) Set DT Set Delay time (In delay mode only, safety time before initial pulse) Set PTr Set Multiple Pulse Trains Home...
  • Page 15: Set Number Of Counts/Pulses

    Note: Press Enter and return to Home before pulsing the XR150. The XR150 will not pulse if software is not back to HOME screen. The HOME screen will now look like this to indicate it is in pulse train mode...
  • Page 16: Reset Pulse Counter

    DUTY CYCLE WARNING The XR150 is a light duty machine that is not made to pulse continuously. The maximum duty cycle for the units is 100 counts (300 pulses) every four minutes. In temperatures above 90°F (32.22°C) or continual use situations, rest a minimum of 30 sec every 50 pulses and 4 min after every 200 pulses.
  • Page 17: Pulse Count Exceeds Duty Cycle

    PULSES the unit fired, NOT the total number of Press ANY key COUNTS. The XR150 fires three pulses for each count entered so the 12,549 Lifetime pulses that appear on LCD below equals back to the HOME screen...
  • Page 18: Backlight

    Use Arrows to change setting Press Enter to select BACKLIGHT Allows the user to turn the backlight on and off. PULSES PER COUNT Allows the user to switch between 1 or 3 pulses per count. DISABLE DUTY CYCLE WARNING Allows the user to turn off the duty cycle warning in otder to send longer pulse trains without automatically splitting them.
  • Page 19: Multiple Pulse Train Exceeds Duty Cycle

    MULTIPLE PULSE TRAIN EXCEEDS DUTY CYCLE If multiple pulse train combination exceeds 100 counts in 4 minutes the LCD will warn that settings exceed duty cycle and ask if operator wants to continue. The software will allow operator to continue, but they must acknowledge that they are exceeding duty cycle and could void the warranty.
  • Page 20: Error Messages

    ERROR MESSAGES Battery voltage is too low to pulse XR150. Charge the battery. Pulse rate is slower than 1 pulse per second. Either low battery, problem with transformer, or electronics. Charge battery, or replace oscillator board. Current not detected. No current flow going to the head.
  • Page 21: Troubleshooting

    TROUBLESHOOTING SYMPTOM TEST ACTION Stop and return unit for repair. Unit makes loud popping noise Continued use in this condition will while pulsing. cause additional damage to the unit. Oil leaking from unit. Return for repair. Replace or charge battery Check battery voltage Ensure battery is securely attached No “power on”...
  • Page 22: Recommended Pulse Settings

    The chart below lists approximate pulses necessary to penetrate various materials. Settings vary depending on imaging system used. Refer to imaging system instructions for more information. MATERIAL COUNT (PULSE) SETTING XR150 12V Cardboard, light wood, plastic 10 counts (30 pulses) Light metal 20 counts (60 pulses) Steel ¼”...
  • Page 23: Ce Certificate

    CE CERTIFICATE...
  • Page 24: Specifications

    SPECIFICATIONS PHYSICAL DIMENSIONS INCLUDING BATTERY PACK XR150 MODEL 10.62 in LENGTH (26.97 cm) 3.03 in WIDTH (7.70 cm) 4.07 in HEIGHT (10.03 cm) 4.9 lb WEIGHT (2.2 kg) X-RAY OUTPUT X-ray dose per pulse 2.3 to 4.0 mR per count (12 inches in front of unit) (0.76 to 1.33 per pulse)
  • Page 25: Spare Parts And Accessories

    SPARE PARTS AND ACCESSORIES ITEM PART NUMBER Thumbwheel Key 2002000 Flat key 5951020 DeWalt Battery 12V Li-ION (3 Ah) 1800105 ® DeWalt Battery Charger (110V) DCB115 1800151 ® DeWalt Battery Charger (220V) DW 220 1800164 ® 5-Pin K Remote Cable 1809022 5-Pin B Remote Cable 1809013...
  • Page 27: Warranty

    WARRANTY Golden Engineering, Inc. warrants XR150-12V X-ray units made and sold by it or its authorized representatives to be free of defects in materials and workmanship for a period of twelve (12) months from the date of shipment to the end user. Warranty does not cover maintenance required due to life. To make a claim under this limited warranty, customer must ship the entire unit (or the component believed to be defective) to Golden Engineering, post-paid.
  • Page 28 Golden Engineering, Inc. 6364 Means Road, Box 185 Centerville, IN 47330 USA Phone: 1-765-855-3493...
