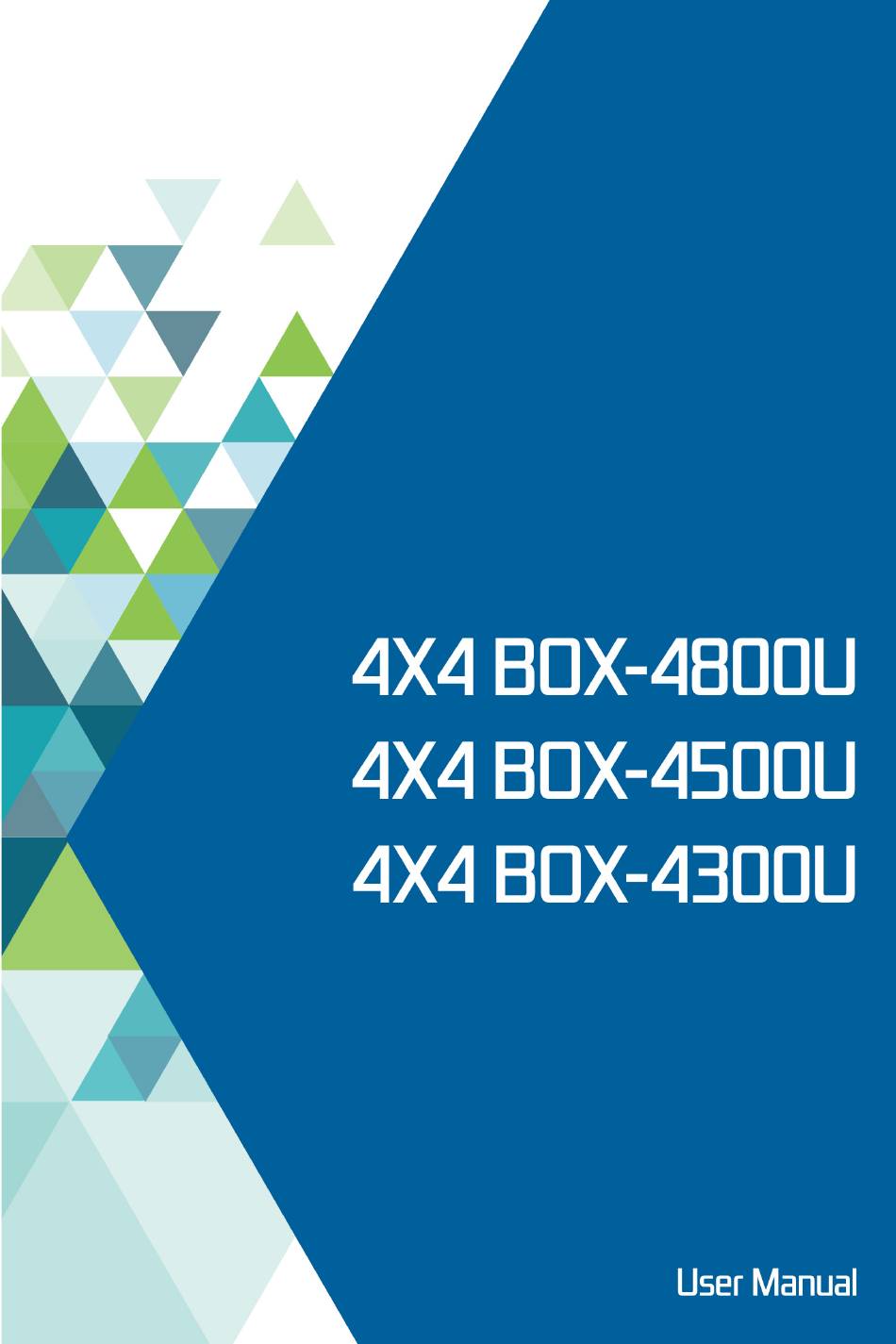

- Page 1 4X4 BOX-4800U 4X4 BOX-4500U 4X4 BOX-4300U User Manual Version 1.0 Published January 2021...
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 3 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at www.ASRock.com; or you may contact your dealer for further information.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the WiFi Module How to Remove the M.2 SSD and the Bracket How to Install the M.2 SSD How to Install the 2.5-inch Hard Drive How to Install the Memory Modules... - Page 5 Chapter 6 UEFI Setup Utility Introduction Main Screen Advanced Screen Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen Chapter 8 Software Support Install Operating System Support CD Information...
-
Page 8: Chapter 1 Introduction
1.1 Package Contents • 4X4 BOX-4000 Series • 4X4 BOX-4000 Series (pre-installed motherboard) • 1 x SATA 1 to 1 Power Cable • 4 x HDD Screws (M3x4) • 1 x WiFi Module Screw • 1 x Screw for M.2 slot... -
Page 9: Product Specifications
1.2 Product Specifications 4X4 BOX-4000 Barebone Series 4X4 BOX-4800U (AMD Ryzen™ 7 4800U, 8Cores, Max Speed up to 4.2GHz) 4X4 BOX-4500U (AMD Ryzen™ 5 4500U, 6Cores, Max Speed up to 4.0GHz) 4X4 BOX-4300U (AMD Ryzen™ 3 4300U, 4Cores, Max Speed up to 3.7GHz) Chipset Memory Supports Dual Channel DDR4 3200 MHz, 2 x SO-DIMM slots,... - Page 10 Volume 0.6L (Liters) Operating 0°C~40°C Temperature * For 4X4 BOX-4000 Series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the 4X4 BOX-4000 Series in a vertical position to ensure better cooling performance.
-
Page 11: Block Diagram
1.3 Block Diagram... -
Page 12: Chapter 2 Product Overview
4X4 BOX-4000 Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the 4X4 BOX-4000 Series. 2.1 Front View Description Audio(Mic-in, Line-out) 2 x USB 3.2 Gen2 Ports (Type C, supports DP1.2a display output) -
Page 13: Rear View
2.2 Rear View Description DC-IN HDMI RJ-45 (1G)* 2 x USB 2.0 Ports DisplayPort RJ-45 (2.5G)** * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED... - Page 14 4X4 BOX-4000 Series * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description...
-
Page 15: Inside View
2.3 Inside View Description SO-DIMM Slot SATA 3.0 Connector Mini PCIe Slot M.2 Slot Hard disk drive tray (compatible with 2.5" SATA HDD/SSD) SO-DIMM memory, hard drive and mSATA SSD are not included with this system. -
Page 16: Chapter 3 Hardware Installation
4X4 BOX-4000 Series Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.. -
Page 17: How To Install The Wifi Module
3.2 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard. -
Page 18: How To Remove The M.2 Ssd And The Bracket
4X4 BOX-4000 Series 3.3 How to Remove the M.2 SSD and the Bracket 1. Release the screw and carefully remove the M.2 SSD. 2. Release the screw and remove the bracket from the motherboard. -
Page 19: How To Install The M.2 Ssd
3.4 How to Install the M.2 SSD 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD into the slot. 3. Tighten the screw to secure the M.2 SSD to the motherboard. -
Page 20: How To Install The 2.5-Inch Hard Drive
4X4 BOX-4000 Series 3.5 How to Install the 2.5-inch Hard Drive 1. Remove the four screws on the bottom case. Then lift up and remove the bottom panel. 2. Attach the HDD to the hard drive mounting bracket and secure it using the four... - Page 21 3. Connect the SATA Data and Power Cable to the HDD. 4. Connect the SATA Data and Power Cable to the HDD.
- Page 22 4X4 BOX-4000 Series 5. Connect the SATA Cable to the connector. 6. Then reinstall the bottom panel.
-
Page 23: How To Install The Memory Modules (Ddr4)
3.6 How to Install the Memory Modules (DDR4) 1. The 4X4 BOX-4000 Series requires DDR4 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 SO-DIMM pairs. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. -
Page 24: Chapter 4 Motherboard
4X4 BOX-4000 Series Chapter 4 Motherboard 4.1 Motherboard Layout 1 : SIO_AT1 2 : M.2 Key-M Socket (M2M_1) 3 : M.2 Key-E Socket (M2E_1) 4 : Front Panel Audio Header 5 : USB2.0 Connector (USB2H_1_2) 6 : COM Port Header (RS232/422/485) -
Page 25: Motherboard Specifications
4.2 Motherboard Specifications Form Dimensions NUC 4.09" x 4.02" (104 x 102mm) Factor 4X4-4800U: AMD Ryzen™ 7 4800U (Max Speed up to 4.2GHz) 4X4-4500U: Processor AMD Ryzen™ 5 4500U (Max Speed up to 4.0GHz) System 4X4-4300U: AMD Ryzen™ 3 4300U (Max Speed up to 3.7GHz) Chipset BIOS AMI SPI 128 Mbit... - Page 26 4X4 BOX-4000 Series 2 x USB2.0 (1 x 2.54 pitch header) Internal 1 x COM (RS-232/422/485) Connector Infinion SLB9670VQ2.0 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD Storage *M.2 Key M 2280 (Supported by bracket) SATA 1 x SATA3.0 (6.0 Gb/s)
-
Page 27: Jumpers Setup
4.3 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... -
Page 28: Onboard Headers And Connectors
4X4 BOX-4000 Series 4.4 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! USB 2.0 Connector... - Page 29 Front Panel Audio Header This is an interface for front panel audio cable that allows (9-pin HD_AUDIO1) convenient connection and (see p.8 No. 4) control of audio devices. Signal Signal Signal Signal Signal Name Name Name Name Name AGND LIN1_JD LIN2_JD 10 LIN1_L_ LIN1_R_...
- Page 30 4X4 BOX-4000 Series Back Side: Power Button Header (PWR_BTN3) Fan Connector +12V (FAN1) FAN_SPEED FAN_SPEED_CONTROL...
-
Page 31: Expansion Slots (M.2 Slots)
4.5 Expansion Slots (M.2 Slots) There are 2 M.2 slots on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD. * M.2 Key M 2280 (Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVio for Wireless. -
Page 32: Chapter 6 Uefi Setup Utility
4X4 BOX-4000 Series Chapter 6 UEFI Setup Utility 6.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 33: Main Screen
6.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 34: Advanced Screen
4X4 BOX-4000 Series 6.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Super IO Configuration, ACPI Configuration, USB Configuration, Trusted Computing, MCTP Configuration and Se- rial Port Console Redirection. - Page 35 6.3.1 CPU Configuration Cool ‘n‘ Quiet Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology. The default value is [Enabled]. Configuration options: [Enabled] and [Dis- ® abled]. If you install Windows OS and want to enable this function, please set this item to [Enabled].
- Page 36 4X4 BOX-4000 Series 6.3.2 Chipset Configuration Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Onboard HD Audio Select [Enabled] or [Disabled] for the onboard HD Audio feature. Verb Table Select The default value is [Combo Jack].
- Page 37 6.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.
- Page 38 4X4 BOX-4000 Series 6.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer.
- Page 39 6.3.5 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode.
- Page 40 4X4 BOX-4000 Series 6.3.6 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are two configuration options: [Enabled] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these two options: [Enabled] - Enables support for legacy USB.
- Page 41 6.3.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device.
-
Page 42: Hardware Health Event Monitoring Screen
4X4 BOX-4000 Series 6.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. -
Page 43: Security Screen
6.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 44: Boot Screen
4X4 BOX-4000 Series 6.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. - Page 45 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
-
Page 46: Exit Screen
4X4 BOX-4000 Series 6.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard... -
Page 47: Chapter 8 Software Support
Click on a specific item then follow the installation wizard to install it. 8.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
