Manual

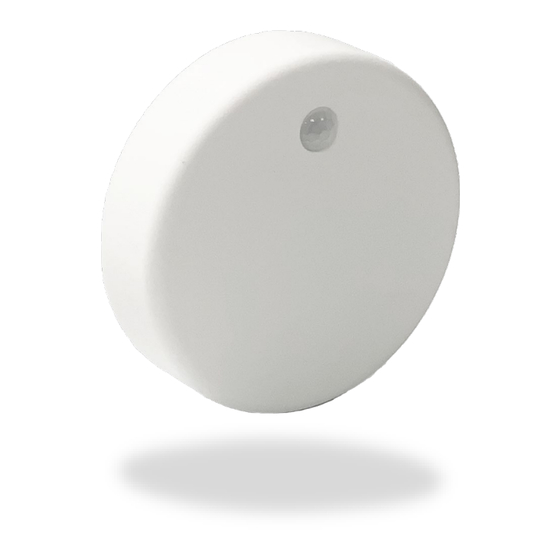

AL-602-03-902 EnoPuck BASIC
Desk Sensor with vibration and PIR sensor
EnOcean 902 MHz
Part no. 12408
Version 1.1.02, valid since FW/HW 1.0 / 2.0
© DEUTA Controls GmbH
06.07.2021
Technical data might change
Page 1 of 19
Paffrather Str. 140, 51465 Bergisch Gladbach
Hauptstraße 76, 32479 Hille
info@deuta-controls.de;
www.deuta-controls.net
Tel.:+49 2202 285 57- 61
Tel: +49 5734 51466 - 0
Fax:+49 5734 51466 - 28
Advertisement
Chapters
Table of Contents
Related Manuals for DEUTA Controls AL-602-03-902 EnoPuck BASIC
Summary of Contents for DEUTA Controls AL-602-03-902 EnoPuck BASIC
- Page 1 Manual Page 1 of 19 AL-602-03-902 EnoPuck BASIC Desk Sensor with vibration and PIR sensor EnOcean 902 MHz Part no. 12408 Version 1.1.02, valid since FW/HW 1.0 / 2.0 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 06.07.2021...
- Page 2 Manual by third parties that violate pertinent copyright provisions is prohibited. Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of DEUTA Controls GmbH, Bergisch Gladbach, Germany. Non-observance will involve the right to assert damage claims.
-
Page 3: Table Of Contents
AL-602-03-902 EnoPuck BASIC Product manual Page 3 of 19 Table of contents Validity of this documentation ..................5 Intended use ........................5 Disposal ......................... 6 Device description ......................6 Functionality ......................6 External product interface ..................6 Observe intended use ..................... 7 Observe statutory provisions for operating frequency range. - Page 4 AL-602-03-902 EnoPuck BASIC Product manual Page 4 of 19 Safety remarks ......................14 Device labels .........................15 FCC (United States) Regulatory Statement ...............16 ISED Regulatory Statement ..................16 Dimensions / drawings ....................17 Ordering information ....................18 Revision history ......................19 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61...
-
Page 5: Validity Of This Documentation
The AL-602-03-902 EnoPuck BASIC can be put on a tables surface, or even mounted below a desk using a double-sided adhesive tape. The lens cover can be used to shield a certain area to avoid an unwanted motion detection. -
Page 6: Disposal
Directives and laws may vary nationally. 4 Device description 4.1 Functionality The AL-602-03-902 EnoPuck BASIC is used to detect the presence of people working on a desk by the internal vibration and PIR (passive infrared) motion sensor in the front. -
Page 7: Observe Intended Use
Page 7 of 19 4.3 Observe intended use The AL-602-03-902 EnoPuck BASIC must not be used in any relation with equipment that supports, directly or indirectly, human health or life or with applications that can result in danger for people, animals or real value. -
Page 8: Technical Data
AL-602-03-902 EnoPuck BASIC Product manual Page 8 of 19 5 Technical data 5.1 Communication / EnOcean wireless interface Type EnOcean Number Transmit / receive center frequency 902.875 MHz Maximum transmission power +99 dBµV/m Table 1: Technical data / communication 5.2 Sensor: Vibration sensor Measuring range ±... -
Page 9: Power Supply
AL-602-03-902 EnoPuck BASIC Product manual Page 9 of 19 5.6 Power supply Power supply voltage 2x AA, 1,5V internal batteries Power consumption Typ. 1 mW, 50 µA standby Table 6: Technical data / power supply 5.7 Environmental conditions Operating temp. -
Page 10: Functional Description In Detail
Page 10 of 19 6 Functional description in detail 6.1 Events and messages Vibration and motion are monitored in parallel by the AL-602-03-902 EnoPuck BASIC. The events are handled with the same priority, whatever will happen first. 6.1.1 Detect vibrations The EnoPuck BASIC continuously monitors the environment by the PIR sensor on top of the housing. -
Page 11: Table Of Supported Eep's (Enocean Equipment Profiles)
AL-602-03-902 EnoPuck BASIC Product manual Page 11 of 19 6.2 Table of supported EEP’s (EnOcean Equipment Profiles) 6.2.1 Transmit / TX The EnOcean wireless standard defines so called EnOcean Equipment Profiles (EEP). Each EnOcean based product sends and receives data according to at least one standardized data format. -
Page 12: Table 12: Enocean Transmit Data
AL-602-03-902 EnoPuck BASIC Product manual Page 12 of 19 Offset Size Bitrange Data Shortcut Description Valid Scale Unit range DB0.7…DB0.4 Not used (= 0) DB0.3 LRN bit LRNB LRN Bit 0: Teach-in telegram 1: Data telegram DB0.2…DB0.1 Not used (= 0) DB0.0... -
Page 13: Receive/ Rx
AL-602-03-902 EnoPuck BASIC Product manual Page 13 of 19 6.2.2 Receive/ RX The EnoPuck BASIC sends EnOcean telegrams only . No data is received / interpreted. Cons. Nr. Description © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 06.07.2021... -
Page 14: Service / Changing Batteries
AL-602-03-902 EnoPuck BASIC Product manual Page 14 of 19 7 Service / changing batteries Caution: When opening the device, you have to take care of electrostatic discharge. Otherwise, electronics will be damaged. In case of discharged batteries, they can be replaced with two new AA batteries, 1,5 V. -
Page 15: Device Labels
AL-602-03-902 EnoPuck BASIC Product manual Page 15 of 19 Keep new and used batteries away from children. 9 Device labels The following labels are placed on the bottom side of the EnoPuck BASIC: FCC ID: 2AZTH-AL-602-03-902 IC: 27242-60203902 PMN: AL-602-03-902 FVIN: 1.0... -
Page 16: Fcc (United States) Regulatory Statement
AL-602-03-902 EnoPuck BASIC Product manual Page 16 of 19 10 FCC (United States) Regulatory Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. -
Page 17: Dimensions / Drawings
AL-602-03-902 EnoPuck BASIC Product manual Page 17 of 19 12 Dimensions / drawings Diameter: 100 mm; Height: approx. 28 mm+ 7 mm lens cover if mounted © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 06.07.2021... -
Page 18: Ordering Information
AL-602-03-902 EnoPuck BASIC Product manual Page 18 of 19 13 Ordering information Part name Part nr. Description Table sensor, EnoPuck BASIC, EnOcean 902 MHz, sensors for vibration and PIR detector; supply voltage 2x AA 1,5 V AL-602-03-902 EnoPuck BASIC 12408 internal, dimensions 100 x 28 PC, white opaque;... -
Page 19: Revision History
AL-602-03-902 EnoPuck BASIC Product manual Page 19 of 19 List of tables Table 1: Technical data / communication ................8 Table 2: Technical data / vibration sensor ................8 Table 3: Technical data / PIR sensor ..................8 Table 4: Technical data / user interfaces ................8 Table 5: Technical data / housing ..................
