Manual

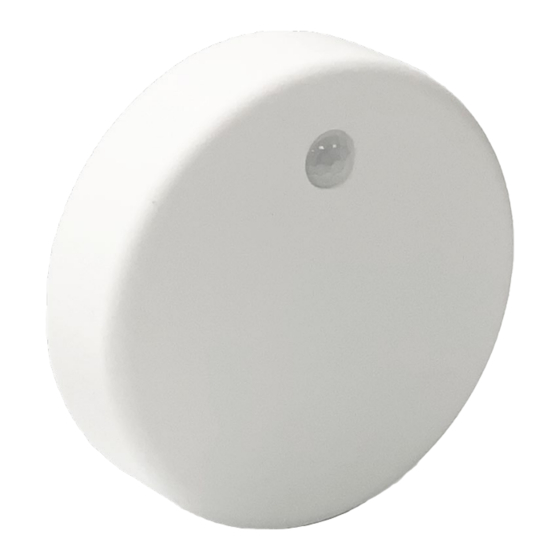

AL-602-03-868 EnoPuck BASIC / white / CE
Desk Sensor with vibration and PIR sensor
EnOcean 868 MHz
Part no. 12385
Version 1.1.02, valid since FW/HW 1.0 / 2.0
© DEUTA Controls GmbH
23.12.2021
Technical data might change
Page 1 of 18
Paffrather Str. 140, 51465 Bergisch Gladbach
Hauptstraße 76, 32479 Hille
info@deuta-controls.de;
www.deuta-controls.net
Tel.:+49 2202 285 57- 61
Tel: +49 5734 51466 - 0
Fax:+49 5734 51466 - 28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DEUTA Controls AL-602-03-868 EnoPuck BASIC
Summary of Contents for DEUTA Controls AL-602-03-868 EnoPuck BASIC
- Page 1 Manual Page 1 of 18 AL-602-03-868 EnoPuck BASIC / white / CE Desk Sensor with vibration and PIR sensor EnOcean 868 MHz Part no. 12385 Version 1.1.02, valid since FW/HW 1.0 / 2.0 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61...
- Page 2 Manual by third parties that violate pertinent copyright provisions is prohibited. Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of DEUTA Controls GmbH, Bergisch Gladbach, Germany. Non-observance will involve the right to assert damage claims.
-
Page 3: Table Of Contents
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 3 of 18 Table of contents Validity of this documentation ..................5 Intended use ........................5 Disposal ......................... 6 Device description ......................6 Functionality ......................6 External product interface ..................6 Observe intended use ..................... - Page 4 AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 4 of 18 Dimensions / drawings ....................16 Ordering information ....................17 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 23.12.2021 Hauptstraße 76, 32479 Hille...
-
Page 5: Validity Of This Documentation
The AL-602-03-868 EnoPuck BASIC can be put on a tables surface, or even mounted below a desk using a double-sided adhesive tape. The lens cover can be used to shield a certain area to avoid an unwanted motion detection. -
Page 6: Disposal
Directives and laws may vary nationally. 4 Device description 4.1 Functionality The AL-602-03-868 EnoPuck BASIC is used to detect the presence of people working on a desk by the internal vibration and PIR (passive infrared) motion sensor in the front. -
Page 7: Observe Intended Use
Page 7 of 18 4.3 Observe intended use The AL-602-03-868 EnoPuck BASIC must not be used in any relation with equipment that supports, directly or indirectly, human health or life or with applications that can result in danger for people, animals or real value. -
Page 8: Technical Data
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 8 of 18 5 Technical data 5.1 Communication / EnOcean wireless interface Type EnOcean Number Transmit / receive center frequency 868.3 MHz / ASK Frequency range used 868.0 – 868.6 MHz Typ. -
Page 9: Housing / Connection Technology
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 9 of 18 5.5 Housing / connection technology Connection technology Housing Plastic, PC, white opaque Table 5: Technical data / housing 5.6 Power supply Power supply voltage 2x AA, 1,5V internal batteries Power consumption Typ. -
Page 10: Standards / Approvals
Table 9: Technical data / tests and approvals 6 Functional description in detail 6.1 Events and messages Vibration and motion are monitored in parallel by the AL-602-03-868 EnoPuck BASIC. The events are handled with the same priority, whatever will happen first. 6.1.1 Detect vibrations The EnoPuck BASIC continuously monitors the environment by the PIR sensor on top of the housing. -
Page 11: Send Learn Telegram
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 11 of 18 6.1.3 Send learn telegram To connect the EnoPuck BASIC to any building automation system, a so called learn telegram can be send by the EnoPuck BASIC. Simply push the service button. The EnoPuck BASIC will immediately send a learn telegram. -
Page 12: Table 11: Enocean Transmit Data
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 12 of 18 Offset Size Bitrange Data Shortcut Description Valid Scale Unit range DB3.7…DB3.0 Supply Battery 0..250 0…5.0 voltage voltage DB2.7…DB2.0 Not used (= 0) DB1.7…DB1.0 PIRS PIR Status Table 12... -
Page 13: Receive/ Rx
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 13 of 18 Bit 0: 1 = PIR motion detected; 0 = PIR motion detected; 6.2.2 Receive/ RX The EnoPuck BASIC sends EnOcean telegrams only . No data is received / interpreted. -
Page 14: Service / Changing Batteries
AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 14 of 18 7 Service / changing batteries Caution: When opening the device, you have to take care of electrostatic discharge. Otherwise, electronics will be damaged. In case of discharged batteries, they can be replaced with two new AA batteries, 1,5 V. - Page 15 AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 15 of 18 Keep new and used batteries away from children. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 23.12.2021 Hauptstraße 76, 32479 Hille...
- Page 16 AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 16 of 18 9 Dimensions / drawings Diameter: 100 mm; Height: approx. 28 mm+ 7 mm lens cover if mounted © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61...
- Page 17 AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 17 of 18 10 Ordering information Part name Part nr. Description Desk occupancy sensor, EnoPuck BASIC, EnOcean 868 MHz, Sensors for vibration and PIR AL-602-03-868 EnoPuck BASIC / 12385 detectors; Supply voltage batteries,...
- Page 18 AL-602-03-868 EnoPuck BASIC / white / CE Product manual Page 18 of 18 List of tables Table 1: Technical data / communication ................8 Table 2: Technical data / vibration sensor ................8 Table 3: Technical data / PIR sensor ..................8 Table 4: Technical data / user interfaces ................
