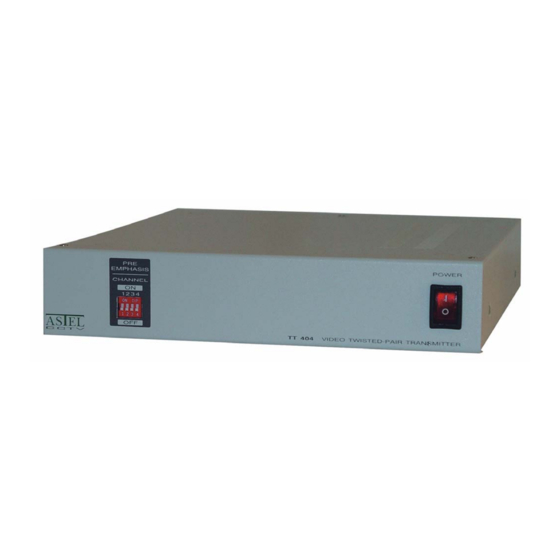

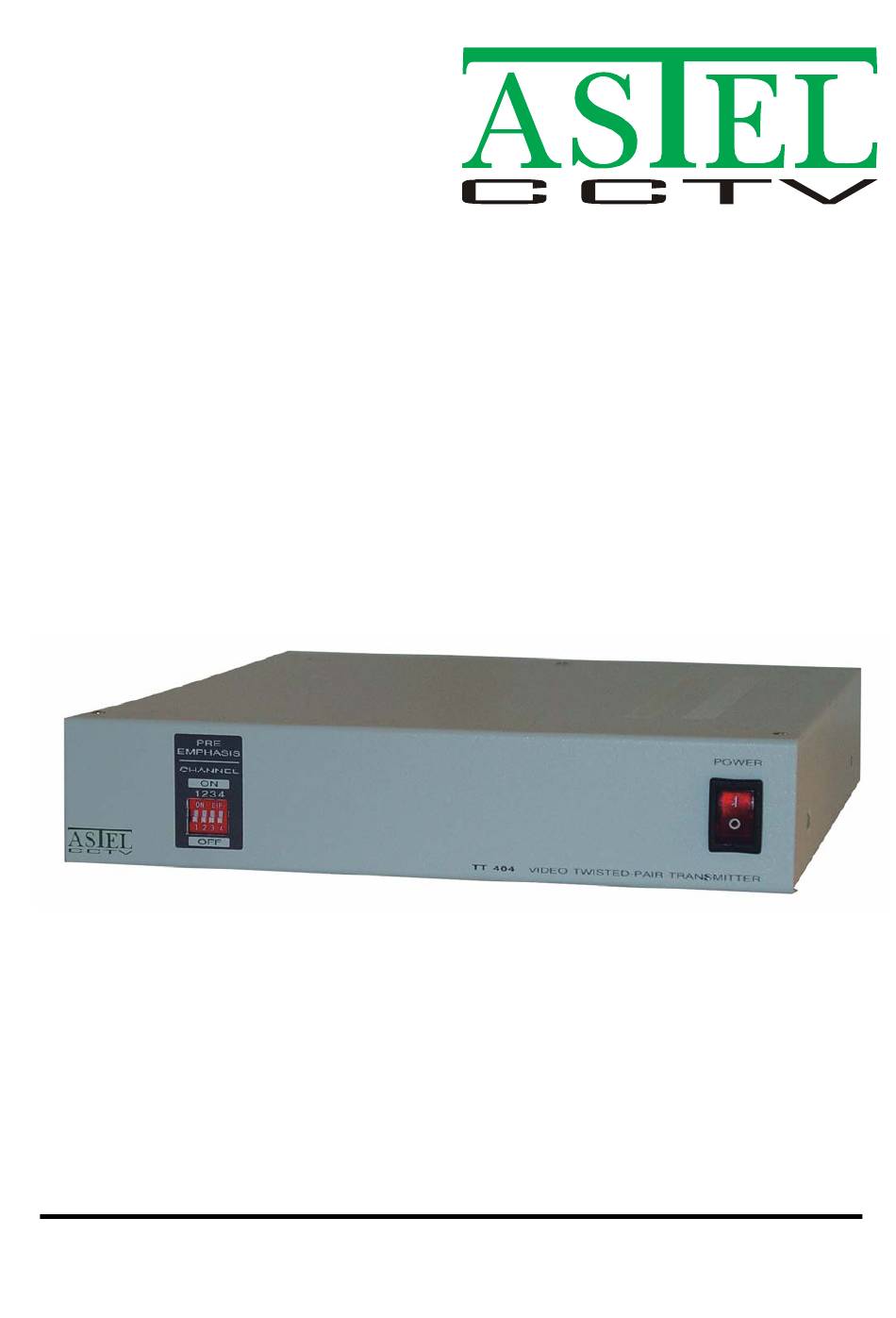

- Page 1 TT 404 VIDEO TWISTED-PAIR TRANSMITTER OPERATING INSTRUCTIONS v1.0...
-
Page 2: Table Of Contents
CONTENTS Preface ............................... 3 Features..............................3 Block diagram ............................. 3 Principle of operation..........................3 Controls and connectors..........................4 Connections..............................5 Installation..............................5 Appearance ..............................6 Specifications.............................. 6 This unit is produced to comply with Directive 89/336/EEC. Due to continuous product improvement all specifications and design are subject to change without notice. -
Page 3: Preface
PREFACE The video twisted-pair transmitter TT 404 is a connect the twisted-pair cables. It is available in a four-channel correction amplifier with four rack-mountable metal casing. By the help of DIP standard asymmetrical video inputs and four switches the pre-emphasis adjustment is possible symmetrical outputs which are adjusted to from the front panel. - Page 4 REAR PANEL 12 VDC (1) POWER SUPPLY (3) VIDEO INPUTS 1-4 Standard connector to connect 12V DC regluated Four standard BNC video input connectors. adaptor. (2) VIDEO OUTPUTS 1-4 Four video output terminal block connectors to connect twisted-pair cables.
-
Page 5: Connections
CONNECTIONS Be sure to switch-off the power supply unit before connecting to other equipment. Also refer to the instruction manual of the equipment to be connected. VIDEO VIDEO TWISTED-PAIR TWISTED-PAIR RECEIVER RECEIVER 12VDC 12V DC REGULATED ADAPTOR... -
Page 6: Installation
INSTALLATION The unit is suitable to use CAT 5 or other UTP (Unshielded Twisted Pair) cables, where is possible to connect one or more units and enable to pass more than one video signal through the same cable. (1) Connect the power plug. (2) Connect the video test generator (1 Vpp / 75 ) to the BNC video input connector. -
Page 7: Specifications
Model TT 404 TT 404P TT 808 TT 808P TT 1616 TT 1616P TR 101 1600 1600 1600 1600 1600 1600 TR 101L 1500 1500 1500 1500 1500 1500 TR 101LS 1500 1500 1500 1500 1500 1500 TRP 101 1600... - Page 8 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 E-mail: sales@astel-cctv.com Web: www.astel-cctv.com...
