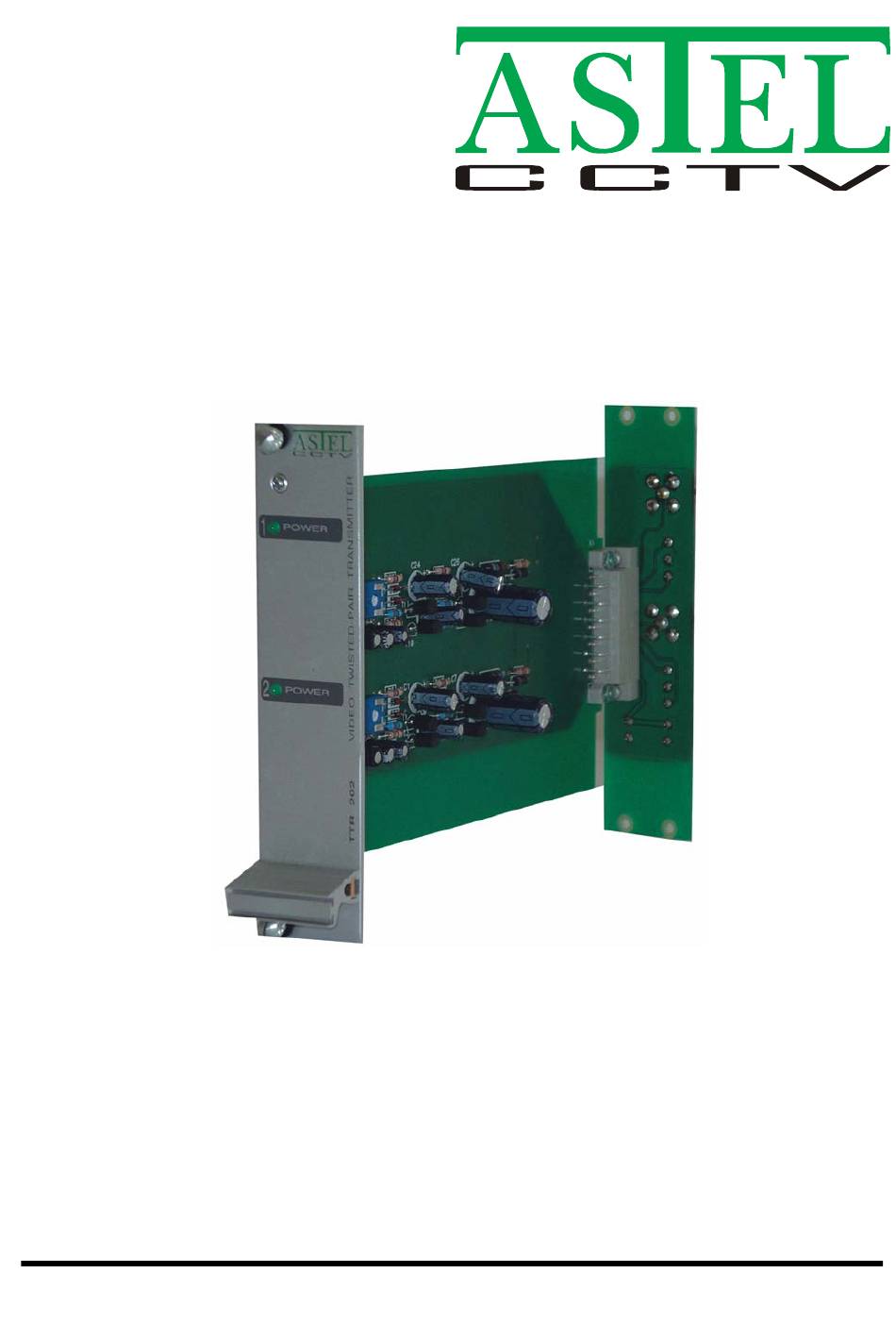

- Page 1 TTR 202 VIDEO TWISTED-PAIR TRANSMITTER OPERATING INSTRUCTIONS v1.0...
- Page 2 CONTENTS Preface ............................... 3 Features..............................3 Controls and connectors..........................3 Connections..............................4 Installation..............................4 Appearance ..............................6 Specifications.............................. 6 This unit is produced to comply with Directive 89/336/EEC. Due to continuous product improvement all specifications and design are subject to change without notice.
- Page 3 PREFACE The video twisted-pair transmitter TTR 202 is a suitable to fit in a 19” standard rack 3U. Pre- double correction amplifier with the standard emphasis selection enables better video asymmetrical video inputs symmetrical transmission through the long distances. outputs to connect the twisted-pair cables. It is FEATURES ...
- Page 4 CONNECTIONS Be sure to switch-off the power supply unit Also refer to the instruction manual of the before connecting to other equipment. equipment to be connected. VIDEO VIDEO TWISTED-PAIR TWISTED-PAIR RECEIVER RECEIVER MON 1 MON 2 CAM 2 POWER CAM 1 SUPPLY...
- Page 5 Maximum distances (CAT 5 UTP Cable) between different models of video twisted-pair transmitters and receivers: Model TT 101 TT 101S TTP 101 TTR 101 TTR 202 TTM 101 TTM 101C 1600 1600 1800 1600 1600...
- Page 6 APPEARANCE 16.5 175.5 30.2 SPECIFICATIONS 2, 1Vpp, 75 Video input Video output 2, 2 x 2Vpp 100 15 Output impedance Freq. response 30Hz - 5MHz (0.5dB) Pre-emphasis +10dB, 5MHz Power supply 12VDC, 105mA max. Power supply protection varistor Casing 3U/6TE card panel Dimensions...
- Page 8 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 E-mail: sales@astel-cctv.com Web: www.astel-cctv.com...
