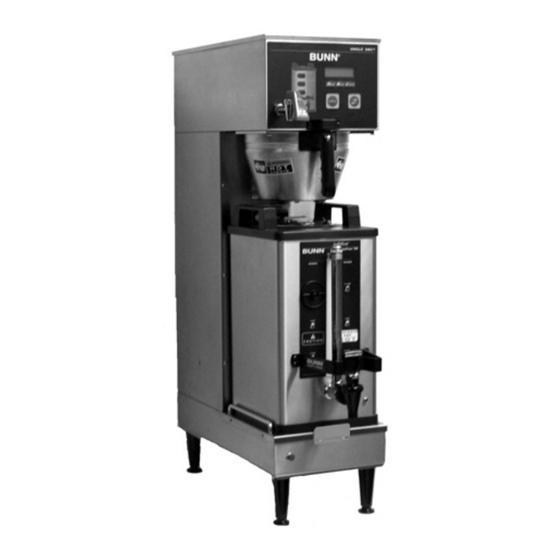

SINGLE
SH DBC
®
®
WITH SMART FUNNEL
®
S/N SNG0033000 & UP
INSTALLATION & OPERATING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the
quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the
required Illustrated Parts Catalog mailed via U.S. Postal Service
www.bunn.com
34025.0002B 05/07 ©2005 Bunn-O-Matic Corporation
