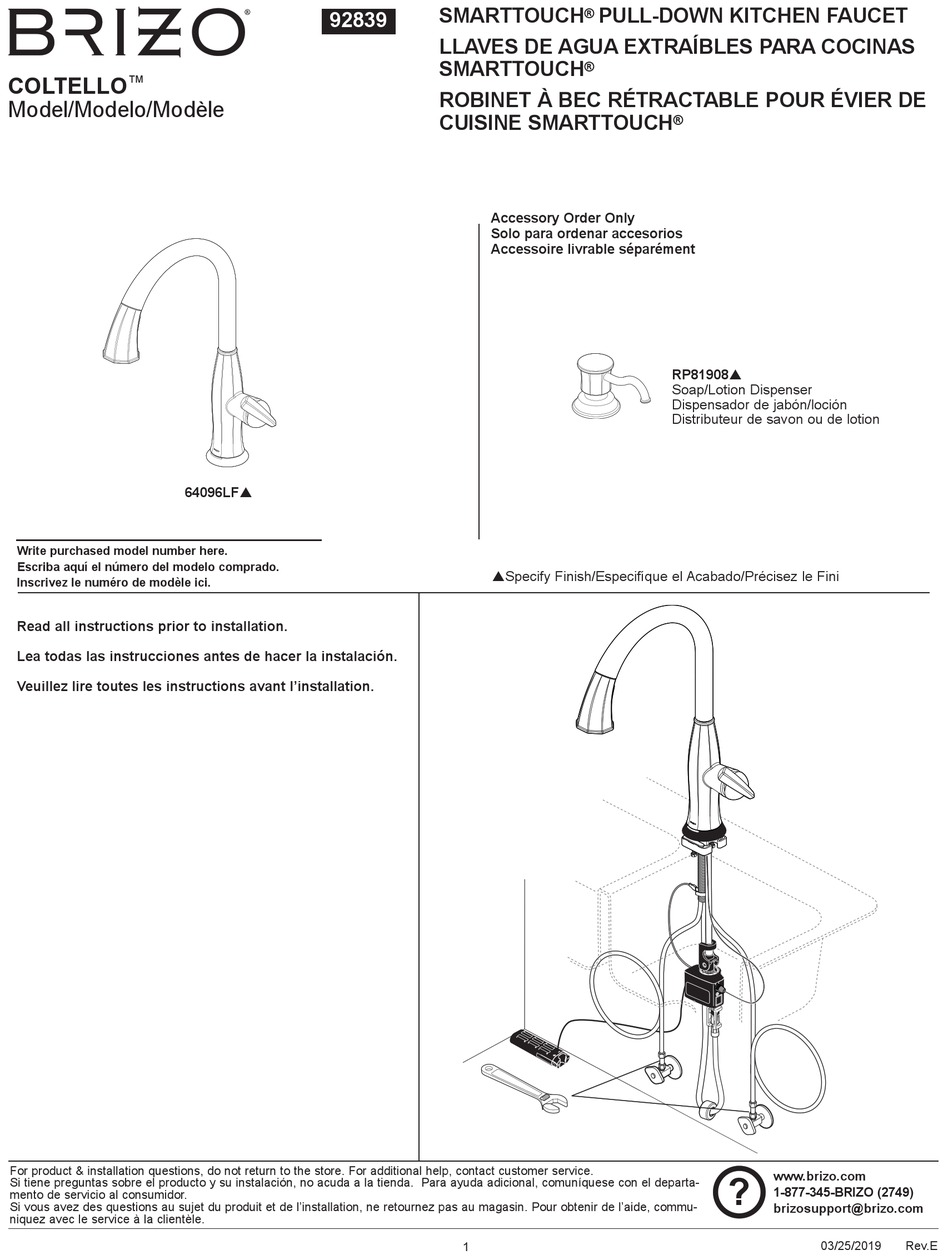

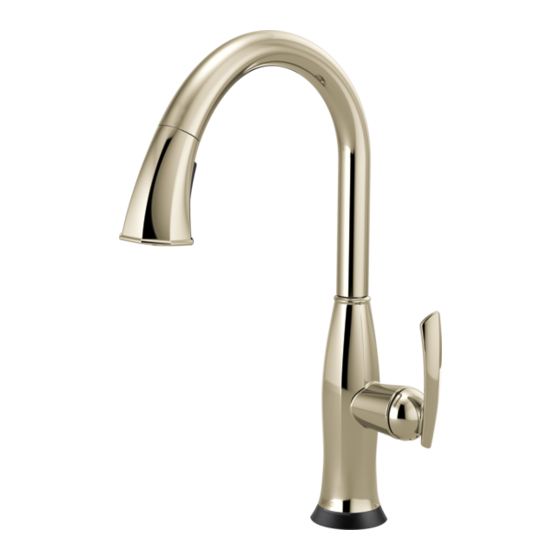

COLTELLO
™
Model/Modelo/Modèle
64096LFp
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Read all instructions prior to installation.
Lea todas las instrucciones antes de hacer la instalación.
Veuillez lire toutes les instructions avant l'installation.
For product & installation questions, do not return to the store. For additional help, contact customer service.
Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa-
mento de servicio al consumidor.
Si vous avez des questions au sujet du produit et de l'installation, ne retournez pas au magasin. Pour obtenir de l'aide, commu-
niquez avec le service à la clientèle.
SMARTTOUCH
92839
LLAVES DE AGUA EXTRAÍBLES PARA COCINAS
SMARTTOUCH
ROBINET À BEC RÉTRACTABLE POUR ÉVIER DE
CUISINE SMARTTOUCH
Accessory Order Only
Solo para ordenar accesorios
Accessoire livrable séparément
pSpecify Finish/Especifíque el Acabado/Précisez le Fini
1
PULL-DOWN KITCHEN FAUCET
®
®
®
RP81908p
Soap/Lotion Dispenser
Dispensador de jabón/loción
Distributeur de savon ou de lotion
?
www.brizo.com
1-877-345-BRIZO (2749)
brizosupport@brizo.com
03/25/2019
Rev.E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brizo COLTELLO 64096LF Series
Summary of Contents for Brizo COLTELLO 64096LF Series
- Page 1 Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa- 1-877-345-BRIZO (2749) mento de servicio al consumidor. Si vous avez des questions au sujet du produit et de l’installation, ne retournez pas au magasin. Pour obtenir de l’aide, commu- brizosupport@brizo.com...
- Page 2 You may need: Usted puede necesitar: Articles dont vous pouvez avoir besoin: 1/8" Ensure tab on base (6) is in sink hole. Asegúrese de que la lengüeta en la base (6) esté en el orificio del fregadero. Assurez-vous que la patte sur la base (6) se trouve dans le trou de l’évier. OPTIONAL ESCUTCHEON INSTALLATION / INSTALACIÓN OPCIONAL DE UNA CHAPA / INSTALLATION DE LA PLAQUE DE FINITION FACULTATIVE Insert D...
- Page 3 SEALANT OVERTIGHTEN SELLADORES APRIETES DEMASIADO PRODUITS D’ÉTANCHÉITÉ TROP SERRER NOTE: If you determine the PEX supply tubing for this faucet is too long and must be shorter to create an acceptable installation, follow the instruction for Custom Fit Connections. NOTE: If you determine the PEX supply tubing for this faucet is too long and must be shorter to create an acceptable installation, follow the instruction for Custom Fit Connections.
- Page 4 Side View Vista lateral Vue latérale Side View Vista lateral Vue latérale Wire must extend away from solenoid. Asegúrese que el alambre se extiende alejado del solenoide. Prenez soin de placer les fils à l’écart de l’électrovanne. 92839 Rev. E...
- Page 5 IMPORTANT For proper functionality DO NOT tie, twist or bunch the wires. Para un funcionamiento adecuado NO amarre, tuerza o agrupe los alambres. Pour que le répartiteur électronique fonctionne bien, ÉVITEZ de nouer, d’entortiller ou d’enrouler les fils. “AA” Batteries (Last up to 2 years) Pilas “AA”...
- Page 6 Sistema de protección contra el contraflujo Su llave de agua tipo deslizable Brizo ® tiene un sistema de protección para el contraflujo, incorpora, que ha sido probado para cumplir con los requisitos de ASME A112.18.3 y ASME A112.18.1 / CSA B125.1.
- Page 7 CUSTOM FIT CONNECTIONS / CONEXIONES ESPECIALES / SPÉCIAUX TUYAUTERIE BRANCHEMENT Installer accepts the responsibility to cut supply tubing in a way that allows a leak-free joint to be created. Brizo is not responsible for tubing that is cut too short or cut in a way that will not allow for a leak-free joint. Must use RP50952 sleeves supplied with model and nuts included on supply lines.
-
Page 8: Maintenance
Solenoid Filter Solenoide Filtro Électrovanne Filtre Maintenance If faucet exhibits very low flow – TURN OFF WATER remove and replace filter (9). drip for a very short period after the faucet is shut off. SUPPLIES. This is a natural occurrence caused by the long flexible If faucet leaks from under handle or from spout hose. -
Page 9: Cleaning And Care
Instructions de nettoyage Cleaning and Care Limpieza y Cuidado de su Llave Il faut le nettoyer avec soin. Même si son fini est Care should be given to the cleaning of this product. Tenga cuidado al ir a limpiar este producto. Aunque su extrêmement durable, il peut être abîmé... - Page 10 Solenoid Troubleshooting Note: Normal operation of the faucet will turn off water flow if faucet is not touched for 4 minutes. the spray head inlet. Move handle to the “on” position to verify water is reaching the sprayer. 1. If your spout indicates three red flashes, replace the batteries. If the spout still indicates three red Replace spray head.
- Page 11 ™ COLTELLO RP93410 Models/Modelos/Modèles Filter EP92546 Filtro Solenoid Assembly Filtre 64096LFp Ensamble de Solenoide Électrovanne For PC, SS & PN finishes, order EP92546 For RB finish, order EP92546XX Para acabados PC, SS y PN, ordene EP92546 RP13938 Para acabados RB, ordene O-Ring (2) EP92546XX Anillo “O”...
- Page 12 Accessory Order Only / Solo para ordenar accesorios / Accessoire livrable séparément Soap Dispenser Installation Recommended spacing between holes for faucet and soap dispenser is RP78487p 4" (101.6 mm) minimum. Body Assembly Separate head (1) from body assembly (2). Make sure gasket (3) is RP75675p Ensamble del properly seated in the base of the body assembly.
- Page 13 RESULTING FROM REASONABLE WEAR AND TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE are not covered by this warranty. Brizo Kitchen & Bath Company shall not be liable for any damage to the product PRODUCT FOR AN UNINTENDED APPLICATION, FREEZING WATER, ABUSE, NEGLECT OR IMPROPER...
- Page 14 92839 Rev. E...
- Page 15 92839 Rev. E...
- Page 16 92839 Rev. E...
