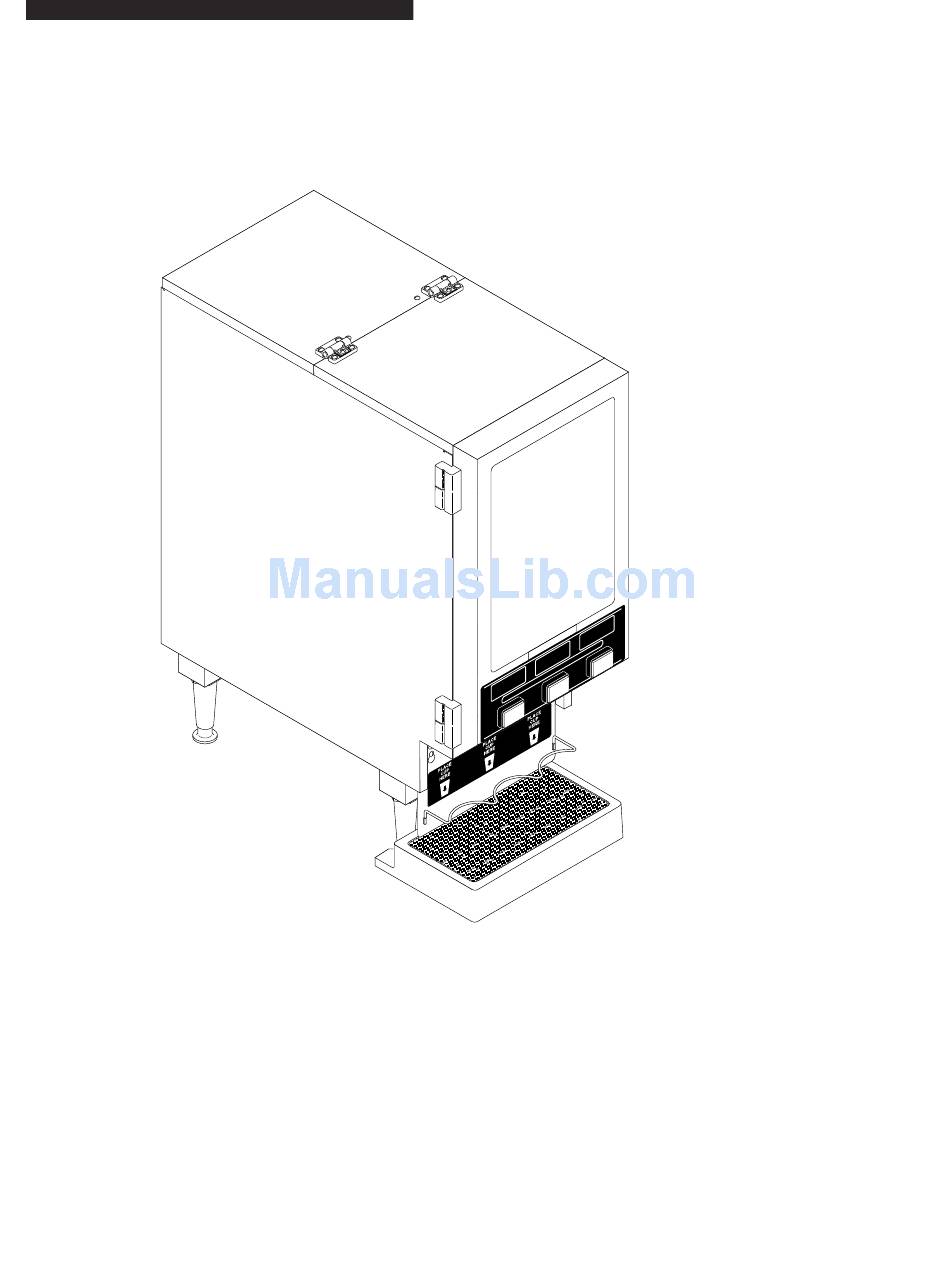

BUNN
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
26531.0000 03/02 ©1995 Bunn-O-Matic Corporation
®
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
(prior to S/N HC00025000)
S
U I D
L I Q
O T
N : H
S E
T I O
E A
E L
C A U
N R
H E
, T
L L
F U
2 /3
P IS
C U
IL
N T
N U
T O
U T
D B
O L
d H
a n
S H
P U
N
I O
U T
C A
T
!
O
I D
U
H
I Q
L
HC-2
HC-3
www.bunnomatic.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bunn HC-2
Summary of Contents for Bunn HC-2
- Page 1 BUNN ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts BUNN-O-MATIC CORPORATION 26531.0000 03/02 ©1995 Bunn-O-Matic Corporation ® C A U are subject to change without notice. POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644...
-
Page 2: Warranty
SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND. In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages. -
Page 3: Table Of Contents
TABLE OF CONTENTS Auger Drive and Hopper Assembly ... 8 Covers, Panels and Drip Tray ... 4 Dispense Valves and Lines ... 18 Door, Lamps and Panels ... 6 Electrical Controls ... 20 Mixing/Whipper Chambers and Drive Motor ... 10 Numerical Index ... -
Page 4: Covers, Panels And Drip Tray
® BUNN COVERS, PANELS AND DRIP TRAY HC-2 HC-3 26531 060600 P899... - Page 5 Screw, Truss Head 8 - 32 x .25” Locking Decal, Caution-Hot Liquid Decal, Cup Placement (HC-3 Models) (Shown) Decal, Cup Placement (HC-2 Models) Cover, Drip Tray Drip Tray Assy (Includes 4 of item 22) Cover W/Decals, Rear & Bottom (Includes items 18 & 19)
-
Page 6: Door, Lamps And Panels
® BUNN DOOR, LAMPS AND PANELS HC-2 HC-3 E " IN S "R th e IP S itc h rs ts te rg E /R A IN IN S 5 se is h 3 to fo r g th IN G... - Page 7 Door W/Decal (Black)(Includes Item 3 - also order item 2) Door W/Decal (Black Coated)(Includes Item 3 - also order item 2) Decal, Door Front (HC-3 Models) (Shown) Decal, Door Front (HC-2 Models) Decal, Caution Hot Liquids Latch (Early Models) Latch, Magnetic Snap-in (Late Models)
- Page 8 ® BUNN AUGER DRIVE AND HOPPER ASSEMBLY FIRST TYPE AUGER DRIVE SHAFT LOW DISPENSE AUGER HOPPER SUPPORT PANEL HC-2 HC-3 FIRST TYPE P901 26531 060600...
-
Page 9: Auger Drive And Hopper Assembly
8 11 01315.0000 26401.0000 26247.0000 26496.0000 00970.0000 DESCRIPTION * HC-2 Models ** HC-3 Models Hopper Assy (22 Tooth Agitator Disk) Hopper Assy (30 Tooth Agitator Disk) Hopper Assy (22 Tooth Agitator Disk) (Low Dispense) Lid, Hopper Clip, Retainer Shaft, Wiper... -
Page 10: Mixing/Whipper Chambers And Drive Motor
® BUNN MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR HC-2 HC-3 P902 26531 031602... - Page 11 24331.0000 26393.1000 02324.0000 26493.0000 01308.0000 34179.0000 DESCRIPTION * HC-2 Models ** HC-3 Models Plate, Fan Mounting Screw, Locking Truss Head #8 - 32 x .25" Fan Assembly Tube, Exhaust Screw, Truss Head #8 - 32 x 1.50" Nut, Keps #8 - 32...
- Page 12 ® BUNN TANK, HEATER AND OVERFLOW PROTECTION 10 11 12 13 14 15 HC-2 HC-3 P903 26531 060600...
-
Page 13: Tank, Heater And Overflow Protection
TANK, HEATER AND OVERFLOW PROTECTION ITEM PART NO. QTY. 23199.0002 00908.0000 22978.0000 00943.0000 20201.4151 20201.4150 20201.0750 24547.0001 00970.0000 02332.0002 26636.0000 00970.0000 00942.0000 02536.0000 26665.1000 00908.0000 20203.0100 01501.0000 26503.0000 00929.0001 29329.1000 03803.0000 00946.0000 03807.0000 - - - - - - - - 03633.0000 12552.0000 00908.0000... -
Page 14: Strainer, Solenoid, Fill Valve And Lines
® BUNN STRAINER, SOLENOID, FILL VALVE AND LINES Solenoid Valve Repair Parts 22 21 24 23 12 13 Fill Valve Repair Parts HC-2 HC-3 P904 26531 060600... - Page 15 STRAINER, SOLENOID, FILL VALVE AND LINES ITEM PART NO. QTY. 20202.0100 00425.0000 12422.0000 - - - - - - - - 26443.0000 12422.0001 - - - - - - - - 26135.0001 02331.0001 00971.0000 26275.0000 - - - - - - - - - - - - - - - - 25998.0000 25999.0000...
- Page 16 ® BUNN STRAINER, SOLENOID, FILL VALVE AND LINES Solenoid Valve Repair Parts 22 21 24 23 (Continued) 12 13 HC-2 HC-3 Fill Valve Repair Parts P904 26531 060600...
- Page 17 STRAINER, SOLENOID, FILL VALVE AND LINES ITEM PART NO. QTY. 01101.0000 01111.0000 01079.0000 00400.0001 26748.0000 - - - - - - - - 11707.1000 11707.1001 11707.1002 20976.1000 20976.1001 20976.1002 26131.0000 DESCRIPTION Solenoid Valve Coil, 120V Solenoid Valve Repair Parts Solenoid Valve Repair kit Solenoid Valve Base Elbow, Male .25"...
-
Page 18: Dispense Valves And Lines
® BUNN EARLY MODELS DISPENSE VALVES AND LINES HC-2 HC-3 HC-2 Models only P905 26531 060600... - Page 19 20976.1000 20976.1001 20976.1002 26942.0000 26942.0001 DISPENSE VALVES AND LINES DESCRIPTION * HC-2 Models ** HC-3 Models O-Ring Valve, Liquid Dispense Screw, Truss Head #10 - 32 x .375" Plug, O-Ring Retainer, Plug Screw, Truss Head #10 - 32 x .375"...
-
Page 20: Electrical Controls
HC-2 ® BUNN ELECTRICAL CONTROLS HC-3 FIRST TYPE 12VDC POWER SUPPLY 26663.0000 DISPENSE SWITCHES P906 26531 060600... - Page 21 Terminal Block, 3 Pole - RED/WHT/BLK Nut, Keps #8 - 32 Ballast, 120V-60HZ W/Terminals Nut, Keps #8 - 32 Switch Assembly, Illuminated W/Terminals (Includes mounting nut) (1 less used on HC-2 Models) Thermostat/Bracket Assembly 120V Nut, Keps #8 - 32 Grommet Connector, Cord Ground Screw W/Terminal Washer #10 - 32 x .50"...
-
Page 22: Numerical Index
PART NO. PAGE NO. PART NO. 00400.0001 ... 17 03807.0000 ... 13 00408.0001 ... 15 03996.0000 ... 5 00425.0000 ... 15 04502.0000 ... 21 00443.0000 ... 15 05761.0000 ... 21 00450.0000 ... 21 05762.0000 ... 21 00459.0001 ... 15 05920.0000 ... 7 00463.0000 ...
