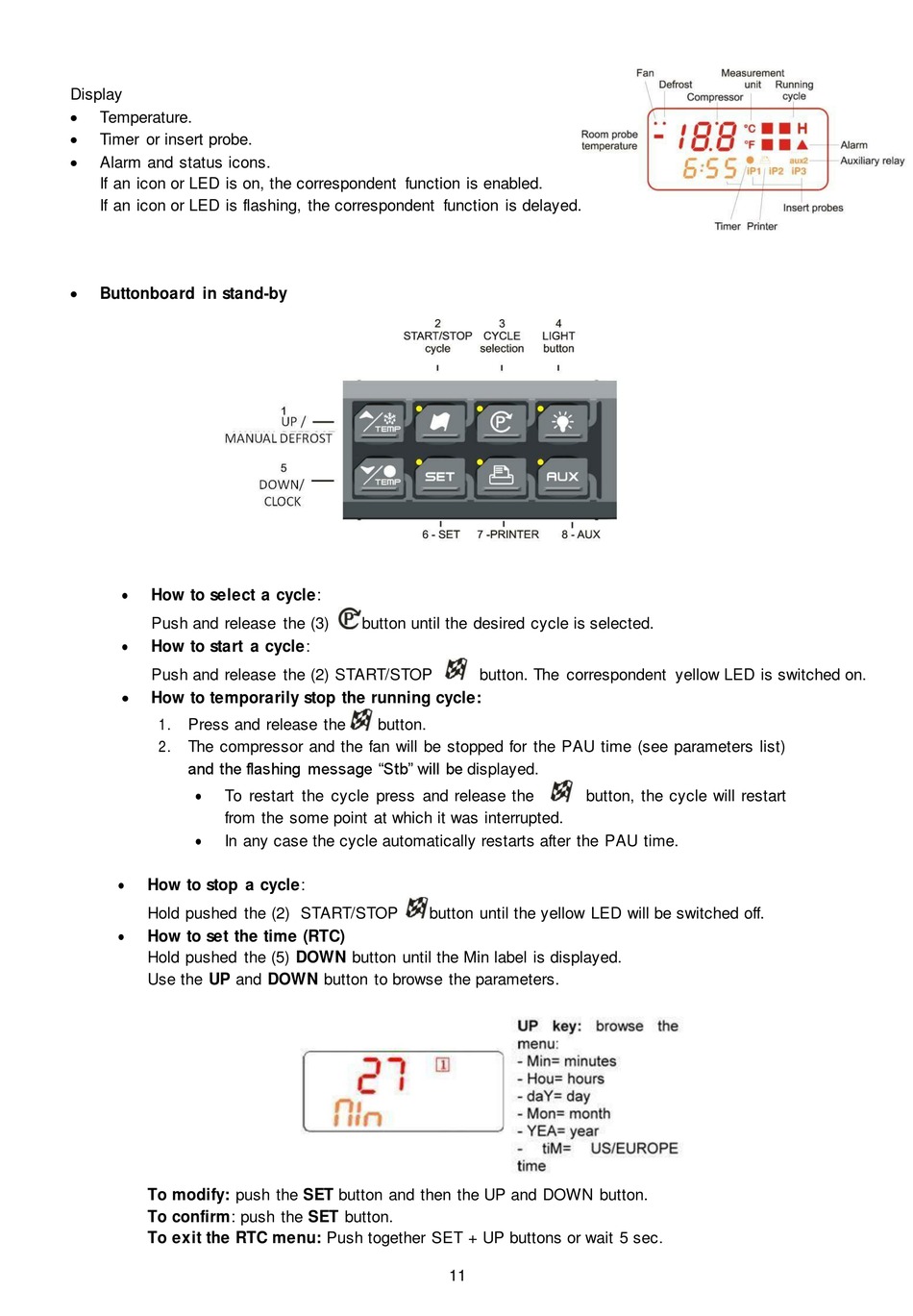

Modena BZ 1014 User Manual Book page 11

Display

Temperature.

Timer or insert probe.

Alarm and status icons.
If an icon or LED is on, the correspondent function is enabled.
If an icon or LED is flashing, the correspondent function is delayed.

Buttonboard in stand-by

How to select a cycle:
Push and release the (3)

How to start a cycle:
Push and release the (2) START/STOP

How to temporarily stop the running cycle:
1. Press and release the
2. The compressor and the fan will be stopped for the PAU time (see parameters list)
and the flashing message "Stb" will be displayed.

To restart the cycle press and release the
from the some point at which it was interrupted.

In any case the cycle automatically restarts after the PAU time.

How to stop a cycle:
Hold pushed the (2) START/STOP

How to set the time (RTC)
Hold pushed the (5) DOWN button until the Min label is displayed.
Use the UP and DOWN button to browse the parameters.
To modify: push the SET button and then the UP and DOWN button.
To confirm: push the SET button.
To exit the RTC menu: Push together SET + UP buttons or wait 5 sec.
button until the desired cycle is selected.
button. The correspondent yellow LED is switched on.
button.
button until the yellow LED will be switched off.
11
button, the cycle will restart
