Char-Broil QUICKSET TRADITIONAL 463732004 Assembly Manual

Items to Assemble:
See Use & Care Manual for "Match Lighting Instructions" and to
13
1 Grease Clip
perform the Burner Flame Check" and important safety
1 Tank Wire Support Bracket
instructions before using.
1 LP Tank
Hang grease clip from center of grill bottom.
Use an empty soup can (not included) to hang
from grease clip.
LP tank is shipped empty. Fill and leak check before
attaching to grill and regulator.
CAUTION
!
• Failure to install can in clip will cause hot grease
to drip from bottom of grill with risk of fire or
property damage.
• Tank collar opening must face to front of cart
once tank is attached.
• Failure to install tank correctly may allow gas
hose to be damaged in operation, resulting in
the risk of fire.

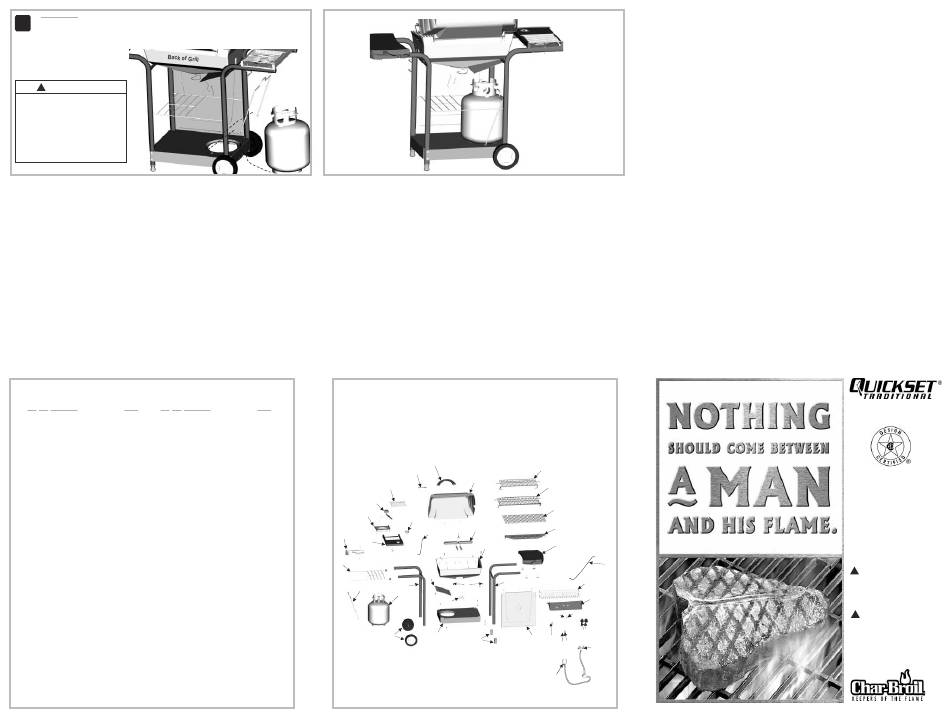

Parts List - Model 463732004
Key Qty. Description Part # Key Qty. Description
A 1 Condiment Basket . . . . . . . . . . . . 4151017 V 2 Valve Clip . . . . . . . . . . . . . . . . . . . 4151043
B 1 Tank Wire Support Bracket . . . . . 4151019 W 1 Burner/Collector Assembly. . . . . . 4505084
C 1 Wire Shelf . . . . . . . . . . . . . . . . . . 4151033 X 1 Control Panel Assembly. . . . . . . . 4526113
D 1 Lower Warming Rack. . . . . . . . . . 4152124 Y 1 Sideburner Valve Cup . . . . . . . . . 4154476
E 1 Grate . . . . . . . . . . . . . . . . . . . . . . 4152739 Z 1 Grill Bottom . . . . . . . . . . . . . . . . . 4580578
F 1 Toolholder . . . . . . . . . . . . . . . . . . 4154273 AA 1 Grill Top . . . . . . . . . . . . . . . . . . . . 4581974
G 1 Handle . . . . . . . . . . . . . . . . . . . . . 4154488 BB 1 Sideburner Knob . . . . . . . . . . . . . 4154471
H 1 Right Shelf . . . . . . . . . . . . . . . . . . 4154542 CC 1 Logo Plate . . . . . . . . . . . . . . . . . . 4157147
I 2 Wheel Assemblies . . . . . . . . . . . . 4310002 DD 1 Sideburner . . . . . . . . . . . . . . . . . . 5068026
J 1 Sideburner Grate . . . . . . . . . . . . . 4156376 EE 1 Sideburner Ignitor Wire, 24". . . . . 5156109
K 1 Upper Warming Rack. . . . . . . . . . 4156448 FF 1 Valve/Hose/Regulator Assy . . . . . 4524192
L 1 LP Tank . . . . . . . . . . . . . . . . . . . . 4158015 GG 2 Control Knobs . . . . . . . . . . . . . . . 4154470
M 1 Grease Clip . . . . . . . . . . . . . . . . . 5156607 HH 2 Leg Extenders . . . . . . . . . . . . . . . 4154577
N 1 V-Bar . . . . . . . . . . . . . . . . . . . . . . 4500290 II 1 Ignitor Wire, 11" . . . . . . . . . . . . . . 4153196
O 1 Heat Shield . . . . . . . . . . . . . . . . . 4500305 JJ 1 Ignitor . . . . . . . . . . . . . . . . . . . . . . 5156113
P 1 Sideburner Frame . . . . . . . . . . . . 4501705 - - 1 Hardware, Cart. . . . . . . . . . . . . . . 4254077
Q 2 Leg Assemblies . . . . . . . . . . . . . . 4503205 - - 1 Hardware, Shelf . . . . . . . . . . . . . . 4254050
R 1 Bottom Shelf . . . . . . . . . . . . . . . . 4503162 - - 1 Hardware, Sideburner . . . . . . . . . 4254051
S 1 Panel . . . . . . . . . . . . . . . . . . . . . . 4503164
T 1 Sideburner Body . . . . . . . . . . . . . 4310005
Optional Assemble Hardware
We realize some customers prefer to use tools.
U 4 Self-tap Screw, #10x1/2 . . . . . . . . 4080043
have been provided for you to use.
Part #
G
CC
J
DD
P
BB
II
F
T
C
O
Q
B
L
R
I
I
Optional hex nuts
Correct position of LP Tank and
Tank Wire Support Bracket
K
AA
D
E
N
W
H
Z
EE
Q
A
U
X
M
U
U
GG
S
HH JJ
V
FF
Y
463732004
ASSEMBLY MANUAL
THIS GRILL IS FOR
OUTDOOR USE ONLY
CAUTION: Read and follow all safety
statements, assembly instructions,
and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER:
these instructions with consumer.
CONSUMER: Keep this manual for
future reference.
WARNING
!
Failure to follow all manufacturer's
instructions could result in serious
personal injury and/or property
damage.
CAUTION
!
Some parts may contain sharp edges
– especially as noted in the manual!
Wear protective gloves if necessary.
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
Columbus, GA
463732004 / 4165381 (11-26-03) - 1
