1.0 Introduction I
The WLM-L11G protects customers'
investments over the long term. Buffalo's new
WLAN product, WLM-L11G, is the
IEEE802.11b-based access point (AP) with
room to grow to IEEE802.11a or
IEEE802.11g, depending on the user's needs.
The Buffalo solution offers simultaneous
communication on both 5GHz and 2.4GHz
bands without annoying bottlenecks. High
reliability, manageability and standard Buffalo
features are integrated in the product and will
assure easy management and high quality
signal communication. The WLM-L11G's
versatility will allow indoor as well as outdoor
(station-to-station) applications.
1.1 Summary of Features
• Expandable from 802.11b to higher data
rates such as 802.11a or 802.11g
• Updated and extensive security (128-WEP,
802.1x/EAP, TKIP, RADIUS)
• Network integrity (fault tolerance, link
integrity, spanning tree)
• Network load distribution (load balancing,
repeater, WDS)
• Interoperable with IEEE802.11b Wi-Fi™‚
compliant equipment
• Roaming, best access point selection and
traffic filtering (IP and MAC address)
• ESS-ID "any" rejection option
• Configurable through web browser
• Command line setup by Telnet and/or a
serial console
• Downloadable firmware update
• Long range (diversity antenna) and even
longer range (with additional outdoor
antenna)
• Bridge to multiple networks, or AP-to-AP
communication
• Outdoor point-to-multipoint broadcasting
• Repeating function support
• Power over Ethernet, PoE, for convenient
power supply
• Auto MDI/X port for any CAT5 type
cables
• Other network administrative functions
2.0 Package Contents
The AirStation™ WLM-L11G package
consists of the following items. If any item is
missing, please contact the seller.
1. WLM-L11G Access Point
2. AC adapter
3. Power cable
4. Mini-DIN 8 pin-Dsub 9 pin cross serial
cable
5. WLM-L11G Manual
6. AirStation Driver CD
7. Warranty and Registration card
3.0 System Requirements
The system requires IP routing externally. The
TCP/IP protocol must be loaded on each PC
used in the system. Other requirements:
• One broadband Internet connection via an
existing LAN system.
• A router, a hub or a switching hub
• UTP network cable with RJ-45 connector
• Internet Explorer 4.0 or higher, or
Netscape Navigator 4.0 or higher

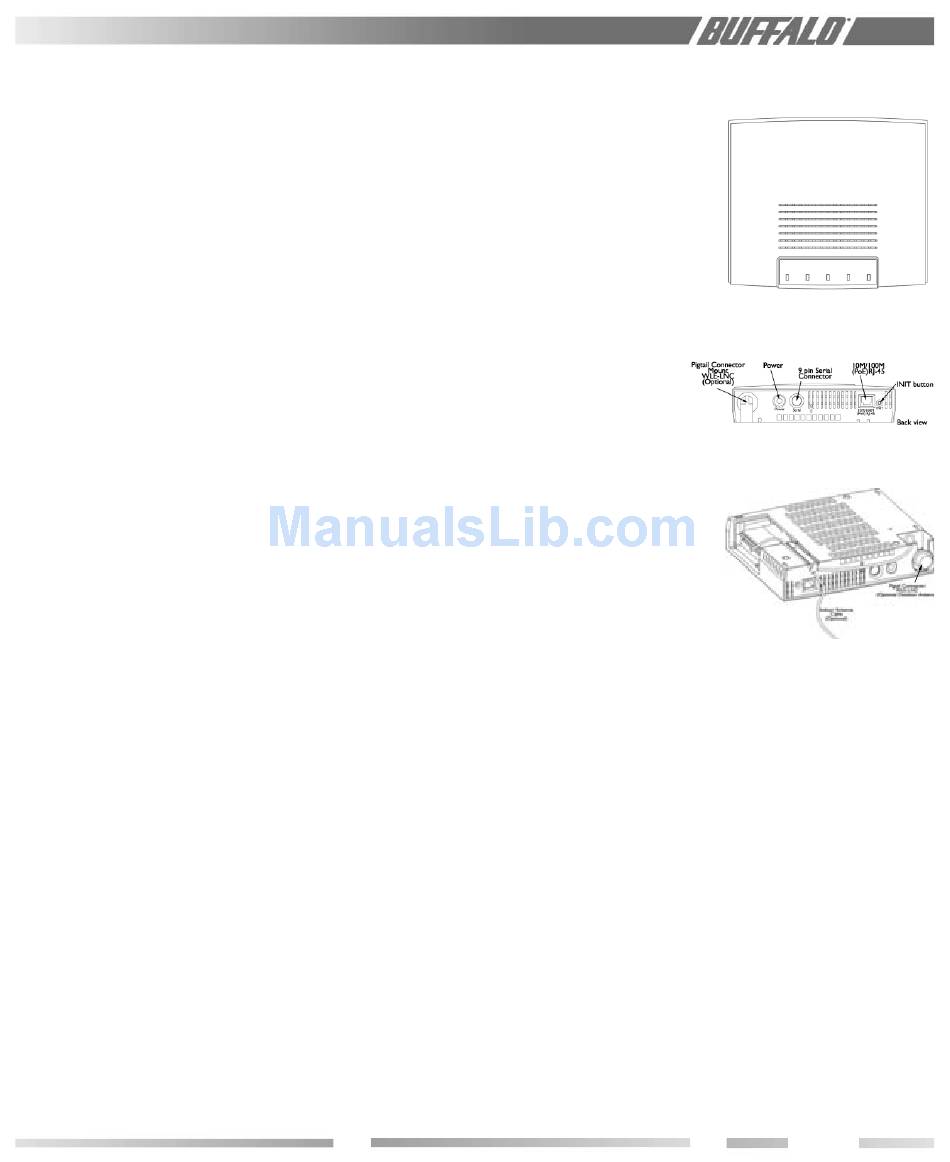

4.0 Product Views
TOP VIEW
BACK VIEW
SIDE VIEW
1
