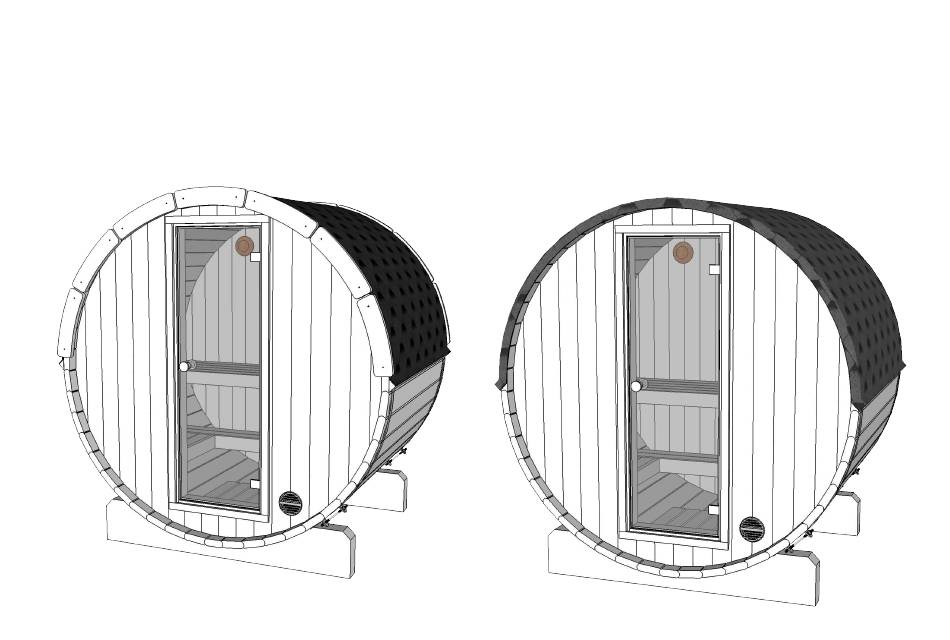

- Page 1 Sauna 160, Ø200 Please read whole manual before You start. All given measurements are in millimeters.
- Page 2 Sauna 160, Ø200 Details list nr.1...
- Page 3 Sauna 160, Ø200 Details list nr.2 x1 kmpl. If Your sauna heater If Your sauna heater BC 35 or smaller. BC 45 or bigger. ~1kg...
- Page 4 Sauna 160, Ø200 mm=mm 2xDET 1 1600 2xDET A...
- Page 5 Sauna 160, Ø200 4 x DET 3a 4 x DET 3b mm=mm 2x M 1x DET 2...
- Page 6 Sauna 160, Ø200 16x M...
- Page 7 Sauna 160, Ø200 2xDET P Drill 2 holes into DET 2 Ø10mm. 90°...
- Page 8 Sauna 160, Ø200 6x I Back 6x I Back Front Wall configuration depends on the model. For half moon and front glass wall installation, please check extra pages. Front...
- Page 9 Sauna 160, Ø200 4x H Use waterlevel. NB! Arrow down. ~7mm Wall configuration depends on the model. Important! Keep distance!
- Page 10 Sauna 160, Ø200 Check page 6A 16 x H 11x DET 3a 10x DET 3b 16xH 8x DET 3a ~7mm 8x DET 3b 16xH Important! Keep distance!
- Page 11 Sauna 160, Ø200 Glue Use glue between boards. DET 6a 4xH(M) Important !!! DET 6b...
- Page 12 Sauna 160, Ø200 2x DET B Remove ~100 Use strap! Remove screws Important! Remove screws and use them on further sauna installation! During assembly and retightening the threaded rods, use oil Remove (Würth HPS 1400 or similar) screws to avoid "cold welding" and it is also easier tightening.
- Page 13 Sauna 160, Ø200 Cut out, follow the guidelines. Remove all Remove all brackets. brackets.
- Page 14 Sauna 160, Ø200 1xDET G 3x K 1xDET F 3x K 2xDET F 3x K 3x K...
- Page 15 Sauna 160, Ø200 2x H 1xDET 8 1xDET 9 1xDET 11 Drill hole Ø4mm before screw 4x M 6x H 2xDET 10 4x H 2x H Drill hole Ø4mm 2xDET 11 before screw...
- Page 16 Sauna 160, Ø200 1xDET 12 2x M 4x H 4x M 1x DET 14 1xDET 13 2x DET 14c 2x DET 14d...
- Page 17 Sauna 160, Ø200 Horizontally fix screw 1x DET 14 in every board. Use waterlevel for door installation. NB! Place door from inside. 18x H Push door against the wall and fix it 14x J 4x H 8x H from other side. 2x DET 14a 2x DET 14b 1x DET 15...
- Page 18 Sauna 160, Ø200 7x K If Your sauna heater BC 35 or smaller. NB! Drill hole Ø4mm before screw. 8x I 1x DET 16 1x DET 17d 1x DET 17c 1x DET 17b 1x DET 17e 1x DET 17a NB! Place sauna NB! Drill holes Ø4mm NB! Drill holes Ø4mm heather first.
- Page 19 Sauna 160, Ø200 DET N Model with endboards. NB! Check also shingles installation ~10mm manual inside shingles packages. 8x H 2xDET 22...
- Page 20 Sauna 160, Ø200 DET N Model with endboards. NB! Check also shingles installation manual inside shingles packages. Remove DET A 14x DET 23 DET O Cut off Cut and use it on other end 28x H...
- Page 21 Sauna 160, Ø200 DET N Model without endboards. 50mm 50mm NB! Check also shingles installation ~10mm manual inside shingles packages. 8x H 2xDET 22...
- Page 22 Sauna 160, Ø200 Model without endboards. NB! Check also shingles installation manual inside shingles packages. Bend overlap to the edge Cut off Bend overlap to the edge and fix with clout nails and fix with clout nails 50mm 50mm DET O Cut and use Cut off it on other side...
- Page 23 Sauna 160, Ø200 Model without endboards. NB! Check also shingles installation manual inside shingles packages. Remove DET N DET A...
