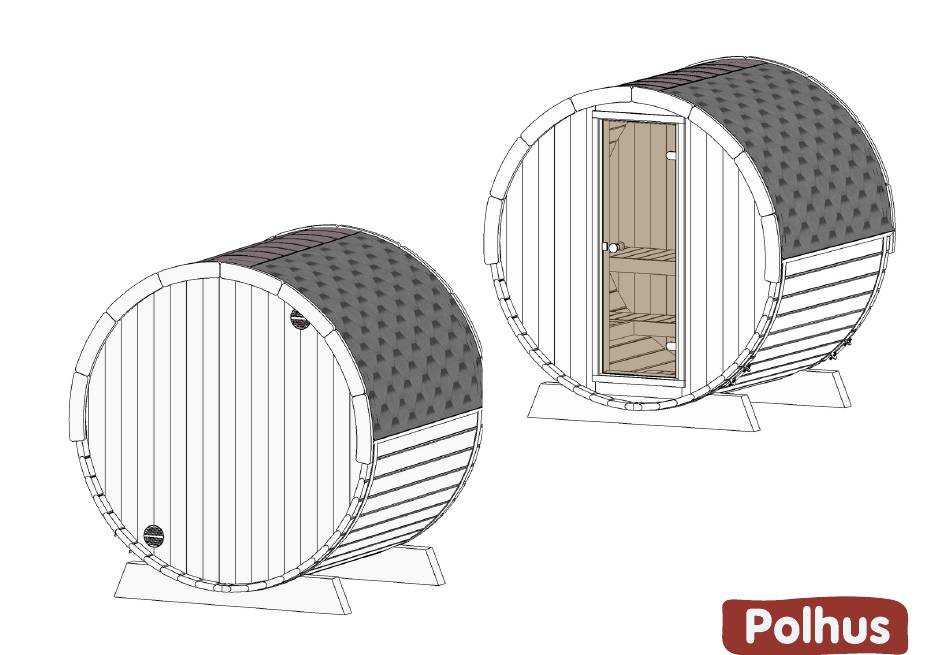

- Page 1 Sauna Edda 160, Ø200 NB! Please read whole manual before start. All given measurements are in millimeters! I20-PES-PTS-013...
- Page 2 Sauna 160, Ø200 Walls configuration. ( PES ) ( TKE ) ( PK ) ( PTS ) I20-PES-PTS-013...
- Page 3 Wooden front wall assembly Details 16x J Cut board from pallet L=~1900mm. Fix it diagonally to make wall more rigid during the installation. 2x I I20-PES-PTS-013...
- Page 4 Wooden back wall assembly Details Cut board from pallet L=~1900 mm. 4x I Bracket s inside. I20-PES-PTS-013...
- Page 5 Sauna 160, Ø200 Details list. x1 kmpl. ~310 x100 x170 I20-PES-PTS-013...
- Page 6 Sauna 160, Ø200 mm=mm 4x M DET 1 2xDET A DET 1 4x M I20-PES-PTS-013...
- Page 7 Sauna 160, Ø200 2x M DET 2 mm=mm DET 3 mm=mm I20-PES-PTS-013...
- Page 8 Sauna 160, Ø200 16x M I20-PES-PTS-013...
- Page 9 Sauna 160, Ø200 4x H Use waterlevel Check walls installation manual on extra pages! Sauna wall configuration depends on Your model! Brackets inside DET 3 Fix temporarily support walls. 4x H Important! Leave the gap ~7 mm. I20-PES-PTS-013...
- Page 10 Sauna 160, Ø200 Remove Important! Leave the gap ~7 mm. DET 3 See the next page. DET 3 I20-PES-PTS-013...
- Page 11 Sauna 160, Ø200 DET 6 DET 6 Lift nose slightly before installing combined detail. Connect 2 halves, proper size screws. I20-PES-PTS-013...
- Page 12 Sauna 160, Ø200 2x DET B DET B1 Use ratchet strap and remove all screws. DET B Do not! remove the screws if you sauna is made from thermowood! Remove DET B1 DET B ~240 mm Place collar against the leg. I20-PES-PTS-013...
- Page 13 Sauna 160, Ø200 Remove all temporary braces 1x DET G 6x K Upper vent 3x DET F Lower vent 6x K 2x DET 10a 2x DET 11a 6x H 1x DET 12a 4x H Use waterlevel for installation! I20-PES-PTS-013...
- Page 14 Sauna 160, Ø200 6x H 1x DET 12 1x DET 11 2x M 1x DET 10 2x M 1x M 2x H 1x DET 11a Cut on right size 4x M I20-PES-PTS-013...
- Page 15 Sauna 160, Ø200 1x DET 10b 4x H 1x M 1x DET 13 2x H X= Front wall thickness Wooden front wall 28mm. Glass front wall 42mm. 2x M 1x DET 21 2x DET 21c 2x DET 21d 18x H 2x M I20-PES-PTS-013...
- Page 16 Sauna 160, Ø200 Ensure door frame is pressed tightly against the wall and 1x DET 16 If Your sauna has Front glass wall, 1x DET 15a fasten from inside check Front glass wall installation manual! 1x DET 15b 2x DET 20a 2x DET 20b off, follow...
- Page 17 Sauna 160, Ø200 NB! Check also shingles installation manual inside shingles package. DET N Shingles overlap on top ~10mm Check also roof shingles installation manual inside package. Refract into pieces. DET N DET O Cut and use it other end. I20-PES-PTS-013...
- Page 18 Sauna 160, Ø200 8x DET 25 8x DET 25 16x H 16x H Remove DET A I20-PES-PTS-013...
