Morrison Bros. co. 1218C Installation, Operation And Maintenance Instructions

1218C Cellular Gateway Assembly
Installation, Operation, and Maintenance Instructions

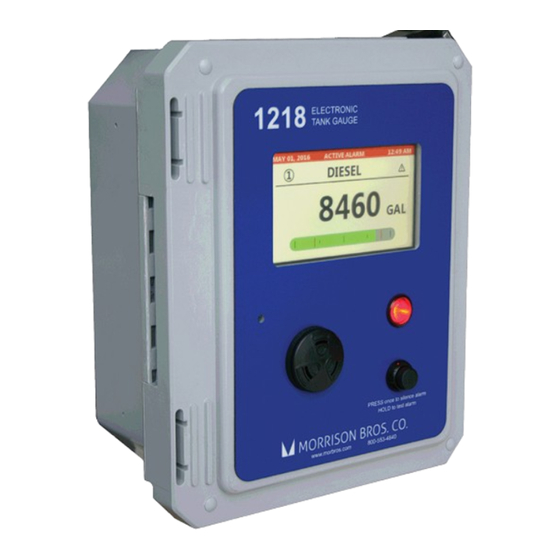

The 1218C Cellular Gateway Assembly is an accessory to the 1218C Electronic Tank Gauge. The Cellular
Gateway provides a remote access to the 1218C using a private internet connection over a 4G cellular network.

Specifications

Input Power
100 – 240 VAC, 50/60Hz
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Enclosure Rating
NEMA 4X
Maximum Wiring Distance
Ethernet – 330ft (CAT5e cable recommended)

Installation

!

Warnings

• Fire Hazard – Death or serious injury could result from spilled liquids.
• You must be trained to install or maintain this Electronic Tank Gauge. Stop now if you have not been trained.
• Any modification of this unit beyond what is outlined in this instruction will void product warranty.
• For your safety, it is important to follow local, state, federal and/or OSHA rules that apply to working
inside, above, or around the storage tank and piping area. Use all personal protective equipment required for
working in the specific environment.
• This device is intended to be used as an auxiliary warning to the operator of an abnormal condition of
the system, such as a possible overfill situation and should not be the only system in place to prevent an
unwanted condition, such as preventing a tank from overfilling. It is the sole responsibility of the operator to
continuously prevent any spillage regardless of the situation.
• Tanks could be under pressure. Vapors could be expelled from tank vents, piping, valves or fittings while
performing maintenance. Vapors could catch fire or cause an explosion. Avoid sparks, open flame, or hot
tools when working on tank system.
• Use a dampened cloth when cleaning the alarm enclosure to prevent static buildup and discharge.
• In the event of malfunction, contact Morrison Bros. Co. Customer Service.
rev. 3-22-18
Morrison Bros. Co. ‑ Dubuque, IA ‑ 800‑553‑4840
1
1218C‑0198 PP
