Supelco Timestrip 06929 User Manual

06929 Timestrip

General

®
Each Timestrip indicator is a small, self-adhesive label that can be attached to or
integrated into a product, package or carrying card (see adhesive specification in Appendix 1 below for
further details). It monitors elapsed time and indicates when key time markers and a pre-defined
elapsed time have been reached. The indication of elapsed time is irreversible. Indicators can be made
for many different temperature environments, but each product is calibrated for use in a specific
temperature environment.
®

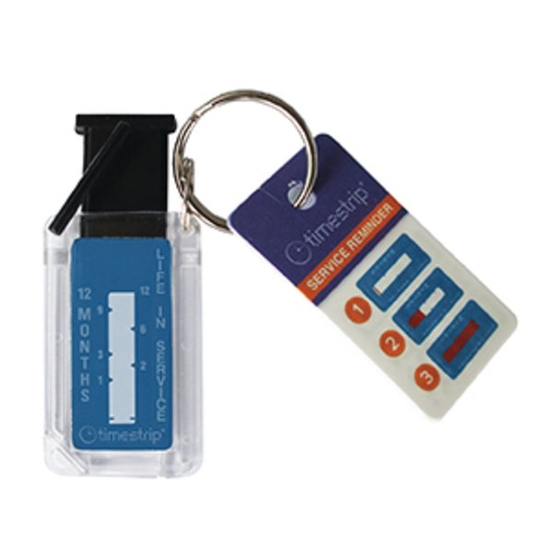

Timestrip 12 months keychain is calibrated for use at room temperature. Using this product in other
temperature environments may affect its performance.

How to use

®
Timestrip indicators are completely inert prior to activation and can be stored at room temperature.
To activate remove the small stick on the key chain and push the black lever down into the clear
plastic holder. This will press the button on the back of the indicator and release the red dye. When
the activation line appears, the indicator is armed and ready to use. The red dye will continue to
progress until the maximum elapsed time has been reached.
I)

Performance Specifications

Run-Time:
Calibration temperature:
Accuracy:
Progress Isotherms:
Activation Force*:
* Activation is applied by firmly squeezing the blister.
II)

Product Specification

Button Position:
Color of Progressing Front:
Adhesive:
Product drawing:
Graphics:
Usage:
Other:
III)

Product Construction

The indicator is constructed of a polymeric assembly multilayer and aluminum-plastic laminate.
It encapsulates colored oils. All materials are non-toxic.
IV)

Storage Conditions (un-activated)

Store in cool dark environment
•
Recommended: 22°C/72°F at 20-80% RH
•
Please note that before activation, the product can tolerate short term exposure
•
during transit (hours or a few days) to temperatures in the range -30°C to +55°C.
However, long term storage should be under recommended conditions.
VI)

Shelf-life

3 years from date of shipping
•
®
12 Months Keychain
12 months (365 days)
22°C ± 1°C
± 15 % in time under isothermal conditions
See Fig. 1
49 ± 19.6 N
Button on Bottom Layer (BOB)
Red
2641 Finger-lift 15/9 mm
See Fig. 2
See Fig. 3
The usage of the product in any assembly or
production line must be agreed upon in advance, as
it may alter performance specifications.
Not suitable for immersion in water.
