Summary of Contents for Supelco ATIS

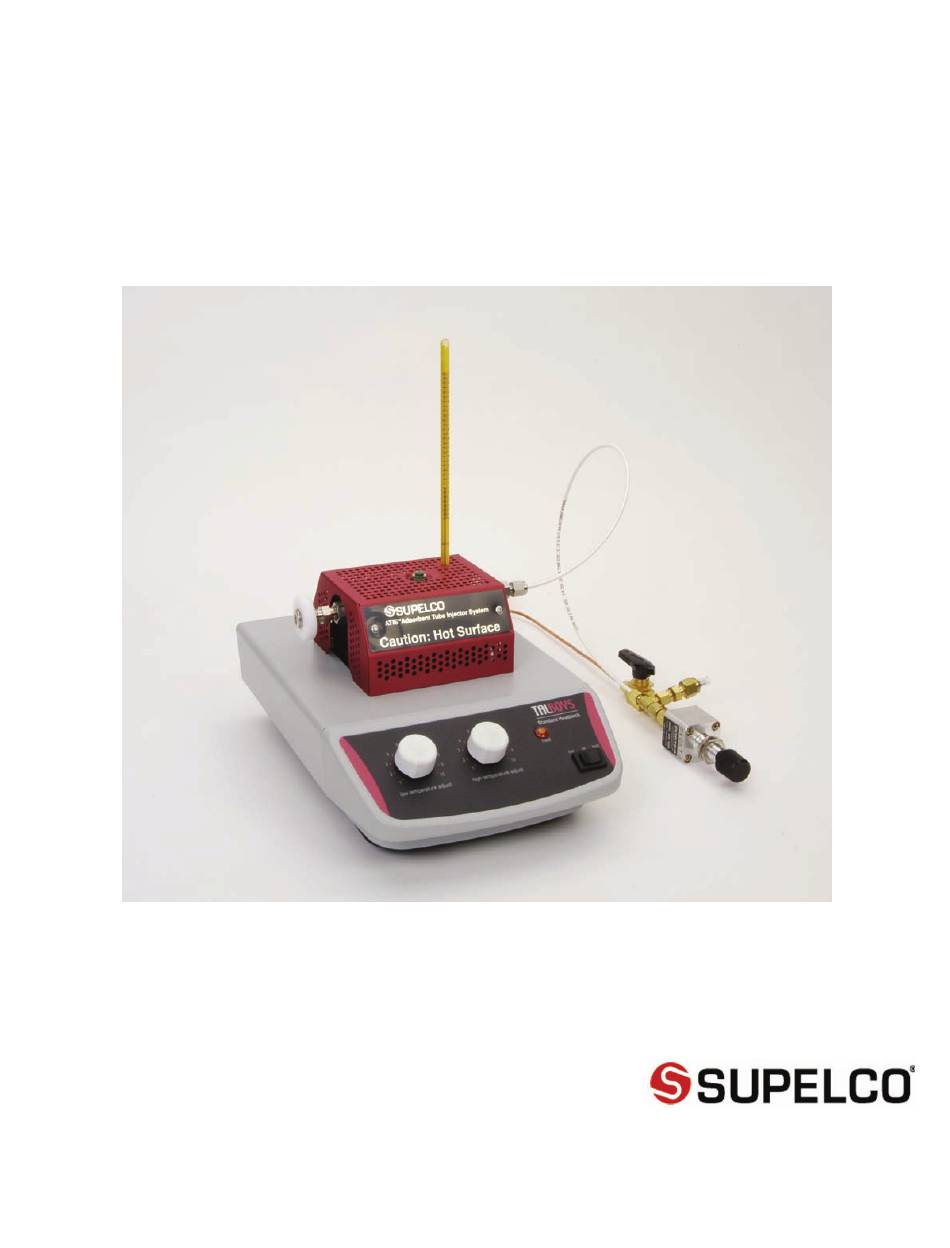

- Page 1 ™ ATIS OPERATION MANUAL Adsorbent Tube Injector System T702019A...
- Page 2 The inert gas carries the sample to the tube. After enough time has elapsed, typically less than 5 minutes, the tube is removed from the ATIS and analyzed using the appropriate technique for that adsorbent tube.
-
Page 3: Safety Information
A heat shield is provided to reduce the risk of getting burned while the ATIS is in use. The temperature of the heat shield will be approximately half of the set block temperature. - Page 4 The ATIS Components • Operation Manual 1. Block Heater 2. Injector Heater Block 3. Gas Purifier 4. Copper Tubing 1/8” OD 5. Flow Controller and On/Off Valve & Pressure Relief 6. Polypropylene Tubing 1/8” OD 7. 1/4” to 1/8” Reducing Union 8.
-
Page 5: Installation
Flow meter (to set the gas flow rate) Assembling the ATIS To assemble the ATIS requires you to cut the supplied tubing to fit your workspace and to attach the tubing to the appropriate fittings. We have installed the appropriate ferrules in each of the ®... - Page 6 Pressure should be set to 25 to 30psig after installation is complete. Using a wrench, tighten the nut 3/4 of a Danger: Do not plumb the ATIS to any turn, past fingertight. flammable gases i.e., hydrogen. This will create a fire and/or explosion hazard.
- Page 7 Note: The thermometer port is dual tapered and will accept both a normal thermometer, or a smaller diameter digital thermometer. The ATIS is now completely assembled. Your set-up should look like the picture to the right.
- Page 8 For odd size tubes use the Luer/Hose-Barb Adapter included. The pictures below illustrate some examples. NOTE: While using the ATIS, the temperature of the adsorbent tube will be close to the ambient temperature of your lab. However if the adsorbent tube is attached to the thumbwheel for a long period, the heat from the injector block will transfer to the attached adsorbent tube.
-
Page 9: Setting The Temperature
Setting the Flow Rate (Carrier Gas) Insert the type of adsorbent tube you plan to use in the thumbwheel of the ATIS, and gently tighten the thumbwheel. With the gas supply on, attach a flow meter to the opposite end of the adsorbent tube. -
Page 10: Maintenance
To accurately quantify the concentration of a sample acquired with an adsorbent tube, the analytical system must first be calibrated. The ATIS simplifies this task. Below are a few starting parameters, some experimentation may be needed to optimize the conditions for your application. - Page 11 By volatizing the compounds with the ATIS, this allows you to use the contents of the bag immediately without having to let it equilibrate overnight.
-
Page 12: Replacement Parts
To use the extraction glassware, simply remove the injection glassware from the injector heater block and reinstall the fittings as described in the assembly instruction of injection glassware. See Appendix 2: ATIS Glassware Configurations for additional information. In most extraction applications, the block... -
Page 13: Troubleshooting
May need to install additional gas purification. • The calibration standard or sample may have flashed back into the pneumatics of the ATIS. This may require you to purchase a new flow controller, on/off valve, and to replace the tubing. Contact our... -
Page 14: Questions And Answers
Then after sampling, reweigh the tube. If the difference is greater than 2 milligrams you may want to remove the moisture prior to analysis. Attach the tube to the ATIS and allow 0.5 to 1 Liter of the carrier gas to pass through the tube. Reweigh the tube. The adsorbent tube can be considered dry when it is within 1.0mg of the weight of the tube prior to sampling. -
Page 15: Appendix 1: Atis Pneumatic Diagram
Appendix 1: ATIS Pneumatic Diagram Suggested operating pressure to 25-30psig Maximum operating pressure 60psig (Regulator not included) Regulator Copper Tubing Gas Purifier Copper Tubing Orange 1/4" M-2 Vespel Ferrule White Polypropylene Tubing Half-Hole Septa SS Union 1/4" to 1/4" with Thumbwheel... -
Page 16: Appendix 2: Atis Glassware Configurations
Appendix 2: ATIS Glassware Configurations 1. Standard Injection Glassware Cat# 28526-U 2. Extraction Glassware with Ground Joint Cat# 28524-U 3. Extraction Glassware with Micro Connector Cat# 28523-U SS Union 1/4" to 1/4" with Thumbwheel White Polypropylene Tubing SS Reducing Union 1/4"...
