Deck-Mount Swan-Neck Basin Spout 13¼" H
Raised Deck-Mount Swan-Neck Basin Spout 19" H
Deck-Mount Swan-Neck Basin Spout 15¾" H
Raised Deck-Mount Swan-Neck Basin Spout 19" H
Raised Deck-Mount Basin Spout 15¾" H
Installation Guide - Guida D'installazione - Guia de Instalacion - Guide D'installation
TOX135-S
TOX135B-S
TOX235-S
®
INOX

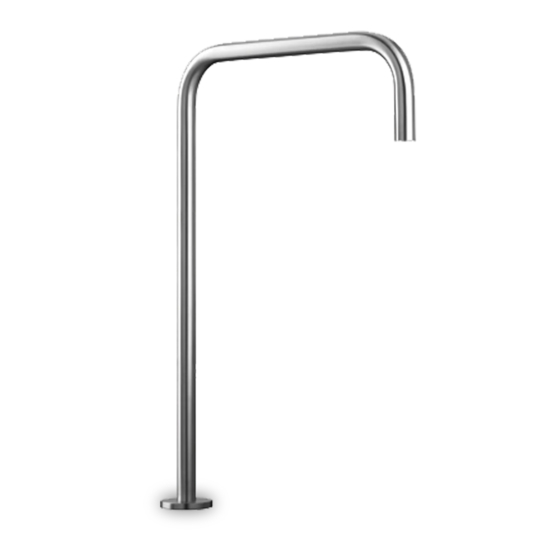

Deck-Mount Basin Spout 11¾" H
&
&
TOX136-S
TOX136B-S
TOX236-S
2016-02
blubathworks.com
Advertisement
Related Manuals for Blu Bathworks INOX TOX135-S
Summary of Contents for Blu Bathworks INOX TOX135-S
- Page 1 INOX Deck-Mount Swan-Neck Basin Spout 13¼" H Raised Deck-Mount Swan-Neck Basin Spout 19" H & Deck-Mount Swan-Neck Basin Spout 15¾" H Raised Deck-Mount Swan-Neck Basin Spout 19" H & Deck-Mount Basin Spout 11¾" H Raised Deck-Mount Basin Spout 15¾" H Installation Guide - Guida D’installazione - Guia de Instalacion - Guide D’installation TOX136-S TOX135-S...
-
Page 2: Installation Requirements
If further assistance is required, please contact: Product support at 1.866.907.0122 (09:00 - 17:00hrs PST) or email technical@blubathworks.com North America Blu Bathworks Inc. 188 Smithe Street, Vancouver BC, Canada, V6B 6A9 T+1.604.299.0122 F+1.604.299.0125 Please refer to blubathworks.com for warranty, terms & conditions under warranty & procedure for warranty service. - Page 3 EN - INSTALLATION GUIDE Unscrew the locking nut (1), remove the stainless steel washer (2) and the rubber seal (3). Make sure the Escutcheon trim (4) of the spout (5) includes the o-ring. Position the spout. Fit the rubber seal (3) and the stainless steel washer (2) on the threaded stem (6) then tighten everything with the lock nut (1).
- Page 4 EN - CLEANING/MAINTENANCE For correct cleaning of the tap, wash it only with solvent-free products. DO NOT use detergents containing corrosive or acid substances (hydrochloric, acetic or phosphoric acid), abrasive sponges and metallic scouring pads. It is advisable to use specific products for stainless steel, such as Flitz stainless steel &...
- Page 5 TOX135-S TOX136-S 2016-02 blubathworks.com ®...
- Page 6 TOX135B-S 40° TOX136B-S 40° 2016-02 blubathworks.com ®...
- Page 7 TOX235-S TOX236-S 2016-02 blubathworks.com ®...
- Page 8 TOX135-S TOX-CACHETT16.5-1,5 GPM TOX-CHIAVETT TOX-CA350C TOX-R50C TOX-O2.62x4.95 TOX-O2.62X9.92 TOX-PER22X113 TOX-G43 TOX-R42 TOX-DA1/2 TOX-G1/2 TOX-AD1/2NPT 2016-02 blubathworks.com ®...
- Page 9 TOX136-S TOX-CACHETT16.5-1.5 GPM TOX-CHIAVETT TOX-CA480C TOX-R50C TOX-O2.62X4.95 TOX-O2.62X9.92 TOX-PER22X113 TOX-G43 TOX-R42 TOX-DA1/2 TOX-G1/2 TOX-AD1/2NP 2016-02 blubathworks.com ®...
- Page 10 TOX235-S TOX-CACHETT16.5-1.5 GPM TOX-CA400Q TOX-CHIAVETT TOX-R50C TOX-O2.62X4.95 TOX-O2.62X9.92 TOX-PER22X113 TOX-G43 TOX-R42 TOX-DA1/2 TOX-G1/2 TOX-AD1/2NPT 2016-02 blubathworks.com ®...
- Page 11 TOX236-S TOX-CACHETT16.5-1.5 GPM TOX-CA300Q TOX-CHIAVETT TOX-R50C TOX-O2.62X4.95 TOX-O2.62X9.92 TOX-PER22X113 TOX-G43 TOX-R42 TOX-DA1/2 TOX-G1/2 TOX-AD1/2NPT 2016-02 blubathworks.com ®...
