Summary of Contents for Blu Bathworks Opus 2 electronica TEU211

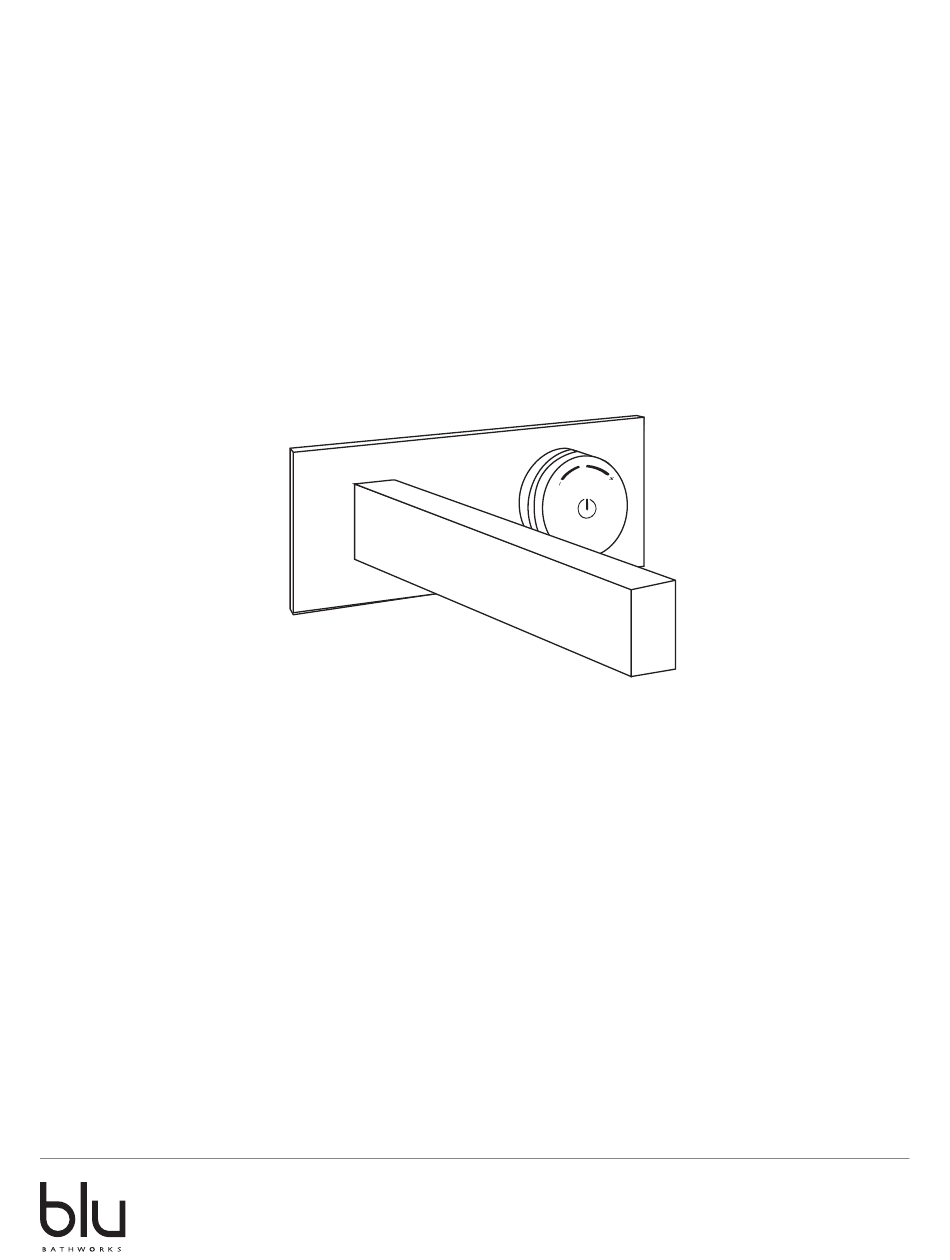

- Page 1 opus·2 electronica In-wall Basin Mixer Installation Guide TEU211 2016-03 1 866 907 0122 blubathworks.com ®...
-
Page 2: Installation Requirements
If further assistance is required, please contact: Product support at 1.866.907.0122 (09:00 - 17:00hrs PST) or email technical@blubathworks.com North America Blu Bathworks Inc. 188 Smithe Street, Vancouver BC, Canada, V6B 6A9 T+1.604.299.0122 F+1.604.299.0125 Please refer to blubathworks.com for warranty, terms & conditions under warranty & procedure for warranty service. - Page 3 Step 1 - Basin spout • Screw the rod (1) on the pipe (2). Note: Keep the slipin away from plaster by wrapping it in plastic or connect it after step 5 of this install guide. Step 2 - Assembly of the Control Fixing Bracket to the In-wall Plate •...
- Page 4 Step 3 - In-wall Rough In Plate Step 4 • Finish the wall by tiling or using drywall. • Draw a line around the bracket collars, flush with the wall. Step 5 • Cut down the bracket collars as marked. 2016-03 1 866 907 0122 blubathworks.com...
- Page 5 Step 6 • Install the supplied seal on the back of the trim plate. • Position the adaptor rings inside the plate and fix through the adaptor ring holes into the bracket collar using 15mm screws supplied (manually.) adaptor ring Note: Do no use an electric drill.
- Page 6 Step 7 • Feed the control data cables through the brackets. Note: For ease of installation, the socket can be taped to the wire. Step 8 • Position the controls into the brackets and turn clockwise to lock in position. •...
- Page 7 Step 9 • Push fit the ‘front’ control wheels onto the controls. Step 10 - Preset temperature & flow selection temperature cleaning volume regulation push & turn push & hold green tap 1x - cold tap 2x - warm tap 3x - hot turn push 2016-03...
- Page 8 UNO electronica thermostatic one outlet basin control mixer Installation Guide TEE016 2016-03 1 866 907 0122 blubathworks.com...
- Page 9 If further assistance is required, please contact: Product Support at 1.866.907.0122 (09:00 – 17:00hrs PST) or email technical@blubathworks.com North America Blu Bathworks Inc. 188 Smithe Street,Vancouver, BC, Canada, V6B 6A9 T +1.604.299.0122 F +1.604.299.0125 Please refer to blubathworks.com for warranty, terms & conditions under warranty & procedure for warranty service.
-
Page 10: Controller Installation
Controller Installation Remove the cover Inside controller Step 1 - Insert the inlet connectors Remove the retaining screw, insert the inlet connectors and re-insert then re-tighten the retaining screw. 2016-03 1 866 907 0122 blubathworks.com... - Page 11 Step 2 - Screw flexi hoses provided into inlets Step 3 - Insert the outlet connector Remove the retaining screw, insert the outlet connector and re-insert then re-tighten the retaining screw. Step 4 - Attach outlet pipework IMPORTANT: Flush through the pipework before connection! ⅜"...
- Page 12 Step 5 - Fix the controller in the correct direction correct incorrect Step 6 - Connect power cable (transformer) Step 7 - Connect interface data cable 2016-03 1 866 907 0122 blubathworks.com...
- Page 13 Step 8 - Re-fit the processor cover Step 9 - Plug the transformer into a power socket IMPORTANT: All sanitary tapware requiring an electrical connection MUST be installed by a quailfied person in accordance to local rules and regulations IMPORTANT: Once powered up, the control must be programmed within one hour following the ‘Activation set- up’...
- Page 14 User Guide to Programming electronica Basin Controller TEP131 | TEU131 | TEP211 | TEU211 | PT7001 | PT7002 Operating the Basin Controller To turn ON Press the control once, the control will illuminate Blue and water will start to flow. To turn OFF Press the control once, the water and light will turn off.
- Page 15 Setting the memory/pre-sets Up to three memory settings can be stored To set memory 1 1. Press control once 2. Set the desired temperature as indicated step 2 3. Press & hold down the control until the control flashes Purple, then release, water off 4.
- Page 16 Cleaning (safe) mode Press the control until the Green light appears, then release, this will disable the control for 60 seconds to allow the control to be cleaned without turning on the control or water. Self check mode Press and hold the control until the Orange light appears, then release knob immediately, the system will then run through a series of diagnostic checks.
- Page 17 TEU211 These installation instructions are subject to change without notice. 2016-03 1 866 907 0122 blubathworks.com ®...
- Page 18 TEU211 2016-03 1 866 907 0122 blubathworks.com ®...
- Page 19 Installation Opportunities UNO · basin TEE016 control mixer (shown wall-mounted Control cable outside series 700 vanity) Cold in Wall-mounted basin mixer controller Hot in electronica TEP211 shown Mixed Cable length Basin mixer 4ft Max outlet [1.2m] Electrical cord 3 ft [0.9m] 110V (Low Voltage) Control mixer TEE016 (in a suitable accessible area)
