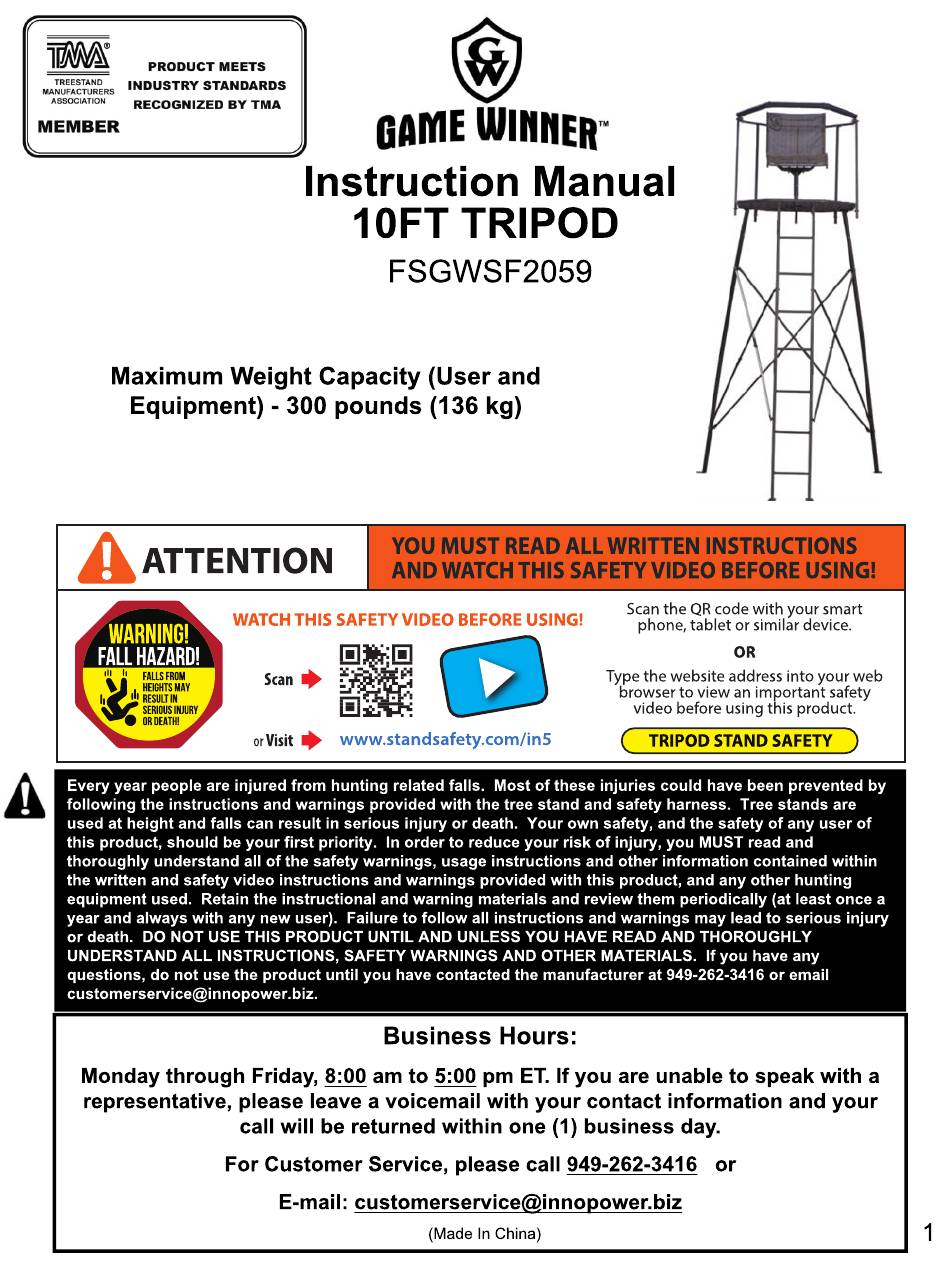

Game Winner FSGWSF2059 Instruction Manual

Game Winner FSGWSF2059 Instruction Manual

10ft tripod
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSGWSF2059 and is the answer not in the manual?

Questions and answers

Related Manuals for Game Winner FSGWSF2059

Summary of Contents for Game Winner FSGWSF2059

  • Page 2: Table Of Contents

    Table of Contents Page Warnings ……………………………………………………………………… 3-5 Parts List ……………………………………………………………………… 6-9 Tools Required ........…………………………………………… 9 Hardware ……………………………………………………………………… 10-12 Product Diagram ……………………………………………………………… 13 Assembly Instructions ……………………………………………………….. 14-24 Installation Instructions ……………………………………………………… 25-26 Care and Maintenance ………………………………………………………. 27 Warranty Information ………………………………………………………… 28 Note: Before beginning assembly of product, make sure all parts are present.

  • Page 3: Warnings

    Failure to follow this instruction may result in serious injury or death! WARNING! Thoroughly inspect this or any other Game Winner product(s) prior to use for signs of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage. DO NOT use this or any other Game Winner product(s) if they show evidence of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage.
  • Page 4 Use only Game Winner replacement parts. The product is tested to be used only with genuine Game Winner parts. Use of any other parts, which are not genuine Game Winner parts, constitutes a modification to the product and could result in serious injury or death.
  • Page 5 WARNING! Never jump from or bounce on a pod stand for any reason. Failure to follow these instructions may result in serious injury or death! WARNING! DO NOT use this or any other Game Winner product(s) if you have a history of heart problems, back problems, impaired vision, joints that lock-up, spinal fusions, equilibrium problems, high blood pressure, are not well-rested and/or any other physical impairment that may limit your ability to use and/or operate this product(s) in the safe manner outlined in this instruction manual.

  • Page 6: Parts List

    Parts List Front Platform (with 2 tabs) Back Platform (with 3 tabs) Lower Seat Post Ladder Supports Leg Supports Back Rail Uprights Front Rail Uprights...
  • Page 7 Parts List Back Rail Front Shooting Rail Upper Ladder Section Upper Leg Sections Lower Ladder Section Lower Leg Sections Male Cross Braces Female Cross Braces...
  • Page 8 Parts List 16 Seat & Backrest Frame 17 Seat Base Frame 18 Seat Support 19 Upper Seat Post 20 U-Bracket...

  • Page 9: Tools Required

    Parts List 21 Ladder Bracket 22 Leg Bracket 23 Ground Stake Tools Required (Provided) Wrench (2 pcs)

  • Page 10: Hardware

    Hardware Step M8X60 (with 2 steel washers and 1 locknut) Step M8X45 (with 2 steel washers and 1 locknut) Step M8X60 (with 2 steel washers and 1 locknut) Step M8X40 (with 2 steel washers and 1 locknut) Step M8X60 (with 3 nylon washers and 1 locknut) Step...
  • Page 11 Hardware Step M8X35 (with 2 nylon washers and 1 locknut) Step M8X55 (with 2 nylon washers and 1 locknut) Step M8X45 (with 4 shoulder washers and 1 locknut) Step Locking Pin Step M6X40 (with 2 steel washers and 1 locknut) Step M6X50 (with 2 steel washers...
  • Page 12 Hardware Step M6X35 (with 2 steel washers and 1 locknut) Step M6X40 (with 2 steel washers and 1 locknut) Step M6X60 (with 2 steel washers and 1 locknut) Step M6X16 (with 2 steel washers and 1 locknut) Step M6X16 (with 2 steel washers and 1 locknut) Step...

  • Page 13: Product Diagram

    Product Diagram Product Identification Mark for Customer Service (on #4 part)

  • Page 14: Assembly Instructions

    Assembly Instructions Step 1: Locate the Front Platform (#1) and Back Platform (#2). Install the Front Platform (#1) and Back Platform (#2) using four (4) M8x60 Bolts, eight (8) Steel Washers and four (4) Locknuts as shown in Figure1. Figure 1 Connect Front and Back Platforms Step 2: Locate the Lower Seat Post...
  • Page 15 Assembly Instructions Step 3: Locate two Ladder Supports (#4). Install the Ladder Supports (#4) onto the assembled Platform using four (4) M8x60 Bolts, eight (8) Steel Washers and four (4) Locknuts as shown in Figure Figure 3 Install Ladder Supports Step 4: Locate two Leg Supports (#5).
  • Page 16 Assembly Instructions Step 5: Locate three Back Rail Uprights (#6). A: Install each Back Rail Upright (#6) onto the Back Platform (#2) using one (1) M8x60 Bolts, two (2) Nylon Washers and one (1) Locknut M8X60 (for Upper Hole). (For Step 5-A) B: Then using one (1) M8x35 Bolts, two (2) Nylon Washers and one (1) Locknut (for...
  • Page 17 Assembly Instructions Step 7: Locate Back Rail(#8). Install the Back Rail (#8) onto the assembled Back and Front Rail Uprights using five (5) M8x55 Bolts, ten (10) Nylon Washers and five (5) Locknuts as shown in Figure 7. Figure 7 Install Back Rail Step 8: Locate Front Shooting Rail...
  • Page 18 Assembly Instructions Step 9: Locate Upper Ladder Section (#10) and two U-Brackets (#20). Install the Upper Ladder Section (#10) and two U-Brackets (#20) onto the Ladder Supports (#4) using four (4) M6x40 Bolts, eight (8) Steel Washers and four (4) Locknuts as shown in Figure 9.
  • Page 19 Assembly Instructions Step 11: Locate Lower Ladder Section (#12) and two U-Brackets (#20). Install Lower Ladder Section (#12) and two U-Brackets (#20) onto the Upper Ladder Section (#10) using four (4) M6x40 Bolts, eight (8) Steel Washers and four (4) Locknuts as shown in Figure 11.
  • Page 20 Assembly Instructions Figure 13 Positioning of the Cross Braces on the Ladders and Legs.
  • Page 21 Assembly Instructions Step 13: Locate six Male Cross Braces (#14) and six Female Cross Braces (#15). Bolt a single Male Section (#14) to a single Female Section (#15) using one (1) M6x35 Bolts, two (2) Steel Washers and one (1) Locknuts as Figure 14 shown in Figure 14.
  • Page 22 Assembly Instructions Step 16: Locate assembled six Cross Braces. Locate Cross Brace holes to Leg Brackets holes using eight (8) M6x16 Bolts, sixteen (16) Steel Washers and eight (8) Locknuts as shown in Figure 13&17. Figure 17 Cross Braces Bolted Onto Legs Step 17: Install remaining end Cross Brace holes to Ladder Brackets...
  • Page 23 Assembly Instructions Step 19: Locate Seat & Backrest Frame (#16) and Seat Base Frame (#17). Install the Seat Base Frame (#17) onto the Seat & Backrest Frame (#16) using six (6) M6x16 Bolts and six (6) Steel Washers as shown in Figure 19.

  • Page 24: Installation Instructions

    Installation Instructions Step 21: Locate Upper Seat Post (#19). Install the Upper Seat Post (#19) onto the Seat Base Frame (#17) using four (4) M8x40 Bolts, eight (8) Steel Washers and four (4) Locknuts as shown in Figure Figure 21 Install Upper Seat Post Step 22: Tie a hoist rope to the seat.
  • Page 25 WARNING! Prior to attempting to use this, or any other Game Winner product(s), you must take a moment and become familiar with its setup and installation at ground-level. You must practice installing, setting-up and using product(s) at ground-level prior to attempting to use it at heights above ground-level.
  • Page 26 STEP1：After making sure that the ground is level and with the assistance of three (3) other adults (for a total of four (4) adults) gently raise your Game Winner Tripod into a standing position. Once standing, make certain the seating platform is level and the pod stand is installed on solid, level ground. If the seat or...

  • Page 27: Care And Maintenance

    Game Winner product(s) prior to use for signs of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage. DO NOT use this or any other Game Winner product(s) if they show evidence of wear, rot, corrosion, cracks, fraying, deterioration and/or any other type of damage. Failure to follow these instructions may result serious injury or death! WARNING! DO NOT allow this product to be kept outdoors for more than two weeks.

  • Page 28: Warranty Information

    I have read and understand the safety, assembly and operating instructions provided with my Game Winner product. I have read the warranty information and know that I can call Innopower Inc. at (949) 262-3416 with any questions or concerns that I may have about this or any other Game Winner product.
