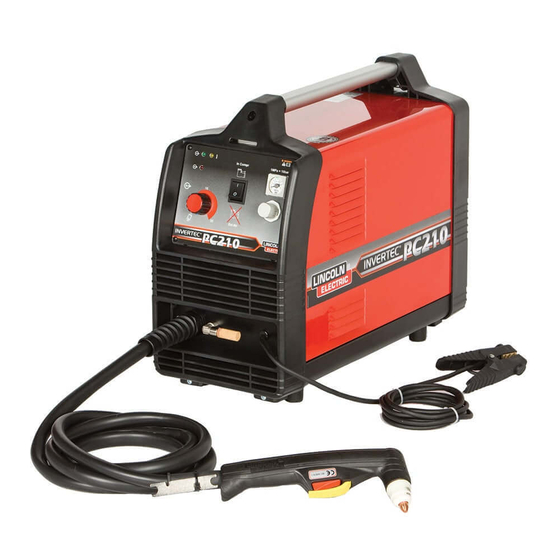

- Page 1 IM2016 01/2021 REV09 ® INVERTEC PC208 & PC210 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX ® INVERTEC PC208 CE K12037-1 ® INVERTEC PC208 AUS K12037-2 ® INVERTEC PC210 CE K12038-1 ® INVERTEC PC210 AUS K12038-2 INPUT Input Voltage Input Power at Rated Output EMC Class Frequency 2 kW @ 100% Duty Cycle 230 V ±10% 2.5 kW @ 60% Duty Cycle 50Hz... -
Page 4: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power Index Name Equivalent model consumption / Idle power consumption K12038-1 PC210 83,7% / 58W No equivalent model... - Page 5 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 6: Electromagnetic Compatibility (Emc)
This machine has been designed to operate in an industrial area. The operator must install and operate this equipment as described in this manual. If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. This machine is not in accordance with IEC 61000-3-12. -
Page 7: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 8 Cutting sparks can cause explosion or fire. Keep flammables away from cutting. Do not cut near flammables. Have a fire extinguisher nearby, and have a watch person ready to use it. Do not cut on drums or any closed container. The plasma arc can cause injury and burns.
-
Page 9: Installation And Operator Instructions
Installation and Operator Instructions Read this entire section before installation or operation of It is important to check these conditions because many the machine. engine driven generators produce high voltage spikes. Operation of this machine on engine driven generators not Location and Environment conforming to these conditions is not recommended and may damage the machine. - Page 10 Commands descriptions: Internal / External air selection (PC210 only): This Output Current Knob: Potentiometer used to set the switch determine the air supply. With the “In Compr” output current used during cutting. Refer to the position selected, the machine operates through the Technical Specification section for more information built-in compressor.
- Page 11 Lincoln Electric. Maintenance or repairs performed by unauthorized service centers or personnel The design concept at the basis of these power sources is will null and void the manufacturers warranty.
- Page 12 Cutting Speed The cutting speed is a function of: Thickness and of material to be cut. Value of set current. The current setting affects the quality of the cut edge. Geometrical shape of the cut (whether straight or curved).
- Page 13 Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
-
Page 14: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
