Barkmate DF113R/DF112 Invisible Dog Fence System Manual

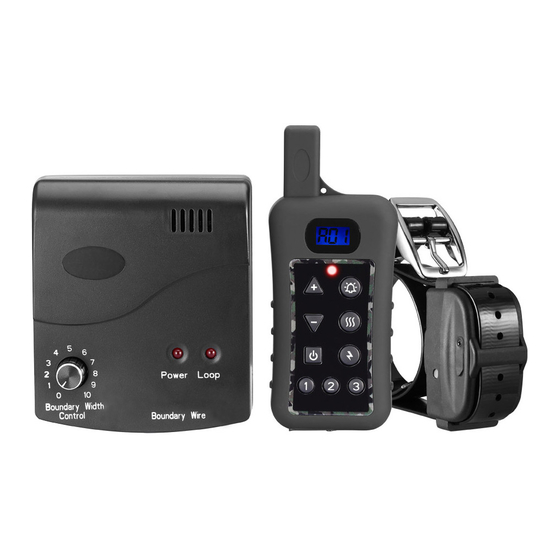

DF113R Kit Contents
1.
Dog Fence Transmitter Unit
2.
Dog Fence Transmitter Power Supply
3.
Remote Trainer Transmitter (Sold Separately) –
works with DF113R collar only
4.
DF113R Contain N Train Collar (Medium to Large Size Dogs)
5.
DF113R Collar and Remote Transmitter Charger
6.
150 Metres Boundary Wire
7.
50 x Boundary Flags
8.
Collar Test Light Tool
9.
Resistor
10. Wire Joiner
11. Dog Collar Probe Wrench
12. 1 Pair of Long Contact Probes for long hair dog
DF112 Kit Contents
1.
Dog Fence Transmitter Unit
2.
Dog Fence Transmitter Power Supply
3.
DF112 Contain N Train Collar (Small to Medium Size Dogs)
4.
6V Alkaline Battery for DF112 collar
5.
150 Metres Boundary Wire
6.
50 x Boundary Flags
7.
Collar Test Light Tool
8.
Resistor
9.
Wire Joiner
10. Dog Collar Probe Wrench
11. 1 Pair of Long Contact Probes for long hair dog
The Barkmate Invisible Pet Containment system is an effective invisible barrier to keep your pets inside the property. The
transmitter is designed to cover property size up to 5 acres. The Standard Barkmate DF113R Fence collar suits most dogs from
7kg. The Barkmate Mini DF112 collar suits small dogs from 3.5kg.
How does it work?
The Barkmate invisible dog fence consists of a 150 metres copper insulated loop wire connected to a radio transmitter. The wall
mounted transmitter plugs into a power socket and emits a radio field that travels around the loop wire. The radio field can be
adjusted in radius at the Wall transmitter approximately a ½metre to 3 metres (10 increments) in radius from the wire. Your dog
wears a Barkmate receiver collar that detects the radio field, warning the dog as they near the boundary.
If your dog enters the radio field, they will receive a mild electronic pulse. This electronic pulse is harmless but startling enough
to act as a deterrent to prevent your pet from escaping or challenging the existing boundaries of your property.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF113R and is the answer not in the manual?

Questions and answers

Summary of Contents for Barkmate DF113R

  • Page 1 The Barkmate Invisible Pet Containment system is an effective invisible barrier to keep your pets inside the property. The transmitter is designed to cover property size up to 5 acres. The Standard Barkmate DF113R Fence collar suits most dogs from 7kg.
  • Page 2 The Barkmate DDF113R Dog Fence Collar The Standard Barkmate DF113R Dog Fence Collar has a vibration warning plus 3 levels of mild to high stimulation output for medium to large stubborn dogs. This DF113R collar is waterproof and rechargeable. It is also compatible with Barkmate Dog Training Remote Transmitter to be used as a dog training collar.
  • Page 3 If the ON/OFF button has been pressed too long, the collar will be turned off and you will hear a long beep. The DF113R collar has 2-hour fast charge battery. The LED will flash Red when you need to charge and Green means fully charged.
  • Page 4 Please Note: The LED flashes Red when the battery is low. The Barkmate Training remote is able to control up to 3 collars. You may need to unpair the collar before you can pair it with the new remote as the collar may be paired with a different remote for testing purpose from the factory. MAKE SURE the collar is in dog training mode (flashes GREEN once every 5 seconds).
  • Page 5: Installation

    Turn the boundary width control knob to mid setting (number 5). Attaching the test light tool onto the contact probes of the collar. Holding the receiver collar at about the dog’s height towards the boundary wire. The DF113R and DF112 collars should beep when entering the warning zone.
  • Page 6: Troubleshooting

    Step 4: Safe to leave boundary (1 to 3 days) Train the dog to understand when he is safe to leave the boundary. Take the Barkmate dog fence collar off, leash the dog when taking the dog out. So, the dog knows, only you can take him out but not by himself.

This manual is also suitable for:

Df112
