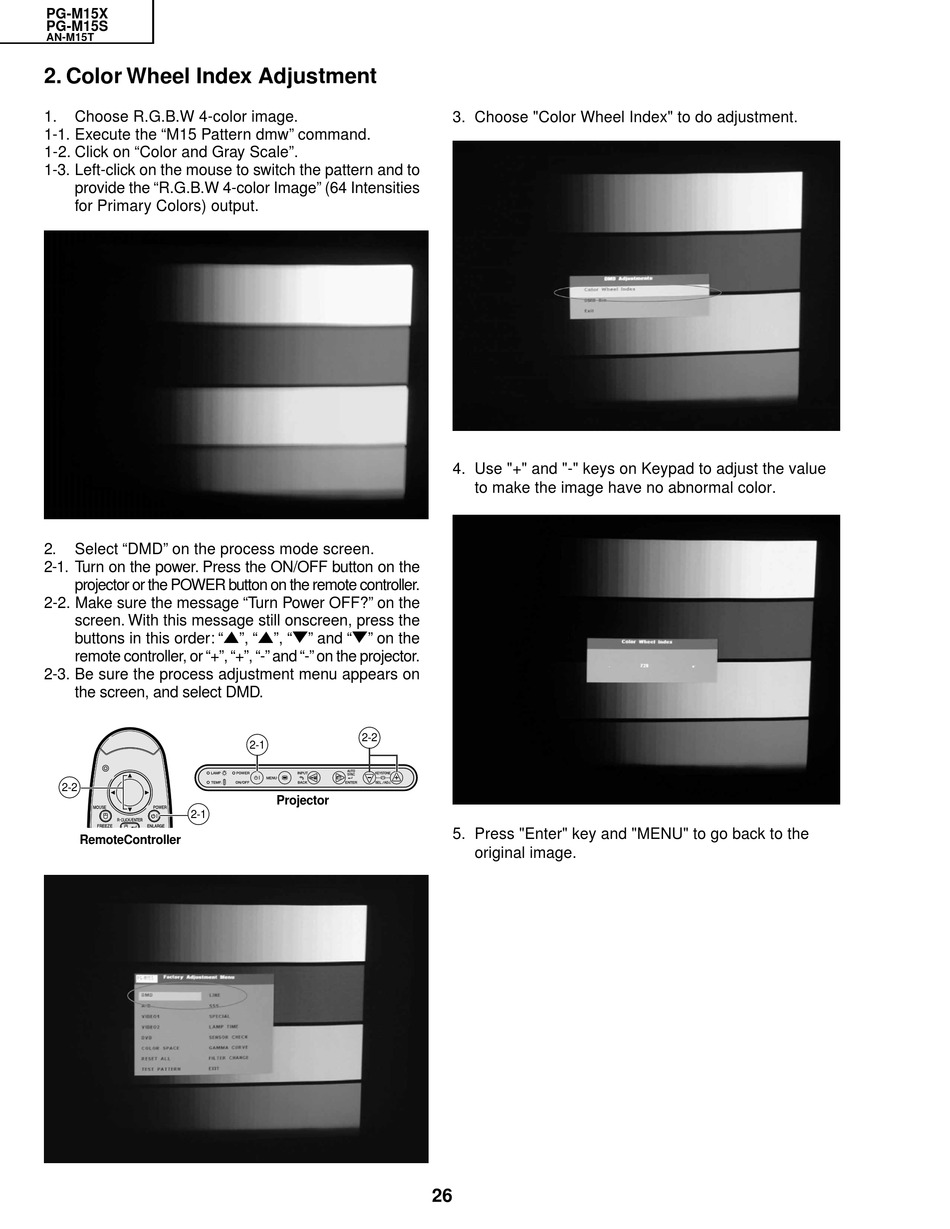

2. Color Wheel Index Adjustment
1. Choose R.G.B.W 4-color image.
1-1. Execute the "M15 Pattern dmw" command.
1-2. Click on "Color and Gray Scale".
1-3. Left-click on the mouse to switch the pattern and to
provide the "R.G.B.W 4-color Image" (64 Intensities
for Primary Colors) output.
2. Select "DMD" on the process mode screen.
2-1. Turn on the power. Press the ON/OFF button on the
projector or the POWER button on the remote controller.
2-2. Make sure the message "Turn Power OFF?" on the
screen. With this message still onscreen, press the
buttons in this order: "'", "'", """ and """ on the
remote controller, or "+", "+", "-" and "-" on the projector.
2-3. Be sure the process adjustment menu appears on
the screen, and select DMD.
2-2
2-1
RemoteController
2-2
2-1
Projector
3. Choose "Color Wheel Index" to do adjustment.
4. Use "+" and "-" keys on Keypad to adjust the value
to make the image have no abnormal color.
5. Press "Enter" key and "MENU" to go back to the
original image.
