V-TEK TM-50XL Quick Start Manual

This quick start guide provides basic setup and operating instructions for the TM-50XL. The intended use of the TM-50XL
Taping Machine is to produce taped reels of individually sealed and consistently orientated components. Use of this equipment
in any other way is not recommended.
Work Area: The TM-50XL is designed to be operated in a temperature-controlled, light industrial setting. It should be installed
on a flat, dry, stable surface in a well-lit area. Choose a table that is at least 72" x 30" to provide sufficient space for the
assembled machine. See pages 2-4 for Quick Start instructions.
2
3
Back View
7. Cable & Power Connections
8. Air Regulator
Physical Specifications: Height: 15 inches (38 cm), Width: 55 inches (140 cm), Depth: 20.5 inches (52 cm), Weight: 85 lbs. (38.5kg)
Power Required: 115/230 VAC, 50-60 Hz; 1.1 Amp, 120 Volts; .6 AMP, 220 Volts
Operating Environment: Operating Temperature: 0°C - 50°C (32°F - 122°F), Maximum Humidity: 90% non-condensing
Detailed User's Guides, maintenance instructions and troubleshooting are available on the V-TEK, Inc. website:
www.vtekusa.com.
Contact Information
V-TEK, Inc.
751 Summit Ave
Mankato, MN 56001
D291720.6a
TM-50XL Quick Start Guide
4
6
1

Only qualified personnel with the proper technical training, experience working on this type of
equipment, and awareness of the possible hazards should perform maintenance on the TM-
50XL.

The user is protected from moving parts and exposure to objects being ejected under pressure
by a metal enclosure. The TM-50XL should never be operated with the enclosure removed.
There are no internal parts that can be serviced by the user.

Always disconnect the machine from air and power supplies, placing the unplugged cables in
clear view before performing any maintenance tasks.
TEL: (507) 387-2039
website:
email: service@vtekusa.com
5
http://www.vtekusa.com
Page 1 of 4

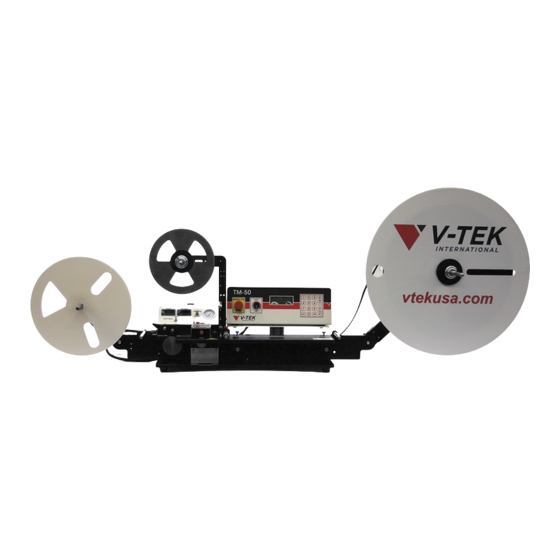

Front View
1. Track
2. Take-up Spindle
3. Take-up Arm
4. Cover Tape Arm
5. Payout Arm
6. Controller
7
8
Rev. 1, 6/7/17
