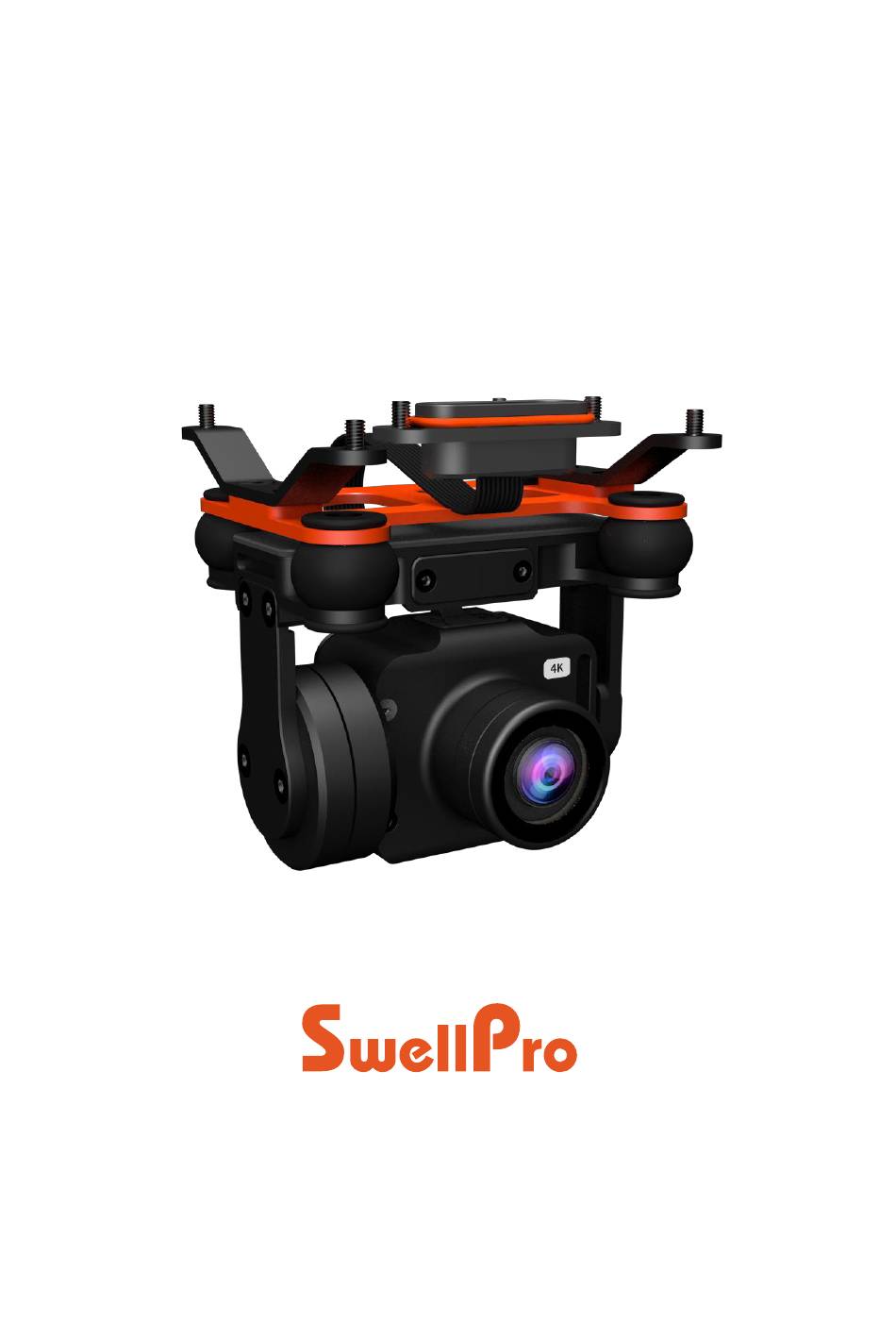

- Page 1 GC1-S User Guide Visit www.swellpro.com for the latest version of this manual and firmware updates for your drone and accessories. V1.0 – June 2021...
-
Page 2: Thank You
Thank you The GC1-S is a single-axis waterproof 4K gimbal camera designed for SplashDrone 4 to do aerial photography or fishing. GC1-S has Pro mode and supports RAW photos. ND filters can be added for greater creative freedom. Having the same camera as GC3-S, GC1-S can capture high-quality 4K video and crisp photos with a lighter weight and lower price point. -
Page 3: Table Of Contents
Install SD Card ........................5 ND Filter ..........................5 After Use Casing ........................6 CONTROL ....................7 Camera Status Indicator ......................7 Gimbal Control ........................7 Camera Control ........................8 Calibration ..........................8 APP INTERFACE ..................8 SPECIFICATION ..................11 ©2021 SwellPro... -
Page 4: Precaution
Precaution ⚫ The GC1-S is a piece of precision electronics with corrosion-resistant materials which allow for use in harsh marine environments. As with any marine equipment, trouble-free and lasting operations depend on proper attention and maintenance of the equipment. ⚫ When taking off or landing, slowly proceed to avoid damage to the gimbal camera which can cause by the huge impact when contacting the surface at high speeds. -
Page 5: Install Sd Card
• The GC1-S supports Micro SD cards with a maximum capacity of 128GB. Since the camera requires fast reading and writing of high-stream video data, please use Micro SD cards with Class 10 or UHS-1 or above to ensure proper functioning. -
Page 6: After Use Casing
2. After cleaning and drying the gimbal camera and the aircraft, secure the gimbal camera with the fixing case, then put the aircraft and other parts into the case. The case is secure and ready to be carried or transported. 6 ©2021 SwellPro... -
Page 7: Control
Tilt①: Roll the right gimbal control roller as shown to turn the gimbal up or down from 0 to - 90 degrees. Pan②: Pan control is not applicable for GC1-S. It only works for 3-axis gimbal cameras, such as GC3-S, GC3-T. -
Page 8: Camera Control
To calibrate the gimbal camera, you need to download the dedicated calibration firmware and connect the gimbal camera to calibrate. For more details, please contact SwellPro support team. APP Interface To get into APP’s camera interface: Power on the remote controller, then the aircraft. - Page 9 Login device Camera Interface ©2021 SwellPro...
- Page 10 Photo Setting Interface Video Setting Interface 10 ©2021 SwellPro...
-
Page 11: Specification
JPEG / DNG (RAW) Video format: MP4，MOV Memory card: Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, recommend using Class 10 or above, or with UHS-1 rating. Working temperature: -10°C - 40°C ©2021 SwellPro... - Page 12 Version Information SwellPro products are constantly improving, so as the product user guides. It is recommended to visit www.swellpro.com to check and download the latest user guide. Version GC1-S User Guide First Edition 12 ©2021 SwellPro...
