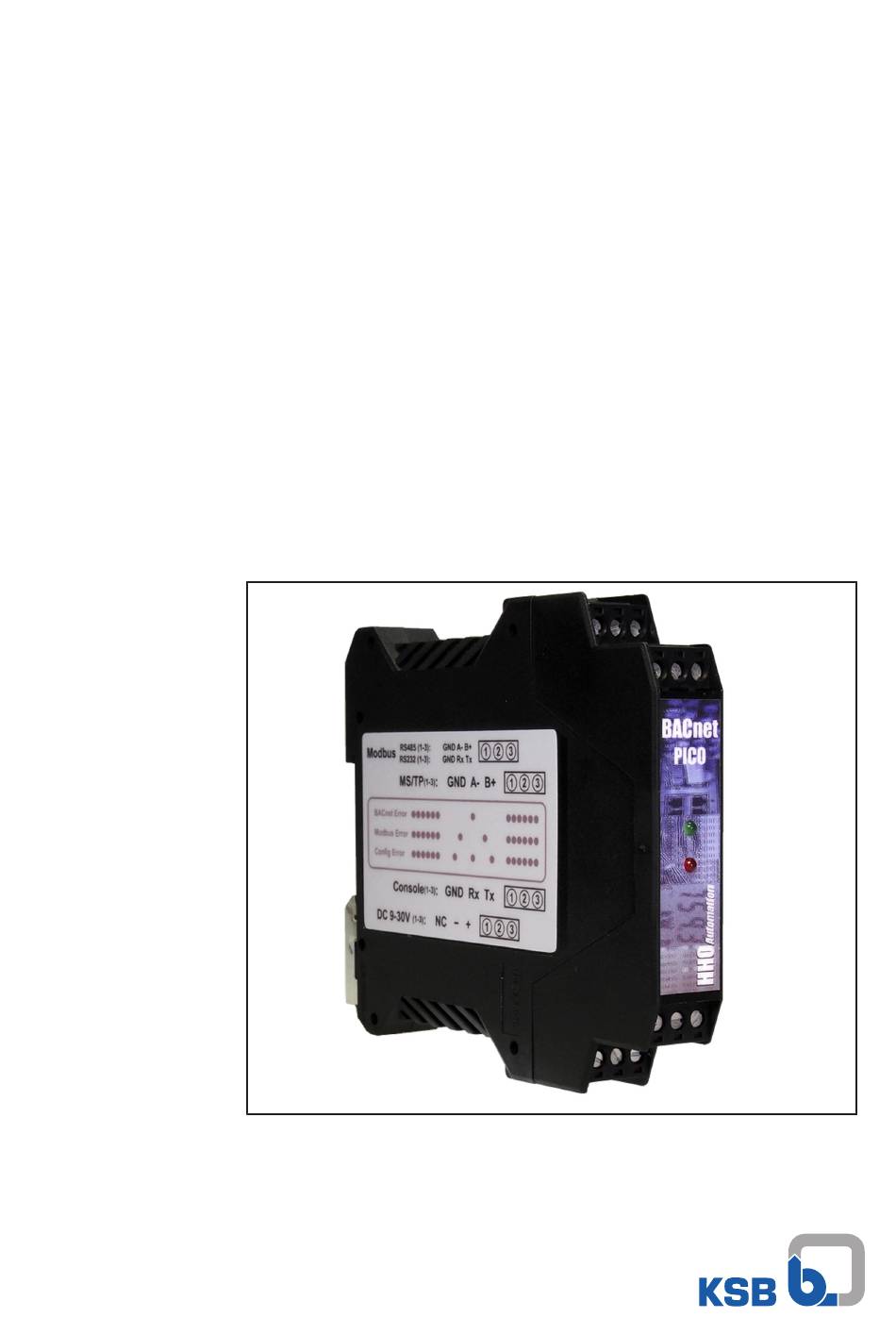

- Page 1 BACnet MS/TP Gateway For Calio Supplementary Operating Manual...
- Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 11/04/2018...
-
Page 3: Table Of Contents
General description ............................ 6 Commissioning.............................. 6 3.3.1 Setting jumpers ............................ 8 3.3.2 DIL switch ............................. 8 3.3.3 Back-up battery............................ 8 3.3.4 Error code ............................. 9 3.3.5 Technical data ............................ 9 Related Documents .......................... 11 Terminal diagram ............................ 11 EU Declaration of Conformity ...................... 12 BACnet MS/TP Gateway 3 of 16... -
Page 4: General
All information contained in the installation/operating manual must be observed. Table 1: Relevant operating manuals Type series Reference number of the operating/installation manual Calio 1157.82 Manufacturer's product For accessories and/or integrated machinery components observe the relevant literature manufacturer's product literature. BACnet MS/TP Gateway 4 of 16... -
Page 5: Storage
1. Store the device in dry conditions, if possible in its original packaging. 2. Store the device in a dry room in which the atmospheric humidity is maintained at a constant level (as far as this is possible). 3. Prevent excessive fluctuations in atmospheric humidity. BACnet MS/TP Gateway 5 of 16... -
Page 6: Description
Modbus interface (COM) at the pump. Do not change the default Modbus settings of the pump. The gateway can only be used as a master on the BACnet MS/TP network. NOTE Only one Calio pump can be connected via each BACnet MS/TP gateway. - Page 7 3 Description Press Remove Press Fig. 1: Side view of BACnet MS/TP gateway DANGER Live voltage Danger to life! ▷ Only remove the printed circuit board when de-energised. Fig. 2: Removed electronics MS/TP bus terminator jumper (must be terminated at the last station/...
-
Page 8: Setting Jumpers
76800 115200 230400 The baud rate for the BACnet MS/TP network is set to 38400 by default. 3.3.3 Back-up battery Insert battery of type CR2032 with the positive terminal pointing upwards. The battery buffers the data and the real-time clock of the gateway during a power interruption. -
Page 9: Error Code
Normal / Fault Overload / adjusted speed BI-6 Calio_FaultE06 Normal / Fault Supply voltage too high/low BI-7 Calio_FaultE08 Normal / Fault Motor fault BI-8 Calio_PumpStatus Operate / Stop Status BV-1 Calio_StartStop Start / Stop Switch Start/Stop BACnet MS/TP Gateway 9 of 16... - Page 10 Pico program file MI-1 Modbus_Status Online / Error FP:19200,'E',8,1,'B',1000,1000 PRG-1 P-BASIC Program Running / Halted KSB Calio adaption (c) V20150805 HHO-uha MV-1 Calio_OpMode Eco-Mode Selecting the operating mode Const-Pr Propor-Pr Boost All describable properties (see PICs) with the exception of PresentValue are permanently saved in the gateway’s flash memory.
-
Page 11: Related Documents
BACnet MS/TP Modbus MS/TP provided by RS485 customer Service Console interface External 0-30VDC 9-30VDC 0 - 10 V 0-10V Fig. 5: BACnet MS/TP gateway NOTE Always wire only one Calio pump to the gateway in a point-to-point connection. BACnet MS/TP Gateway 11 of 16... -
Page 12: Eu Declaration Of Conformity
5 EU Declaration of Conformity 5 EU Declaration of Conformity KSB SE & Co. KGaA Manufacturer: Johann-Klein-Straße 9 67227 Frankenthal (Germany) The manufacturer herewith declares that the product: BACnet MS/TP gateway Serial number range: 2018w01 to 2019w52 ▪ is in conformity with the provisions of the following Directives as amended from time to time: –... - Page 16 KSB SE & Co. KGaA Johann-Klein-Straße 9 • 67227 Frankenthal (Germany) Tel. +49 6233 86-0 www.ksb.com...
