Lighting Fixture - Modulex MMP-130A/40BZ1/2 Installation Manual

Lighting Fixture
Installation Guide
MUSEUM platform / Adjusytable downlight
MMP-130A/40BZ1/2

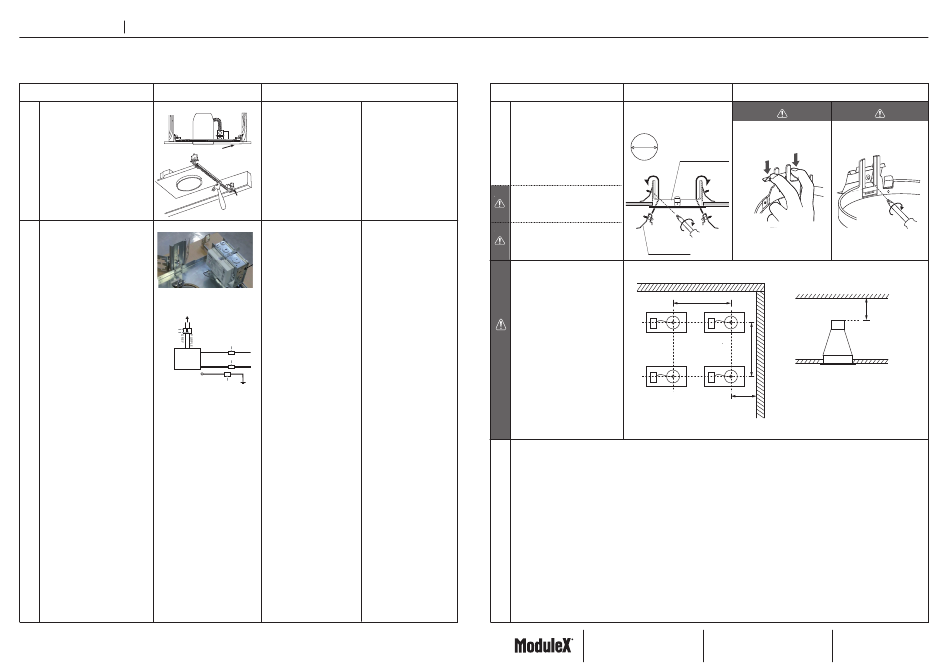

Installation Details Installation Diagram
Installation in New Construction
1
1 Locate fixture between joists.
Extend bar hangers to fit between
2
joists. Position fixture by hammering
Ceiling Line
nails into joists. Bar hangers should
2
be level with bottom of joists.
Wiring connection
1 Provide electrical service according
2
to the "National Electrical Code" or
your local electrical code from a
suitable junction box to the
wiring box(located on the plaster
frame).Supply wire insulation must
be rated for at least 75℃.
2 Remove the fixture wiring box
cover.
Remove appropriate round knock-
3
TO 0-10V DIMMER
out(s) and connect conduit to
wiring box with proper connect-
CAPPED 0-10V
CONTROL WIRES
or(s)(not included).
3 Connect supply wires to wires in
fixture wiring box with proper size
wire nuts(not included).Be sure
DRIVER
to cover all bare current carrying
conductors.Connect white to white;
GREEN OR BARE
black to black; and green or bare
copper wire(from electrical service)
to bare copper wire(in wiring box)
4 Place wires and connections back in
wiring box and replace cover.
Caution
Bar hanger lip fits
against joist bottom
Make certain no bare wires are
exposed outside the connectors.
for metal conduit
*Wire nuts by others.
WIRE NUT*
BLACK BLACK
WIRE NUT*
WHITE WHIT E
GREEN OR BARE
WIRE NUT*
Installation Details Installation Diagram
Install the mounting equipment
for ceiling cut out
1
Ceiling cut out
1 Cut out a hole and install the
mounting frame
Φ130
2 Slide the metal fittings from upper
side
3 Use a screw driver and tighten the
metal fittings
On step 2, please fix the metal
a fitting firmly with your fingers.
If not, it may cause falling of fixtures
Make sure to tighten the metal
3
fittings securely with a screwdriver.
b
(torque 1.0 〜2.0 N・m) If it is loose,
Metal fitting
it may cause falling of the fixture
Install with MINIMUM SPACINGS
between (a) center-to-center
of adjacent luminaires:
600 mm ( 24̲ in);
(b) top of luminaire to
overhead building member:
200 mm ( 8 in);
(c) luminaire center to side
building member:
300 mm ( 12 in)
TOKYO
1-20-6 BF1 Ebisuminami,Shibuya-ku,
R
Tokyo,150-0022,Japan
Tel : 81-3-5768-3681
To install ModuleX safety
Caution
a
Mounting frame
2
Ceiling
Standard to screw
Push tight
torque 1.0〜2.0N・m
h
(a)
(a)
(c)
OSAKA FUKUOKA
5-6-9 Shinosakadaiichi9F Nishinakajima, 1-8-30-1 Daimyou,Chuou-ku
Yodogawa-ku,Osaka,532-0011,Japan Fukuoka,810-0041,Japan
Tel : 81-6-6305-3501 Tel : 81-92-732-4211
b
i
(b)
