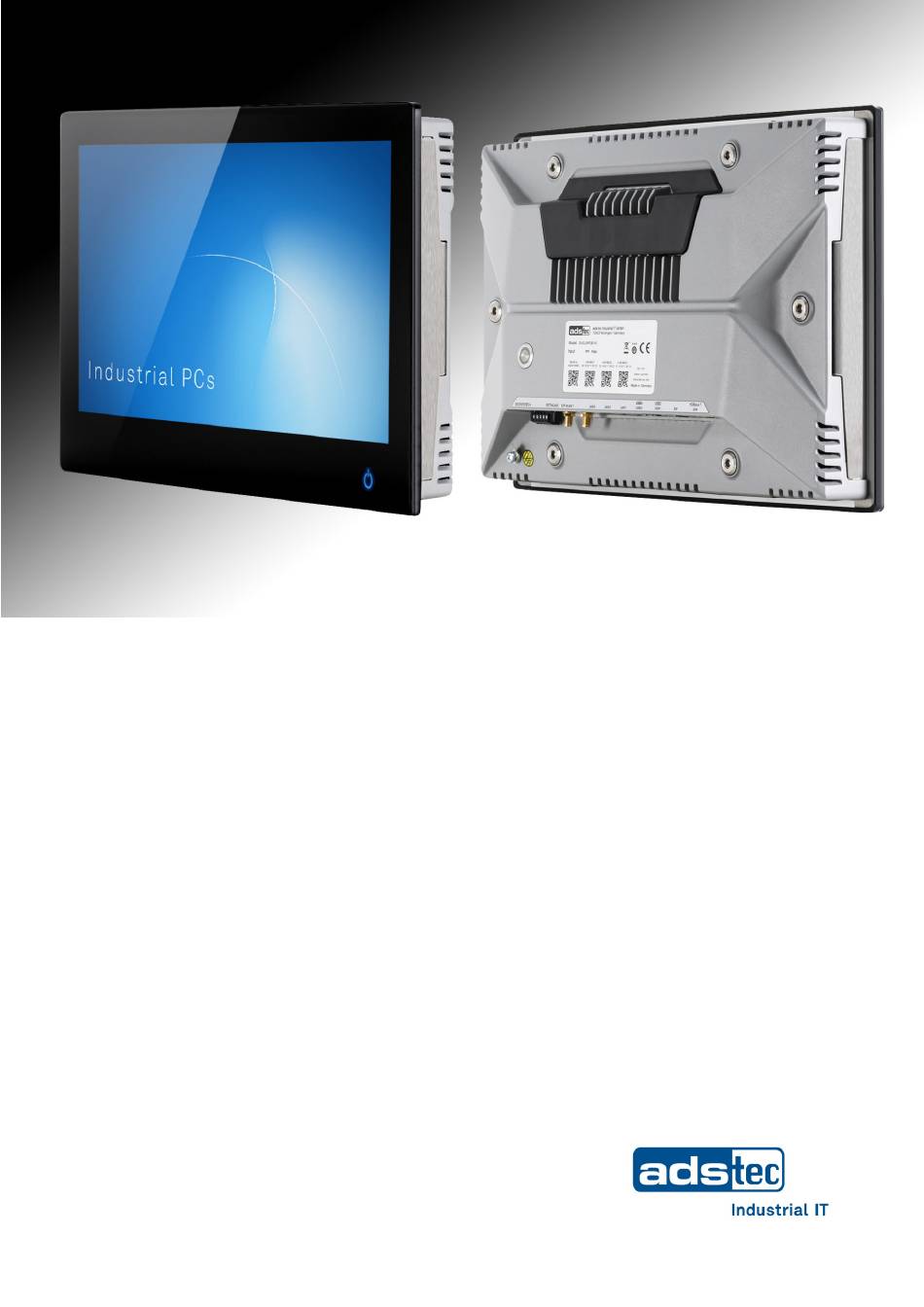

- Page 1 Translation of the original instruction manual Instruction manual Industrial monitors OPD9000 series Last changed: 2021-07-13...
- Page 2 OPD9000 series − Instruction manual v1.0 Read these instructions carefully before using and store for future reference. These instructions contain important information about the product, in particular about its intended use, safety, installation, utilisation, maintenance and disposal. Hand over the instructions to the user following installation of the product, and pass the manual on to the new user if the product is resold.
-
Page 3: Table Of Contents
OPD9000 series − Instruction manual v1.0 Contents General information about documentation ................5 General information Explanation of safety instructions 1.2.1 Structure of safety instructions 1.2.2 Explanation of signal words Relevant device documentation Symbols Data, figures and modifications Trademarks Copyright General device information ...................... 9... - Page 4 OPD9000 series − Instruction manual v1.0 10 Dimensional drawings ......................25 10.1 OPD9016 10.2 OPD9019 10.3 OPD9024 11 Technical data ........................28 12 Service & support ........................29 12.1 ADS-TEC support 12.2 Company address © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
-
Page 5: General Information About Documentation
OPD9000 series − Instruction manual v1.0 1 General information about documentation 1.1 General information The purpose of this instruction manual is to ensure the safe and efficient use of type OPD9000 − industrial monitors, hereinafter referred to as the "device". -
Page 6: Explanation Of Signal Words
OPD9000 series − Instruction manual v1.0 1.2.2 Explanation of signal words DANGER Indicates an imminent danger. If not avoided, death or severe injury will result. WARNING Indicates a possible danger. If not avoided, death or severe injury could result. CAUTION Indicates a possible danger. -
Page 7: Relevant Device Documentation
OPD9000 series − Instruction manual v1.0 1.3 Relevant device documentation The following documents are decisive to device setup and operation: • This instruction manual: contains information for installation, commissioning and operation of the device along with technical data. • Website: You can download the instruction manual as well as drivers, software, user manuals, leaflets and flyers from the Download area of our website www.ads-tec.de. -
Page 8: Trademarks
OPD9000 series − Instruction manual v1.0 1.6 Trademarks It is noted that any software and/or hardware trademarks and any company brand names mentioned in this documentation are all subject to the general trademark protection rights. Big-LinX and X-Remote are registered trademarks of ADS-TEC. -
Page 9: General Device Information
OPD9000 series − Instruction manual v1.0 2 General device information 2.1 Manufacturer and contact details The manufacturer of the device is ads-tec Industrial IT GmbH. The company is referred to in the following as ADS-TEC. ads-tec Industrial IT GmbH Heinrich-Hertz-Str.1 72622 Nürtingen... -
Page 10: Improper Use
OPD9000 series − Instruction manual v1.0 2.3 Improper use Operation other than or beyond that described for the device shall be deemed improper use. The device is not allowed to be used to control vehicles or for applications for which further approvals beyond the manufacturer's declaration are necessary, e.g. -
Page 11: Environmental Conditions
OPD9000 series − Instruction manual v1.0 2.4 Environmental conditions ATTENTION Damage caused by heat! If the device is exposed to sunlight or any other light or heat source, it can overheat and suffer damage. Do not expose the device to direct radiation by sunlight or any other light or heat source! -
Page 12: Vibration/Shock Resistance
OPD9000 series − Instruction manual v1.0 2.4.1 Vibration/shock resistance The vibration/shock resistance tests were performed as follows: Vibration near machines or conveyor belts − DUT: functional device Test standard: EN 60068-2-6 − − Deflection shape: sinusoidal Test axes: X / Y / Z −... -
Page 13: Conformity
OPD9000 series − Instruction manual v1.0 2.5 Conformity The manufacturer hereby declares that the product described in this instruction manual complies with all relevant stipulations of the following European directives: • 2011/65/EU, RoHS Directive • 2014/30/EU, EMC Directive • 2014/35/EU, Low Voltage Directive •... -
Page 14: Warranty / Repairs
OPD9000 series − Instruction manual v1.0 2.6 Warranty / repairs During the device warranty period, any repairs must only be performed by the manufacturer or by service personnel that has been authorised by the manufacturer. 2.7 Limitation of liability ADS-TEC shall not be liable for personal injury, property damage or damage caused to the device as... -
Page 15: Scope Of Delivery
OPD9000 series − Instruction manual v1.0 3 Scope of delivery Check that the contents of the package are intact: If there are signs of damage, please contact the manufacturer immediately. The device must not be put into operation. Check that the contents of the package are complete and match your order: 1 x device −... -
Page 16: Mechanical Installation
OPD9000 series − Instruction manual v1.0 4 Mechanical installation 4.1 Requirements The device is intended to be installed in a wall recess. • • The installation site must be accessible from the rear. • The wall can be between 1.5 and 6 mm thick. -
Page 17: Installation Recess Opd9019
OPD9000 series − Instruction manual v1.0 4.3 Installation recess OPD9019 4.4 Installation recess OPD9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 18: Device Installation - Sequence
OPD9000 series − Instruction manual v1.0 4.5 Device installation – Sequence 1. Depending on the orientation of the device, loosen, for example, the left and right clamp by turning the clamping screws clockwise (5 mm hex socket). The clamps will protrude slightly from the housing due to spring pressure. -
Page 19: Electrical Connections
OPD9000 series − Instruction manual v1.0 5 Electrical connections 5.1 Requirements ATTENTION Damage due to electrostatic discharge! Damage to the device can be caused by electrostatic discharge. Always adhere to the safety measures applicable when handling components at risk of being •... -
Page 20: Interface Overview
OPD9000 series − Instruction manual v1.0 5.3 Interface overview Protective earth (PE) connection, see section 5.2 Power supply, see Section 5.4 DisplayPort 1.2 HDMI 3 x USB 2.0 type A 1 x USB 2.0 type B Optional: HDBaseT extender (RJ45) 5.4 Power supply... -
Page 21: Maximum Cable Lengths
OPD9000 series − Instruction manual v1.0 5.5 Maximum cable lengths Recommendation for use: Note the maximum cable lengths for the respective application type. The maximum length of cables which can be used to connect the monitor and computer is: HDMI up to max. 15 m DisplayPort up to max. -
Page 22: Commissioning
OPD9000 series − Instruction manual v1.0 6 Commissioning 6.1 Requirements ATTENTION Hazard due to condensation Damage to electronic components caused by condensation resulting from temperature fluctuations. Switch on the device only after it has acclimated to the ambient temperature. •... -
Page 23: Features
OPD9000 series − Instruction manual v1.0 7 Features 7.1 DisplayPort™ The devices have a receiver module that conforms to DisplayPort 1.2. 7.2 HDBaseT™ With HDBaseT™, the connection between the computer and monitor is established using a LAN cable with RJ45 plugs. The distances that can be bridged depend on the network infrastructure used: with a CAT6a patch cable without sockets etc.: maximum 70 m... -
Page 24: Removing The Device
OPD9000 series − Instruction manual v1.0 9 Removing the device ATTENTION Depending on the installation situation, have a person hold the front of the device, if needed to prevent it from falling down after the clamps are loosened. 1. Loosen the clamping screws by turning counter- clockwise (5 mm hex socket). -
Page 25: Dimensional Drawings
OPD9000 series − Instruction manual v1.0 10 Dimensional drawings The dimensions of the wall recesses for installation can be found in Section 4 Mechanical installation. 10.1 OPD9016 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 26: Opd9019
OPD9000 series − Instruction manual v1.0 10.2 OPD9019 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 27: Opd9024
OPD9000 series − Instruction manual v1.0 10.3 OPD9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 28: Technical Data
OPD9000 series − Instruction manual v1.0 11 Technical data OPD9016 OPD9019 OPD9024 Display 15.6" TFT full HD 18.5" TFT full HD 23.8" TFT full HD Touch PCAP multi-touch (can be operated with gloves) Housing Die-casting aluminium, powder-coated Cooling Passive Cooling, fanless... -
Page 29: Service & Support
OPD9000 series − Instruction manual v1.0 12 Service & support ADS-TEC and its partner companies offer you comprehensive maintenance and support services, ensuring quick and competent support should you have any questions or concerns with regard to ADS- TEC products and equipment.
