CHARLY HKar14 User Manual

Patent shackle separation system
Art. no. HKar14
- User manual -
A speed system separation link is required to automatically
disconnect the speedbar after rescue parachute deployment when
separation carabiners are used.
This patent shackle separation system is recommended when the
existing Brummel hooks on the paraglider' s speed system cords can
be removed and replaced by the patent shackle rings included in the
delivery.
Scope of delivery
1 pair Patent shackles with attached separation system
cord, breaking load approx. 300 daN
1 pair Patent shackle rings for installation on the speed
system of the paraglider
Installation

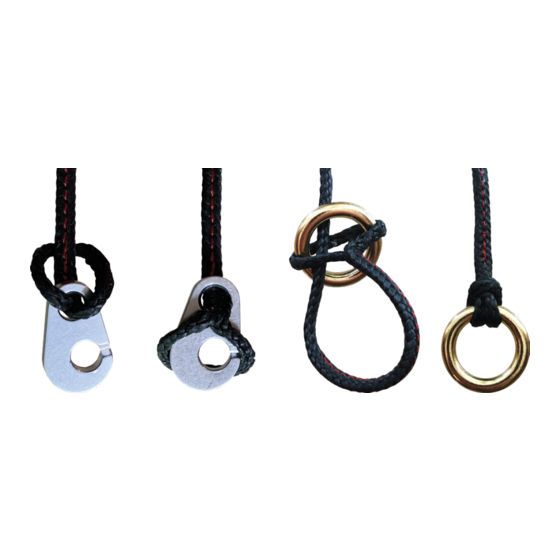

The existing Brummel hooks on the speed system of the paraglider
are replaced by the supplied patent shackle rings. The Brummel
hooks must be unlooped and the patent shackle rings must be
looped in their place as shown below.

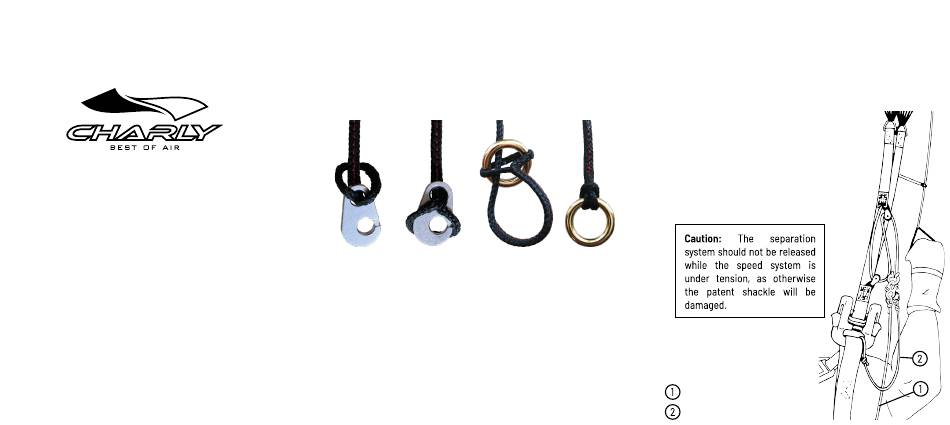

Detaching the
Brummel hook patent shackle rings
1. Loop or tie the speed system cord (1) onto the patent shackle
as shown in the illustration on the right. Loop or tie the free
end of the separation system cord (2) to the belt chamber of
the separation carabiner.
2. To adjust the correct lengths of the speed system cord
and the separation system cord before takeoff, you need
a second person to help you. Put on the harness, connect
it to the paraglider risers and sit down on the ground.
While the assisting person is holding up the risers, first
determine the correct length of the speed system cord on
the harness. Then set the separation system cord sufficiently
long so that it is not under tension at full acceleration.
3. During a subsequent release test of the
separation carabiner with the risers
under tension, the separation system
cord must tighten and pull out the
locking pin of the patent shackle,
causing the speed system cord to
disconnect.
Attaching the
Speed system cord
Separation system cord
