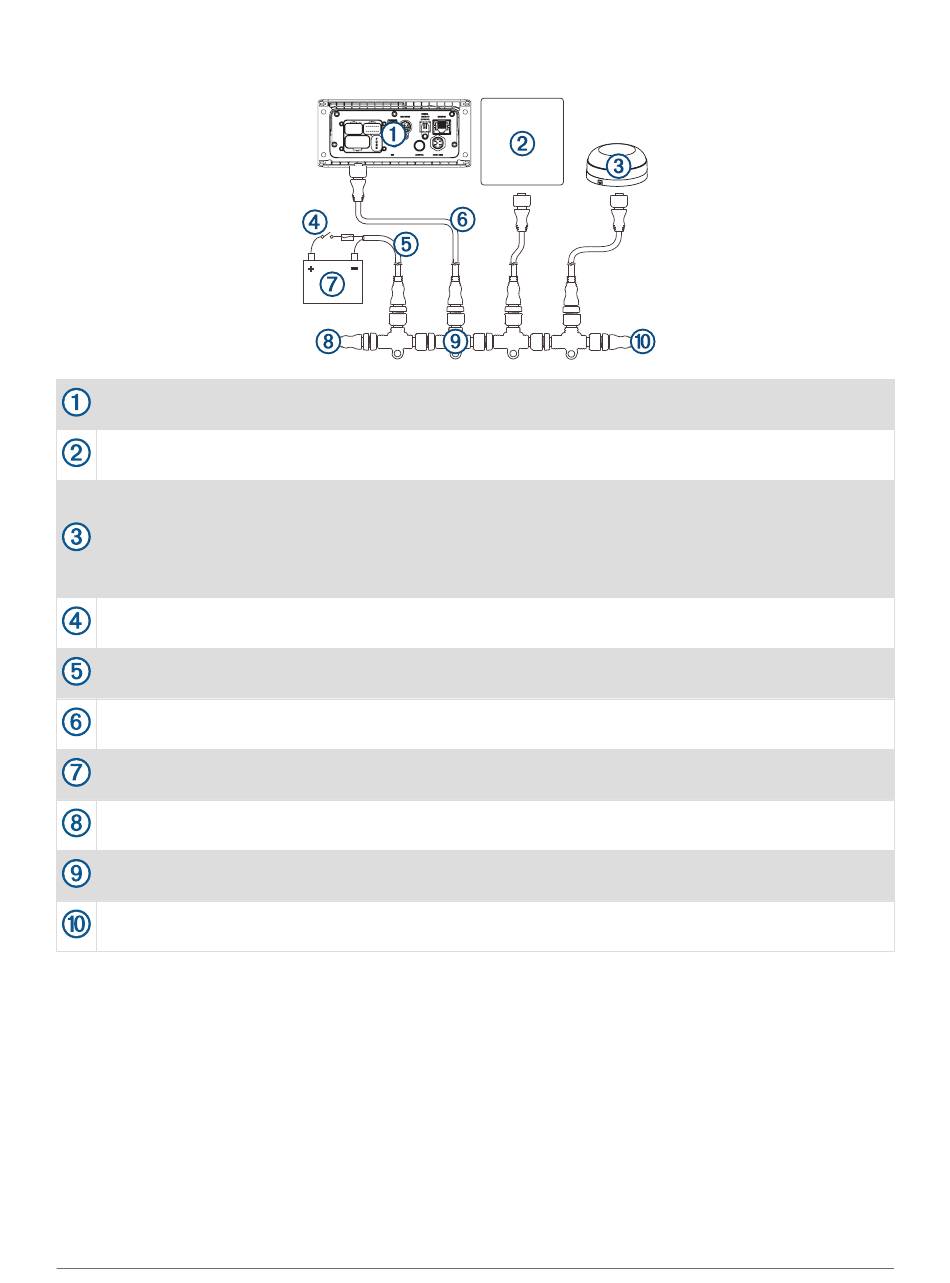

NMEA 2000 System Wiring Diagram
Stereo
Supported chartplotter, MFD, or compatible Fusion NMEA 2000 remote control
NMEA 2000 GPS antenna, speed sensor, or wind instrument.
When the stereo is connected to the same NMEA 2000 network as a compatible engine, a GPS antenna,
a chartplotter with a built-in GPS antenna, a wind instrument, or a water speed sensor, it can be config
ured to automatically adjust the volume according to the engine RPM, the speed over ground, the wind
speed, or the speed through water. See the stereo Owner's Manual for more information.
In-line switch
NMEA 2000 power cable
NMEA 2000 drop cable, up to 6 m (20 ft.)
9 to 16 Vdc power supply
NMEA 2000 terminator or backbone cable
NMEA 2000 T-connector
NMEA 2000 terminator or backbone cable
12
Apollo MS-RA670 Installation Instructions
