Chenzhu CZ3047T User Manual

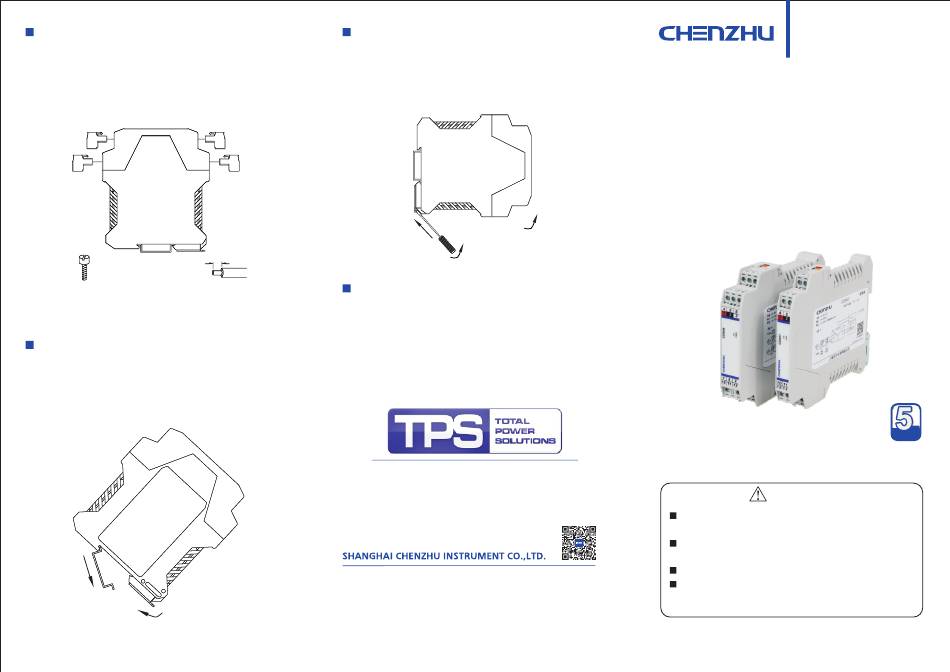

Connections
(1)The isolators adopt knock-down terminals.
(2)The wires are single or multiple cables with cross section of 0.5
2 2
mm ~2.5mm .
(3)A length of 8mm bared wire is locked by the M3 bolt, As shown in
figure.
8.0
M3
Installation
Mount the module on a 35mm DIN rail
(1) Make the upside of the isolator to the rail;
(2) Push the downside of the isolator towards the rail.
1
2
4
Disassembly
(1) Use a screwdriver (edge length≤6mm）insert the metal lock which
at the downside of the isolator;
(2) Push the screwdriver upwards,and pull the metal lock downwards;
(3) Take out the isolator from the rail.
3
1
2
Maintenance
(1) Every product has been tested strictly before delivery.If users find
any abnormality,please contact the nearest agent or our company.
(2) In 5 years from delivery date,if the product performs abnormally
under normal use conditions,we will repair it for free.
TPS Elektronik GmbH * Senefelder Str. 8 *
41066 Mönchengladbach * www.tps-elektronik.de *
office@tps-elektronik.de * +49(0)21 61 - 49 52 6 - 0
Add: Building 6, 201 Minyi Road, Caohejing Hi-Tech Park
Songjiang New Industrial Park, Shanghai 201612, P.R. China
Tel : +86-21-64513350 Fax : +86-21-64846984
Email：chenzhu@chenzhu-inst.com
http://www.chenzhu-inst.com
5

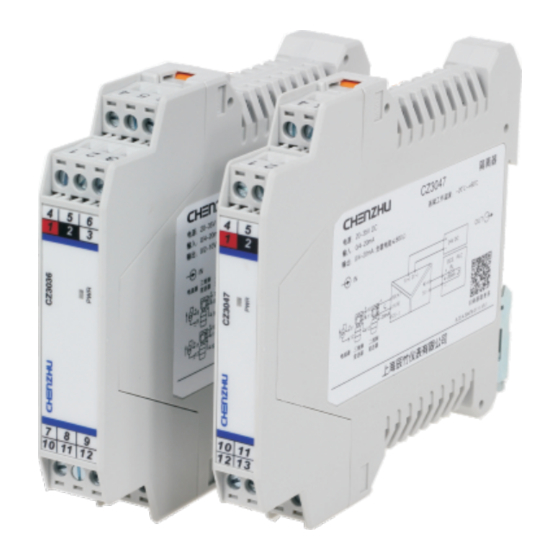

User Manual
Isolator
CZ3047T
CZ3035T
CZ3036T
Please read the instruction manual carefully before use the product,
and please safekeeping.
Caution
Please check whether the product type on the package accords
to the ordering contract;
Read this manual carefully before installation or using. If there is
something unclear,please dial technic support hotline-400 881 0780;
Supply voltage is 24VDC, 220VAC is forbidden;
Users are not allowed to dismantle or repair the Isolator otherwise
it will induce malfunction.
CZ.CZ3047T.11(S)E-5.0/17.05
YEAR YEAR
