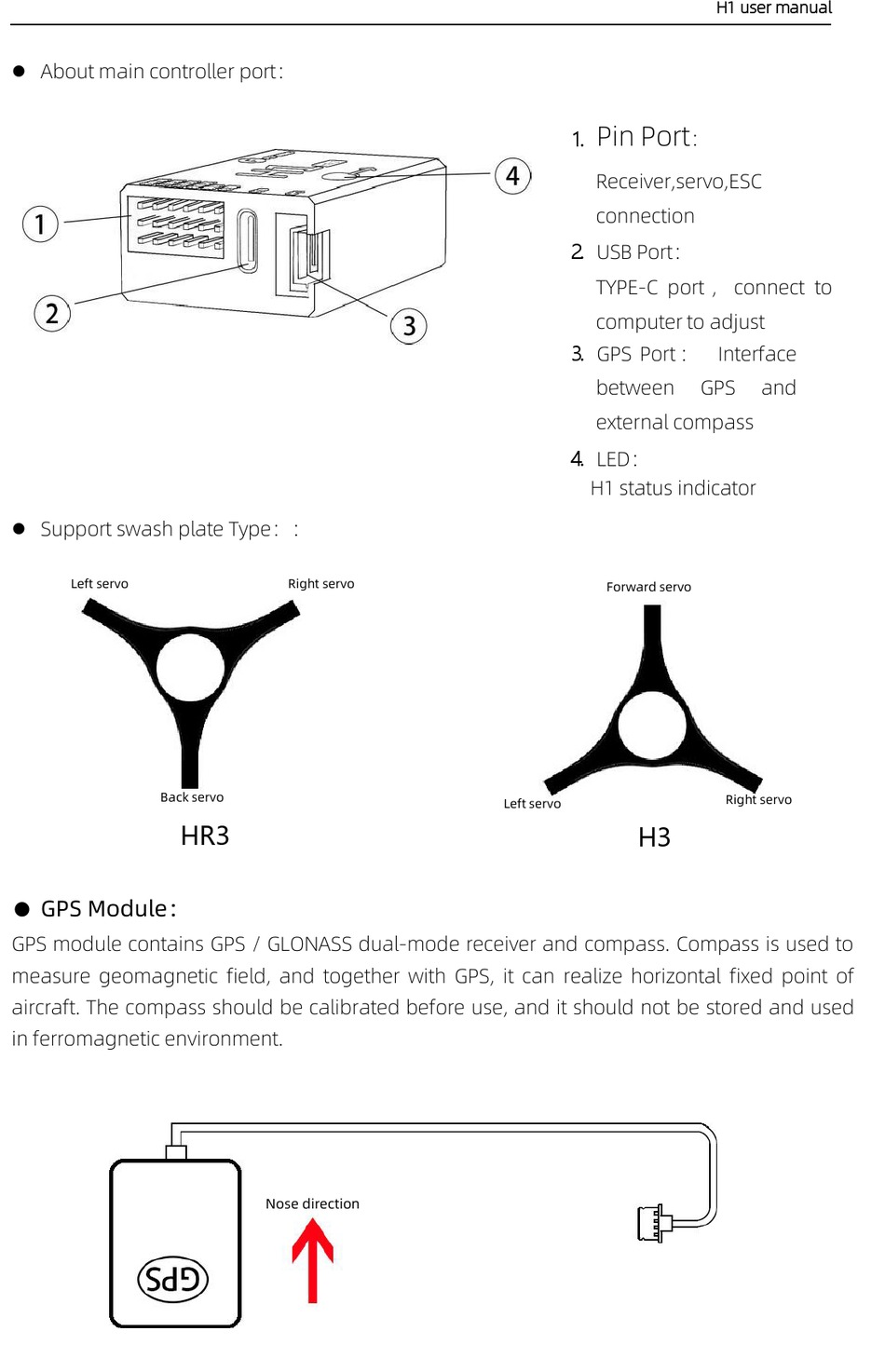

 About main controller port：
 Support swash plate Type：：
Left servo
Back servo
GPS Module：
●
GPS module contains GPS / GLONASS dual-mode receiver and compass. Compass is used to
measure geomagnetic field, and together with GPS, it can realize horizontal fixed point of
aircraft. The compass should be calibrated before use, and it should not be stored and used
in ferromagnetic environment.
Right servo
HR3
Nose direction
Pin Port
1.
Receiver,servo,ESC
connection
2. USB Port：
TYPE-C port ， connect to
computer to adjust
3. GPS Port ： Interface
between
external compass
4. LED：
H1 status indicator
Forward servo
Left servo
H3
H1 user manual
：
GPS and
Right servo
