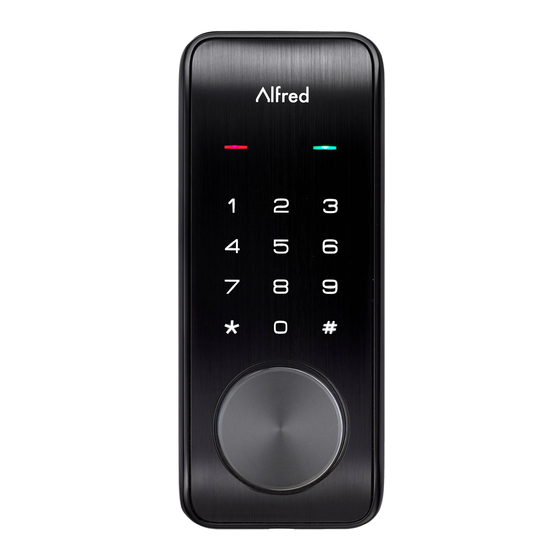

- Page 1 Z-Wave+ System Integrators Guide Document Revision: 5...
- Page 2 Contents Installing the Z-wave Plus Module .............. 1 About Z-wave ....................1 Z-wave function descriptions ..............1 Z-Wave+ Info ....................3 Supported Command Classes ..............3 Association Table ..................5 Notifications Table ..................5...
- Page 3 Installing the Z-wave Plus Module IMPORTANT: the batteries must be removed prior to removing and/or inserting the network module: Remove battery cover and batteries. Remove and/or insert network module. Re-install batteries and battery cover About Z-wave This lock is a security enabled Z-wave product. Inclusion(join) is detailed in Programming instruction under “Network pairing instruction”...
- Page 4 utilize all implemented functions. This product can be operated in any Z-wave network with other Z-wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
- Page 5 Open the door and keep the lock in "unlock" status Open battery box and find the reset button. Use a sharp thing to press and hold the reset button. Keep holding the reset button and remove a battery from battery box then replace it.
- Page 6 * Command Class Requires Security S0/S2 Command Class Door Lock, Version 2 Alfred Z-wave Plus locks only support 2 door lock modes : Door Secured(0xFF) and Door Unsecured (0x00) Alfred locks do not support timed operation from the door lock command class.
- Page 7 Association Table Group Maximum Description Commands Nodes Battery, Battery Report ; Notification, Notification Report; Lifeline Door Lock,Door Lock Operation Report; User Code,User Code Report; Device reset locally,Device Reset locally notification Notifications Table Notification Event Description Type 0x06 0x01 Manual lock operation 0x06 0x02 Manual unlock operation...
- Page 8 Z-Wave DSK DSK：26703-12128-50707-58468-58221-38215-16347-41281 Please Save the QR Code carefully. If both the DSK representation on the product and any DSK provided in the product packaging were to fade,rub off,or be lost,the device would not be able to be added to a Z-Wave network. You can find the QR code on back side of module.
