BlueBridge BBWP-TOUCH7
Thank you for purchasing the Atlas Sound BBWP-TOUCH7. The BBWP-TOUCH7 is part of the BlueBridge Wall Control (BBWP) family. All BBWP's are
available with either a White (W) or Black (B) faceplate and the installation is the same for either version. This installation guide illustrates the different
mounting options available and the steps to properly install them. For operation of the BBWP-TOUCH7 refer to the BlueBridge Wall Controller Guide
located at www.atlassound.com/bluebridge.
All BlueBridge BBWP's incorporate Ethernet communication protocol. They can be placed anywhere within a sound system as long as they are on the
same network and connected using a CAT5e cable to a switch. If the switch is a PoE type no external power to the BBWP is required. Each BBWP
requires 5VDC to power it and the external 5VDC power supply is included with each model if no PoE switch is available.

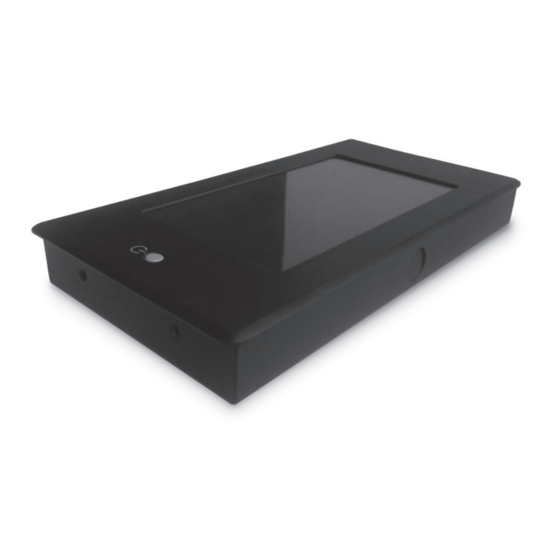

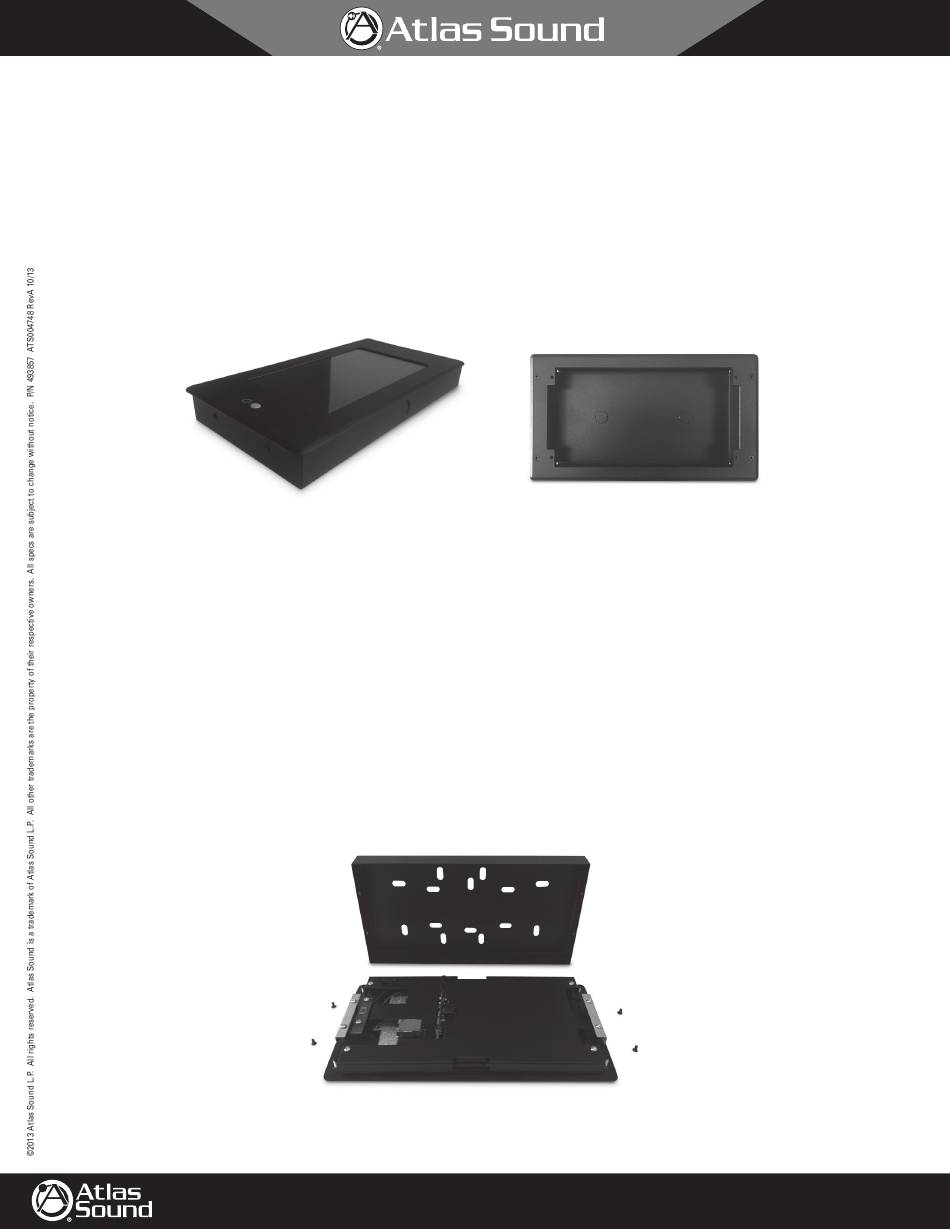

The BBWP-TOUCH7 comes with a surface mount back can (no flange) as show in Figure 01. Also included is an in-wall (flanged) back can and dress
bezel panel as shown in Figure 02.
There are four common ways to mount the BBWP-TOUCH7 described in this installation guide.
•
Surface Mount
•
Pre-Existing Construction In-Wall Mount
•
New Construction In-Wall Mount
•
Surface Mount
The BBWP-TOUCH7 comes with a back can (no flange) pre-installed. This combination is designed to be secured to any flat surface. The back can has
several mounting holes and knock outs allowing for connection of the external DC power and CATe5 cables.
Follow these steps:
1. Remove the back can from the panel. On each side of the back can there are two M3 X 6 mm screws to be removed and set aside.
Note: Retain the screws for later use.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
7" Touch Panel DSP Wall Controller Installation Guide
Figure 01
Figure 02
Figure 03
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
1/8
AtlasSound.com
Advertisement
Table of Contents
Related Manuals for Atlas BlueBridge BBWP Series
Summary of Contents for Atlas BlueBridge BBWP Series
- Page 1 7" Touch Panel DSP Wall Controller Installation Guide Thank you for purchasing the Atlas Sound BBWP-TOUCH7. The BBWP-TOUCH7 is part of the BlueBridge Wall Control (BBWP) family. All BBWP’s are available with either a White (W) or Black (B) faceplate and the installation is the same for either version. This installation guide illustrates the different mounting options available and the steps to properly install them.
- Page 2 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide 2. The BBWP-TOUCH7 can be powered by two methods. A. External 5V DC external power supply (included) B. PoE network switch. Using a PoE switch is recommended as it will supply both power and network connectivity. 3.
- Page 3 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide Pre-Existing Construction In-Wall Mounting Follow these steps: 1. Separate the in-wall (flanged) back can from the bezel. Retain the four screws. See Figure 07. Figure 07 2. Prepare the location where the BBWP-TOUCH7 will be installed. A.
- Page 4 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide 5. Insert the back can into the wall and from the inside of the can rotate the screw until the bracket rotates vertically and straddles the back can. Pull on the screw and finger tighten until the can is semi-snug to the wall. Figure 10 6.
- Page 5 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide 10. Align the bezel over the TOUCH7 rear threaded bolts on the rear side as shown in Figure 14. Figure 13 Figure 14 11. Insert and tighten the four lock washers and M3 nuts as shown in Figure 15. Figure 15 12.
- Page 6 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide 16. Connect the DC power and/or Ethernet CAT5e cable to the TOUCH7 as shown in Figure 17. Power Ethernet Figure 17 17. Place BBWP-TOUCH7 assembly into back can, carefully, making sure no cables are pinched or kinked. 18.
- Page 7 Rack Mount Many installations require the audio system controls to be placed in an equipment rack. Atlas Sound offers an optional rack panel (BB-TOUCH7-RP) that supports the BBWP-TOUCH7. It is designed to fit into a standard 19" rack and requires 4RU spacing. Follow the steps for installation.
- Page 8 BlueBridge BBWP-TOUCH7 7" Touch Panel DSP Wall Controller Installation Guide 1. Remove the surface mount back can from the TOUCH7 panel. On each side of the back can there are two M3 X 6 mm screws that must also be removed.
