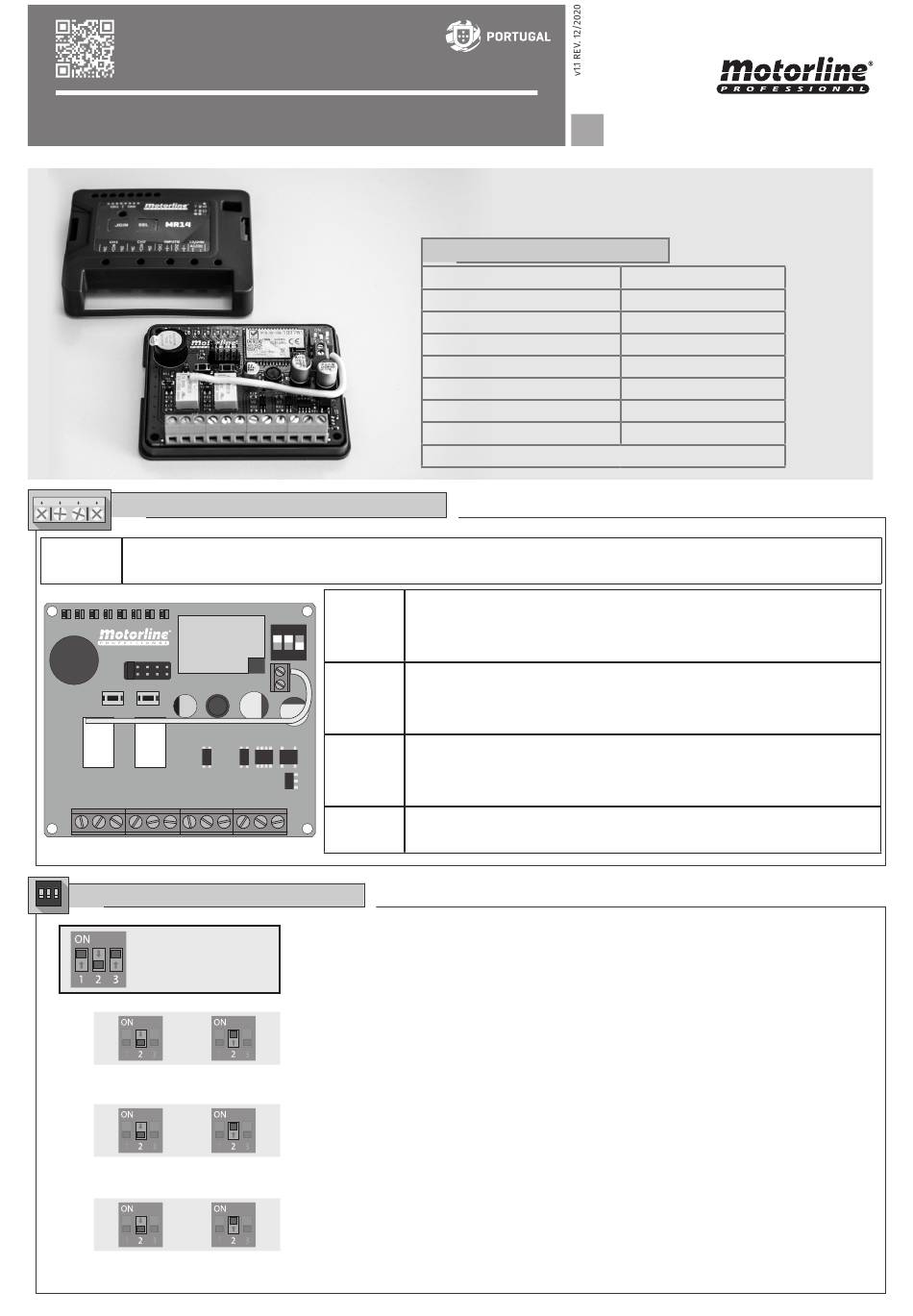

Motorline MR14 Operation & Programming Manual

MR14
OPERATION / PROGRAMMING MANUAL

INPUTS / OUTPUTS AND LEDS

LED1, LED2, LED3 e LED4 - memory position indicators to be programmed for channel 1
LEDs
LED5, LED6, LED7 e LED8 - memory position indicators to be programmed for channel 2
LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8
JOIN SEL
1 2 3 4 5 6 7 8 9 10 11 12
NC COM NO NC COM NO CH1 COM CH2 COM +

DIPPER

Basic operation:
Dipper 1 → ON;
Dipper 2 → OFF;
Dipper 3 → ON.
1
ECO NORMAL
2
NO
3
ACTIVED DEACTIVATED
BUZZER BUZZER

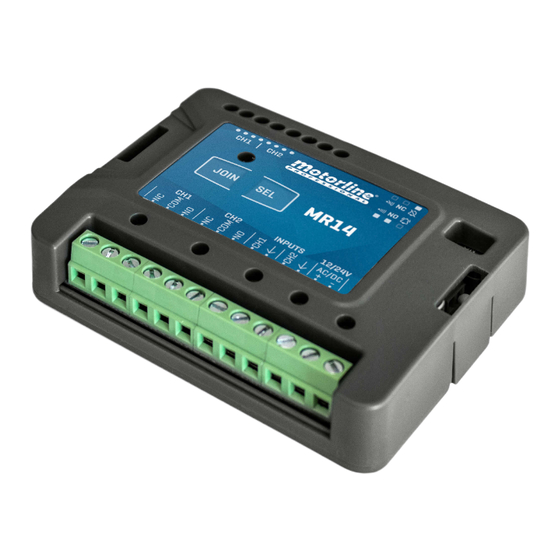

The MR14 receiver is a wireless receiver for managing multiple MX14 emitters.
When receiving information from the emitter, it communicates with the automation
control board via cable, so that the automation can be stopped or reversed.
1 •
NC
2 • COM
ON
3 • NO
1 2 3
4 •
NC
5 • COM
6 • NO
7 •
CH1
8 • COM
9 • CH2
10 •
COM
-
11 •
+
12 • -
1 • Transmission mode
• OFF – ECO mode
> With ECO mode, devices will only communicate with each other when the automation is in
operation (opening or closing), in order to save energy.
To use this mode, it is necessary to connect the control board to the MR14 CH1 and / or CH2
inputs. When the door is stopped, communication takes place approximately every 30 seconds.
With the door moving, it will be done in intervals of 300 to 600 milliseconds.
• ON – NORMAL mode
> In this mode, communication is always done at intervals of 300 to 600 milliseconds, ignoring
energy savings.
As such, it is not necessary to connect the control board to the MR14 CH1 and / or CH2 inputs.
2 • Operation of CH1 and CH2 inputs (ECO mode)
> Select the desired status for the CH1 and CH2 inputs information, paying attention to the
NC
settings of the operator control board.
• OFF – NO (MR14 and MX14 only communicate when the circuit is closed);
• ON – NC (MR14 and MX14 only communicate when the circuit is opened).
3 • Activate buzzer (audible alarm)
• OFF – Buzzer Actived;
• ON – Buzzer deactivated.
EN

TECHNICAL CHARACTERISTICS

• Power Supply
• ECO Inputs
• Relay
• Working frequency
• Memory for emitters
• Reach in the open
• Dimension
• IP
AES encryption
Relay output NO channel 1
> the output is active when any channel 1 emitter is in error
(ex: Door hit an obstacle, communication failed or the battery ran out).
The NC or NO output must be connected to the control board.
Relay output NO channel 2
> the output is active when any channel 2 emitter is in error
(ex: Door hit an obstacle, communication failed or the battery ran out). The NO
or NC output must be connected to the control board.
12/24V mode input
> used to activate channel 1 or 2 in ECO mode (Dipper 1 OFF). The control
board must activate this input when the door starts to move.
12 / 24Vdc/ac power supply
12-32Vdc / 12-24Vac
12/24V
30Vdc 1A/125Vac 0.5A
868MHz
8
100m
81 x 65 x 20 (mm)
IP30
