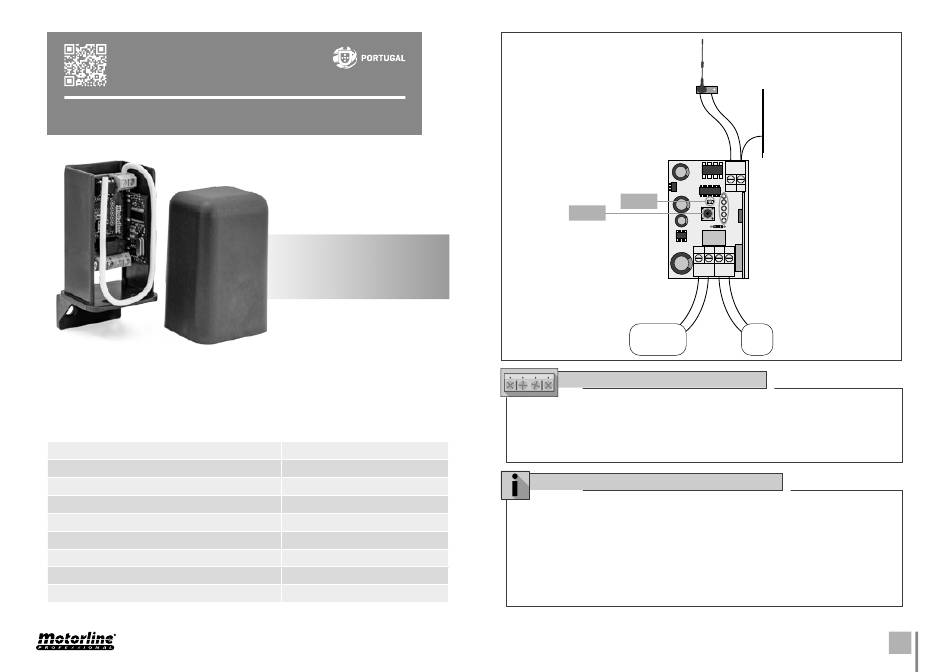

MR17
USER'S AND INSTALLER'S MANUAL
• CHARACTERISTICS FRAME
• Operation Frequency
• Power Supply
• Maximum Consumption
• Code type
• Tx Codes memorization (CH1 + CH2)
• Relay
• Temperature
• Range in open space
• Protection Grade

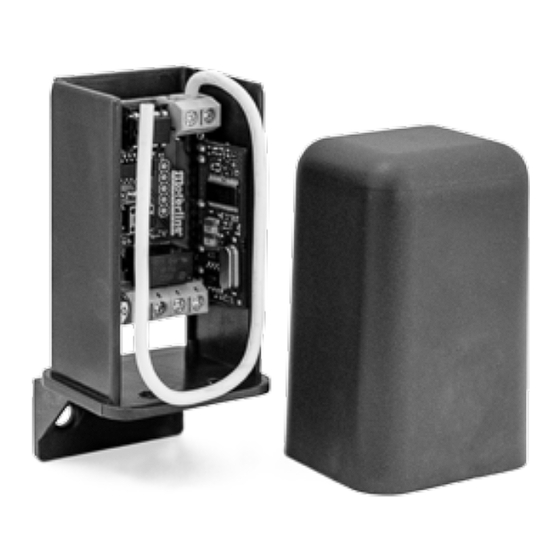

The MR17 receiver can operate
electrical and electronic equipment
remotely, with one or more commands
(by radio).
433,92 MHz
12-24Vac/dc
40mA to 24V
12 Bit or Rolling Code
500 Máx.
30Vdc 1A
-25°C to +55°C
50-100m
IP 42
Antenna
Led
Button
1
2
12/
0V
24
Power Supply
12/24V
LEGEND OF THE CONECTORS
01 • Power supply 12-24Vac/dc
02 • Power supply 0V
03 • Contact output CH1 - NO
04 • Contact output CH1 - NO
TYPE OF CHANNEL OPERATION
The receiver has the ability to operate in monostable and bistable mode.
In the default settings, the receiver is set to operate in monostable mode.
To change to bistable:
01 • Unplug the receiver.
02 • Press the programming button continuously.
03 • Holding down the button, plug again the receiver.
04 • The LED will flash once, confirming the change of mode.
NOTE • To return to monostable, repeat the previous operation.
Single-wire
antenna
Ø1,5mm
7
8
3
4
NO
Start
NO
EN
