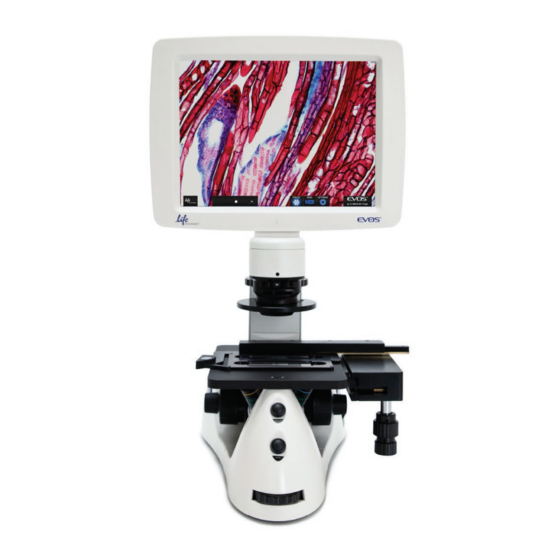

- Page 1 Quick RefeRence EVOS XL Core ® Imaging System Transmitted Light Applications Catalog Number AMEX1000 Doc. Part no. ZP-PKGA-0583 Pub. no. MAN0007718 Rev. 1.0 For Research Use Only. Not for use in diagnostic procedures.
- Page 2 Overview The EVOS XL Core Imaging System has two ® types of controls: manual and onscreen. Manual controls include the illumination wheel, focus knobs, freeze and Save buttons, objective turret, and the optional mechanical stage X-Y axis knobs. Onscreen controls appear at the bottom of the screen when the mouse rolls over the controls area.
- Page 3 Setup connect the power adapter to the power jack on the back of the instrument base and plug the cord into an outlet. Plug the wireless mouse receiver into either of the USB ports located on the right side of the LcD screen. install the battery and switch on the mouse.
- Page 4 Basic Operation Turn on the instrument using the power switch on the right side of the base. Plug a uSB flash drive into one of the USB ports on the right side of the instrument. Place the sample on the glass stage plate ...
- Page 5 ports Mechanical Stage Controls* Stage Y-axis Stage Phase turret knob clip Stage X-axis Power knob input jack * The attachable Mechanical Stage (Cat. no. AMEP 4712) is an optional feature. See the EVOS XL Core ® freeze Imaging System User Guide button for installation and removal Power instructions.
- Page 6 Limited Product Warranty Life Technologies Corporation and/or its affiliate(s) warrant their products as set forth in the Life Technologies’ General Terms and Conditions of Sale found on Life Technologies’ website at www.lifetechnologies.com/termsandconditions. If you have any questions, please contact Life Technologies at www.lifetechnologies.com/support.
