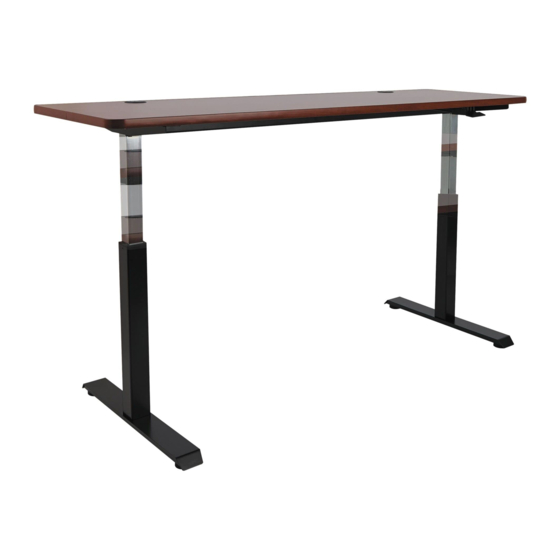

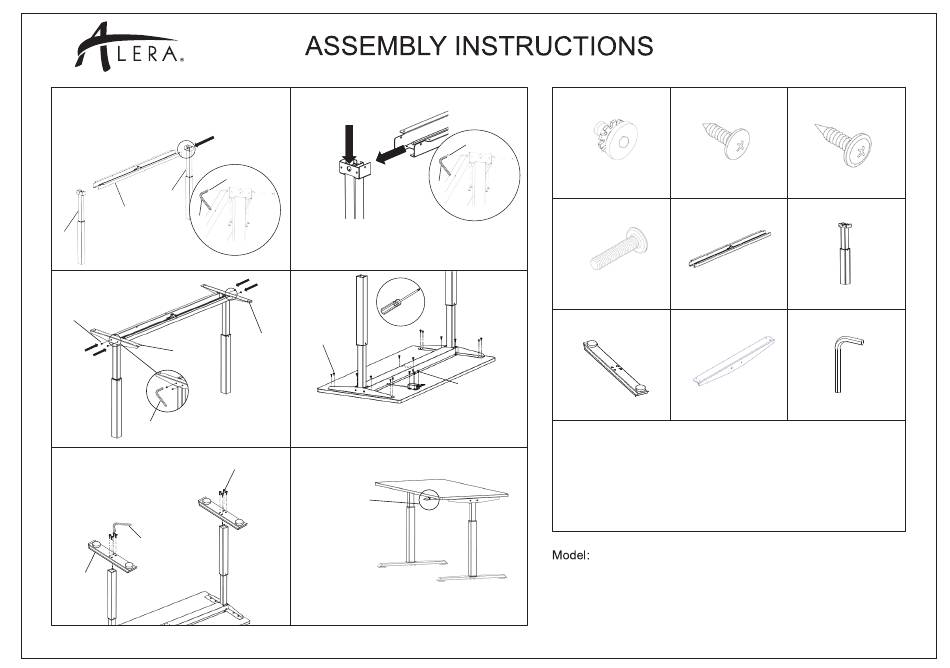

Alera ALE-HTPN1B Assembly Instructions

1.
TABLE TOP NOT INCLUDED
Step 1: Insert 1 end first
Step 2: Ensure metal bar is fully inserted into gear
A x 6pcs
F
E
I
F
3.
A x 4pcs
H
I
5.
D x 8pcs
I
G
08-016/2
2.
Inserting the other end of the metal bar column
Step 1
Step 2
I
Step 1: Press down on the edge of the metal leg and the
gear wheel will slightly twist to fit the metal bar
Step 2: Ensure metal bar is fully inserted into gear
4.
C x 14pcs
H
Ensure Base is properly aligned to table before screwing
6.
Carefully turn table upright. Two people recommended
Pull trigger
to operate
CAUTION
Please ensure that space below/ above is
clear when the table is moving up/ down
A.
A x 6pcs
4mm 16 PCS
D.
5mm 8 PCS
G.
B x 4pcs
2 PCS
OPERATING INSTRUCTIONS
Move up
To lift up the table, press the trigger then lift up the table using both
hands
Move down
To move down the table, press the trigger then press down on the
table using both hands
ALE-HTPN1B/ ALE-HTPN1G
Manufactured for Alera
One Parkway North, Deerfield, IL 60015 © 2016 Essendant Co.
Made in Taiwan
Product support and parts: 1-800-733-4000
B. C.
4 PCS
E. F.
1 PC
H. I.
2 PCS
/ Essendant Co.,
®
14 PCS
2 PCS
1 PC
