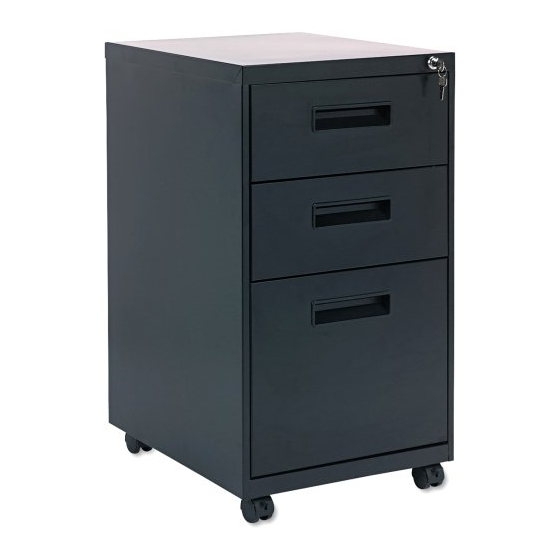

Alera ALE-PA532820BL Assembly Instructions

Parts List
Push here to
release all parts
and components.
Pencil Tray X 1 PCS
Box File Divider X 1 PCS
Locking Casters X 2 PCS
Casters X 2 PCS
3 PCS Caster Screws X 4 Sets
Glides X 4 PCS
File Conversion Kit X 1 Set
04-012/3
ASSEMBLY INSTRUCTIONS
Option 1: Mobile Pedestal Files
1
Locking casters can be installed
either in the front or rear side
Instructions apply to the following item numbers:
ALE-PA532820BL,ALE-PA532820CH,ALE-PA532820LG,ALE-PA532820PY
ALE-PA532823BL,ALE-PA532823CH,ALE-PA532823LG,ALE-PA532823PY
ALE-PB532819BL,ALE-PB532819CH,ALE-PB532819LG,ALE-PB532819PY
ALE-PB532823BL,ALE-PB532823CH,ALE-PB532823LG,ALE-PB532823PY
Manufactured for/Hecho para/Fabrique pour
Alera ® / USSCo,1 Pkway North,Ste 100,Deerfield,IL 60015
©2012 USSCo
Made in/Hecho en/Fabrique en Taiwan
2
Product support and parts:
Ayuda del producto y partes: 1-800-733-4000
Support technique et pièces:
3
4
