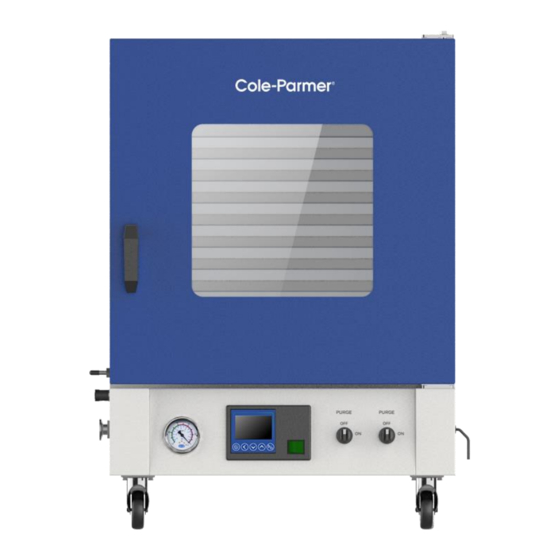

- Page 1 52411Programvacuumoven_ver_1.0 Programmable Vacuum oven User Manual 52411-30,-31,-32,-33,-34,-35...
-
Page 2: Warranty
52411Programvacuumoven_ver_1.0 1 Warranty Thank you for purchasing a Cole-Parmer instrument. In normal use conditions, the instrument is guaranteed for a period of 24 months started from the date of purchase. The warranty is valid only if the product is original. It does not apply to any product or parts of it that have been damaged due to incorrect installation, improper connections, improper use, accident or abnormal conditions of operation. -
Page 3: Electrical Installation
Before connection please ensure that the line supply corresponds to that shown on the rating plate located on the back of the unit. Power requirements Model Wattage Model Wattage Model Wattage 52411-30 700W 52411-32 1400W 52411-34 2000W 52411-31 700W 52411-33... -
Page 4: Safety Instructions
52411Programvacuumoven_ver_1.0 3.3 Safety instructions 3.3.1 Danger！ (The improper use of this unit may cause property damage and/or personnel injury) 1. The Product must be safely grounded (make sure not to use the ZL or neutral line as the earth wire). 2. -
Page 5: Product Introductions
52411Programvacuumoven_ver_1.0 4 Product introductions 4.1 Function introduction ⑥ ⑤ ① ② ③ ④ ⑧ ⑨ ⑩ ⑦ ⑦ Products sketch map ① vacuum pump electrical outlet ② Air inlet ③ Balance hole ④ vaccum KF-25 Flange ⑤ Observation window ⑥ Door lock Handle ⑦... -
Page 6: Display Introduction
52411Programvacuumoven_ver_1.0 4.2 Display and commands 4.2.1 Display introduction ④ ① ② ③ ① TEMP area (PV): Showing measured temperature. ② SET area (SV): Showing set temperature. ③ Heating lamp: It lights up when it has heat output. ④ TIME: Time display window, it will display running time or parameter value. 4.2.2 Command keys introduction Used for setting parameters, the parameter setting mode could be quit by pressing the set button for more than 3 seconds or more. -
Page 7: Specifications
52411Programvacuumoven_ver_1.0 4.3 Specifications Product name Vacuum Oven 52411-30 52411-32 52411-34 Model 52411-31 52411-33 52411-35 Chamber Volume 24L- Temperature Range℃) Amb+10℃~200℃ Amb+10℃~200℃ Amb+10℃~200℃ Temperature Range (℉) Amb+18℉~392℉ Amb+18℉~392℉ Amb+18℉~392℉ Temperature Stability ±1℃/±1.8℉ ±1℃/±1.8℉ ±1℃/±1.8℉ Temperature Resolution 0.1℃/0.1℉ 0.1℃/0.1℉ 0.1℃/0.1℉ Max. degree of vacuum... - Page 8 52411Programvacuumoven_ver_1.0 4.4. Summary of structure and function The vacuum drying oven (hereinafter referred to as the vacuum case) is bench structure. The vacuum case consists of four parts: case, inner chamber (working chamber), vacuum pumping system and temperature control system. The case is made of quality thin steel sheet with bright color plastic surface.
-
Page 9: Operation
5.2 Vacuum debugging 1) Models 52411-30,-31,-32,-33 use accessories vacuum pipe (inner diameter: φ16mm thickness: 10 mm) connected with the vacuum drying oven exhaust pipe (outer diameter: φ16mm) and a vacuum pump (Air inlet outer diameter：φ16mm；Pumping rate≥ 2L/s）.（We recommend users to connect drying chamber in middle）. -
Page 10: Temperature Setting
52411Programvacuumoven_ver_1.0 5.3 Single work step setting In the Programmable version the instrument can manage until 8 programs with 8 steps each one in which temperature, timer and fan speed (if present) are settable. Moreover them, it’s possible to set a simple work cycle at single work step, with temperature, timer and fan speed (if present). -
Page 11: Modify A Program
52411Programvacuumoven_ver_1.0 2. At any time, you can always manually stop the cycle by pressing the button for (4-5 seconds). 3. Once timer runs out or after manual stop, the instrument beeps intermittently, the icon of visual alarm and the word "end" appear on the display. Pressing any button will silence the audible signal and the icon appears. - Page 12 52411Programvacuumoven_ver_1.0 SET/PROG to confirm it and pass to the next value (timer), always of the first STEP. Set by and SHIFT keys the desired timer value of the first step and confirm by a short press of SET/PROG If the instrument is a forced air model, the next parameter to be set is the fan speed, adjustable by keys in (H=High, M=Medium, L=Low), otherwise you pass to STEP 2.
- Page 13 52411Programvacuumoven_ver_1.0 At any time you can always manually stop the cycle by pressing the START / STOP button with long pressure (4-5 seconds). Once the set program is finished or after a manual stop, the instrument beeps intermittently, the and the word “end” appear on the display. Pressing any button will silence icon of visual alarm the audible signal and the icon appears.
- Page 14 52411Programvacuumoven_ver_1.0 6.2 Number of program to which apply the Delay and Cycle functions In the Programmable version it’s necessary to define to which program (from 1 to 7) apply the functions of starting delayed (Delay) and repetition of cycle (Cycle). To do that it’s necessary enter in the first submenu with password access (0000) and modify the parameter Pn (program number) by keys and confirm the selected program by a short...
-
Page 15: Maintenance And Cautions
52411Programvacuumoven_ver_1.0 7 Maintenance and Cautions ① After using each time, power off and open the balance opening, wait for the vacuity to return zero before opening the case door (if it cannot be opened, wait for 5 minutes before opening again; opening by force may damage the door handle) ②... -
Page 16: Troubleshooting
52411Programvacuumoven_ver_1.0 8 Troubleshooting . Failure phenomena Possible reasons Treatment Check whether the lines are The output power socket had connected well and whether no power, the socket is well. The power plug is not inserted Re-insert the plug or repair the well in the socket or the line is line. - Page 17 52411Programvacuumoven_ver_1.0 between tested temperature The mercurial thermometer Replace it. and real temperature. head is not on the shelf. The apparatus or parameter is Re arrange Pb、Pk changing. parameters. The vacuum pump is not of The vacuuming speed should the correct model and size. not be less than 2 L/S.
- Page 18 52411Programvacuumoven_ver_1.0 9 Contact United States – Cole-Parmer, 625 East Bunker Ct, Vernon Hills IL, 60061 T: 800-323-4340 E: sales@coleparmer.com W: coleparmer.com EU – Antylia Scientific GmbH, Futtererstr. 16, 97877 Wertheim, Deutschland T: +49 9377 9203-0 E: cde.sales@antylia.com W: coleparmer.de UK – Antylia Scientific, 9 Orion Court, Abuscade Road, Colmworth Business Park, St Neots PE19 8YX T: +44 (0) 1480 277339 E: uk.sales@antylia.com W: coleparmer.co.uk France –...
