Pack Contents
Carefully check the contents
of the box, which are:
BLUELINE Joystick
T-Bar knob
Sponge ball knob
USB Charging Cable
These instructions

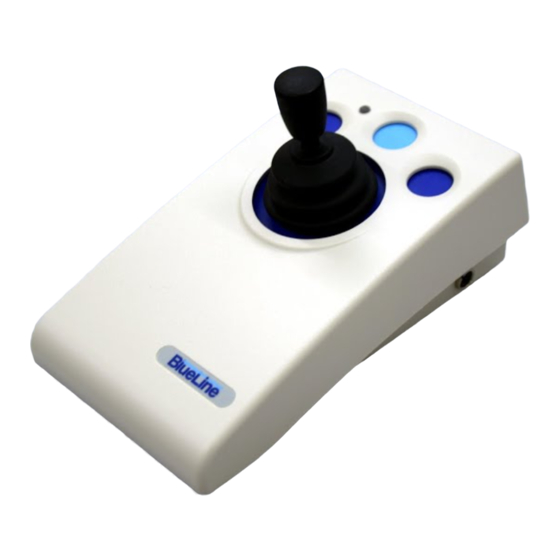

BLUELINE is a compact desktop Bluetooth Joystick
allowing direct wireless connection to any computer or
tablet that has built-in Bluetooth and supports mouse
connectivity. Ideal for connection to iPad or iPhone
using iOS Assistive Touch to give precise cursor
movement without the need for fine motor skills,
BLUELINE also allows easy connection to Android
devices and desktop computers that either have
Bluetooth or may be fitted with a Bluetooth dongle.
BLUELINE includes three recessed buttons and
two sockets for external switches, all of which can
be individually configured according to the user's
precise needs. The unit also supports four cursor
speed settings which may be changed by the user.
Other button options include swipe left and swipe
right, which are ideal for page turning, in addition to
drag-lock and dwell-click features.
BLUELINE Joystick
INSTRUCTIONS
Product Description
All programmable features are stored in non-volatile
memory and are automatically recalled each time
the unit is used, irrespective of the device it is used
on. This allows the joystick to be configured for
a particular user without needing access to their
device, which is of particular value to OT Centres with
remote clients.
BLUELINE has a built-in rechargeable lithium battery
which typically gives 15 hours of constant use between
charges. In practice the time between charges is likely
to be several days, depending on use. The unit is
supplied with a charger cable which works via any USB
socket and can continue to be used while charging.
Dimensions 18 x 10 x 12cm. Supplied with three
interchangeable knobs (acorn, T-Bar and soft-ball).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUELINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pretorian BLUELINE

  • Page 1 Sponge ball knob USB Charging Cable Product Description These instructions BLUELINE is a compact desktop Bluetooth Joystick All programmable features are stored in non-volatile allowing direct wireless connection to any computer or memory and are automatically recalled each time tablet that has built-in Bluetooth and supports mouse the unit is used, irrespective of the device it is used connectivity.
  • Page 2 Features • Bluetooth wireless connection direct to computer or tablet. Perfect for iOS Assistive Touch and Android. • Built-in lithium rechargeable battery. Typically gives 15 hours of constant use between charges. • Automatically sleeps when not in use to conserve battery. •...
  • Page 3 BLUELINE may be charged from any USB socket, whether on a computer or a plug-in charger. Simply plug the supplied charging cable into the socket on the rear of BLUELINE [7] and then into the charging port. The LED [6] will light green to indicate the unit is charging and will turn off when charging is complete.
  • Page 4 This is useful where there are multiple similar devices in one room. When you see your BLUELINE appear in the list of available devices, tap on it and it will connect in approximately 15 seconds.
  • Page 5: Connecting To Other Devices

    Menu Connecting to Other Devices Before you can begin using your BLUELINE Joystick, you must first connect it to your device. The exact method may differ slightly from device to device, but the following basic steps will always be necessary: 1.
  • Page 6 Configuring Buttons and Sockets BLUELINE is fitted with three buttons [1,2,3] and two 3.5mm sockets [4,5] for the connection of external switches, all five of which may be individually programmed for function using the display [10] and keypad [8,9] inside the flap on the underside of the unit. The following is a summary of each setting: •...
  • Page 7 5. Once all your changes have been made, allow the display to clear and they will be saved in non-volatile memory so they will be retained even if you move BLUELINE to another device or the battery becomes flat.
  • Page 8 Configuring Dwell Click Feature BLUELINE has a Dwell Click feature which may be used to effect a Left Click whenever the cursor remains still for a selected period of time. It is useful when users have difficulty in clicking any button or switch.
  • Page 9 If you set BLUELINE to wake up on joystick movement as well as button/switch activity, it will consume more power when asleep and will require charging more frequently.
  • Page 10: Restoring Default Settings

    Accessories Your BLUELINE is supplied with three knobs (acorn knob fitted and both T-bar and sponge ball knobs supplied loose) and a charging cable. Replacement knobs are available from Pretorian as well as alternative knobs for special requirements.
  • Page 11: Maintenance

    Pretorian Technologies or an authorised distributor. Warranty Your BLUELINE Joystick is warranted for 24 months from the date of purchase against defects in manufacture or component failure. The unit is designed for domestic, educational and commercial applications. Use outside these areas will invalidate the warranty. Unauthorised repair or modification, mechanical abuse, immersion in any liquid or connection to any charging equipment other than a working USB socket will invalidate the warranty.
  • Page 12 Unit 37 Corringham Road Industrial Estate Gainsborough Lincolnshire DN21 1QB UK Tel +44 (0) 1427 678990 Fax +44 (0) 1427 678992 All trademarks are used for illustrative purposes only, are the property of their respective owners and are acknowledged. S040142 www.pretorianuk.com For use with firmware 104.0 and iOS/iPadOS 13.4.1...
