M2 ASSEMBLY GUIDE

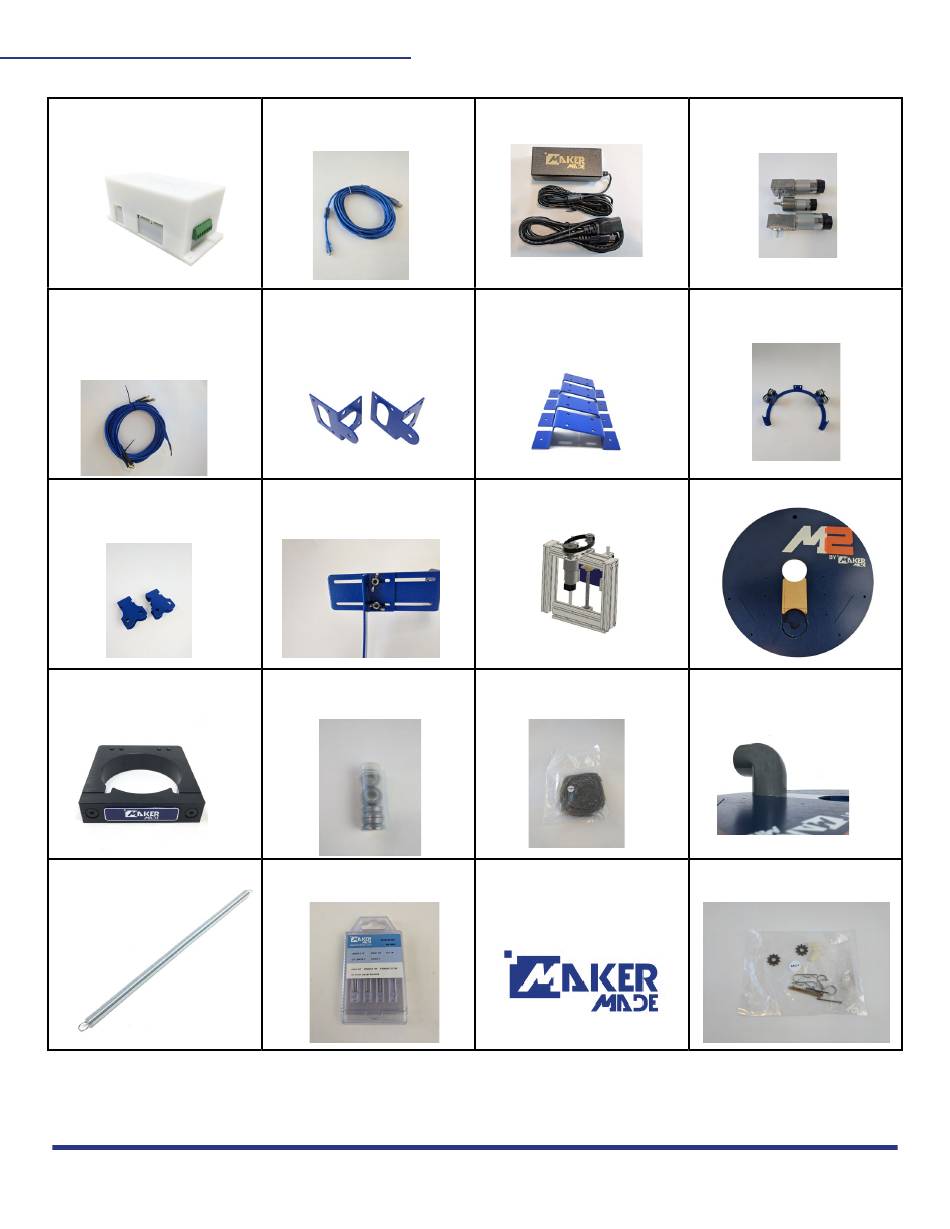

WHAT'S IN THE BOX?
DUE v1.2 Control Board, Shield,
and case
X, Y, and Z Motor Power Cables
(JST XH 6 pin x2, (JST XH 6 pin
to PH 6 pin x1)
Roller Bearing Carriages (2)
Router Clamp
Spring
This work is licensed under the creative commons Attribution
Non Commercial-No Derivatives 4.0 International license.
10' MicroUSB to USB cord
Motor Mounting Brackets (2)
Z-Axis Mount L-Brackets (3)
Roller Bearings (4)
Maker Made Router Bit Starter
Set
AC/DC Power Adapter and cord X, Y, and Z Axis Motors
Stud Mounts (4) with shock
absorption strip
Z-Axis Assembly
Chains 335cm/11' (2)
Maker Made Sticker, marker,
welcome note, and USB Drive
5
(ETONM) (3)
Ring Carriage
Sled
Dust Collection Elbow
Bag A
