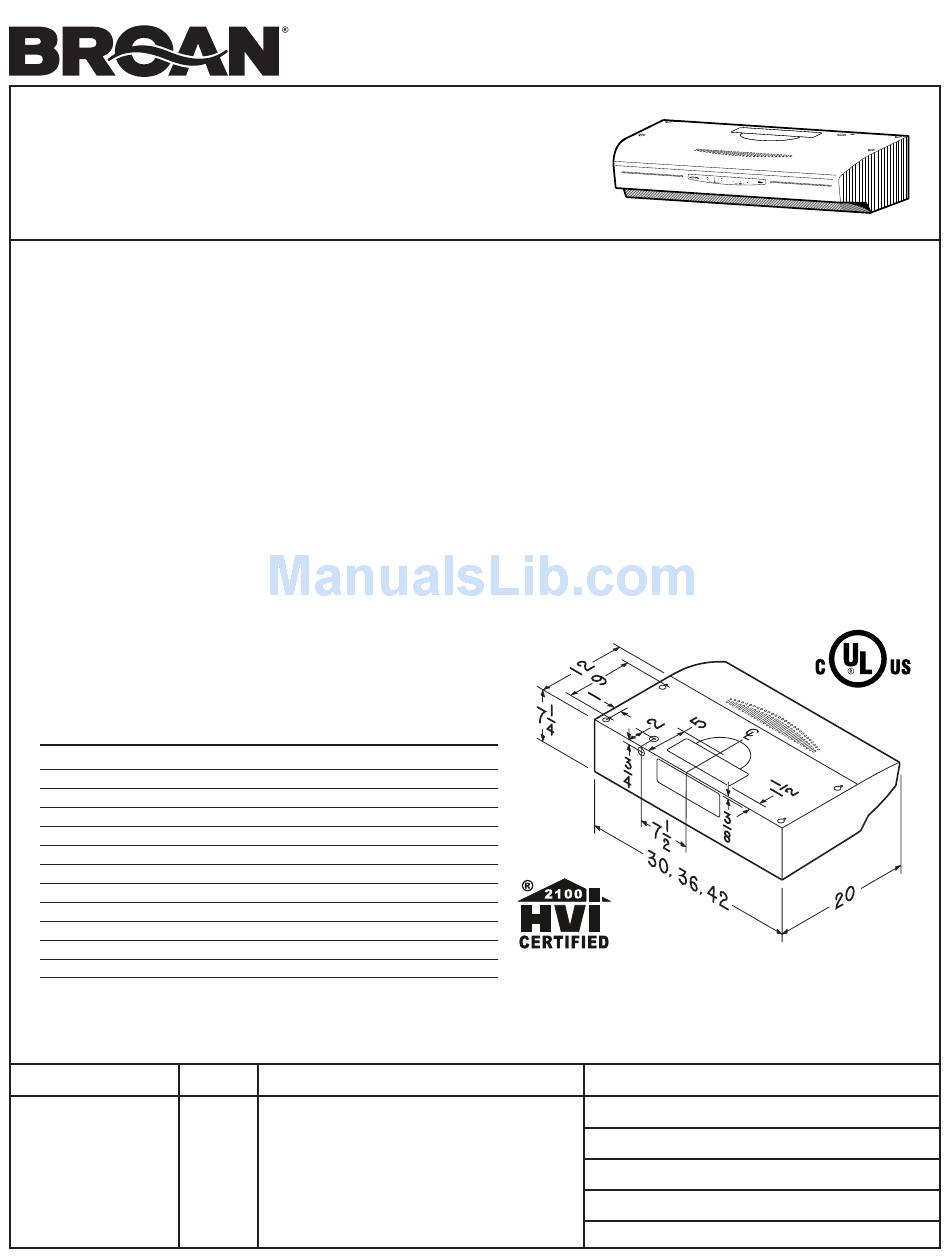

ALLURE
TM
RANGE HOOD
MODELS QS1, QS2, & QS3
Meeting customer demands for a contemporary styled
range hood that is 50% quieter than average hoods,
is easy to clean, and brightly lights the cooktop.

FEATURES

•
Clean, sleek appearance
•
Durable, baked-on polyester finish paint or brushed finish
stainless steel
•
Over 50% quieter than the average range hood
•
Exclusive DuPont Teflon
cleaning (QS2 & QS3)
•
Large, full filter design - dishwasher-safe for easy cleaning
•
Dual halogen lights provide focused lighting for unmatched
cooktop visibility as well as a soft, night-time level (lamps not
included)
•
Axial blade (QS1) or centrifugal blower (QS2 & QS3) provides
increased performance and quieter operation.
•
Flush-mounted controls
•
Versatile design allows for 3¼" x 10", 7" round, or non-ducted
discharges without re-positioning blower
•
Adjustable duct connectors - accommodate off-center duct-
work
•
CleanSense™ charcoal filters change color when replace-
ment is necessary (for non-ducted installations - purchase
separately)
•
Available in 30", 36", or 42" widths in White, Biscuit, Almond,
Black, and Stainless Steel
•
Bi-lingual carton graphics and installation manual (English/
Spanish) (English/French Canadian in Canada)
•
Broan Heat Sentry™ - automatically turns blower to high
(QS2), on or higher (QS3) when excess cooking heat is
detected

SPECIFICATIONS

Volts
H
Z
Amps
Max. cfm (horizontal)
Sones (norm.)
Sones (high)
Controls
Halogen Flood Light
Charcoal Filter
DuPont Teflon
®
Broan Heat Sentry™
* 430 cfm & 8.0 sones in Boost mode (QS3 only).
‡ Purchase separately for non-ducted installation.
Teflon is a registered
®
trademark of DuPont.
REFERENCE QTY.
, non-stick bottom cover for easy
®
MODEL
QS1 QS2
120 120
60 60
1.8 2.0
220 300
1.5 0.9
5.0 4.5
2-sp rocker 3-sp electronic
PAR20 PAR20
† †
BPSF ‡ BPSF ‡
No Yes
No Yes
2 bulbs req. (not included).
†
Broan-nuTone LLC
Broan-nuTone Canada
REMARKS

TYPICAL SPECIFICATION

Range hood shall be Broan QS1 (QS2) (QS3) Series.
Unit will have clean, contoured appearance with no sharp edges.
Finish to be baked-on polyester paint (matte finish stainless
steel). It must have a fully-enclosed bottom and dishwasher-
safe, full filters.
Hood to be convertible between 3¼" x 10" and 7" round ducted
(using two washable aluminum filters) as well as non-ducted (us-
ing two CleanSense™ filters - must be purchased separately).
Duct connectors must be adjustable to accommodate off-center
ductwork.
Range hood to have an axial blade (centrifugal blower) and
twin, 50-watt (max.) halogen flood lights. Blower and lights
shall be operated using a specially-designed, adjustable control
with 2-speed rocker (3-speed electronic push button) (4-speed
electronic, with delayed "off" and filter reminder).
Air delivery shall be no less than 220 cfm (QS1), 300 cfm (QS2),
430 cfm (QS3) when ducted horizontally. Sound level to be no
greater than 1.5 Sones/100 cfm - 5.0 Sones/220 cfm (QS1);
0.9 Sones/100 cfm - 4.5 Sones/300 cfm (QS2); 0.4 Sones/100
cfm - 4.5 Sones/300 cfm - 8.0 Sones/430 cfm in "Boost" mode
(QS3). Air and sound ratings to be certified by HVI. Unit shall
be U.L. and
QS3
120
60
3.0
300*
0.4*
4.5
4-sp electronic
PAR20
†
BPSF ‡
Yes
HVI-2100 CERTIFIED RATIngS comply with new testing technologies and procedures
Yes
prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated at 0.1 in. static pressure, based
on tests conducted in AMCA's state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory measurements.
Hartford, Wisconsin www.broan.com
Mississauga, Ontario www.broan.ca

SPECIFICATION SHEET

U.L. listed.
C
800-558-1711
877-896-1119
Project
Location
Architect
Engineer
Contractor
Submitted by
90A
LISTED
Date
99043473C
